7065iSCSI_Config1.fm Draft Document for Review August 30, 2007 12:59 am
364 IBM System Storage DS3000: Introduction and Implementation Guide

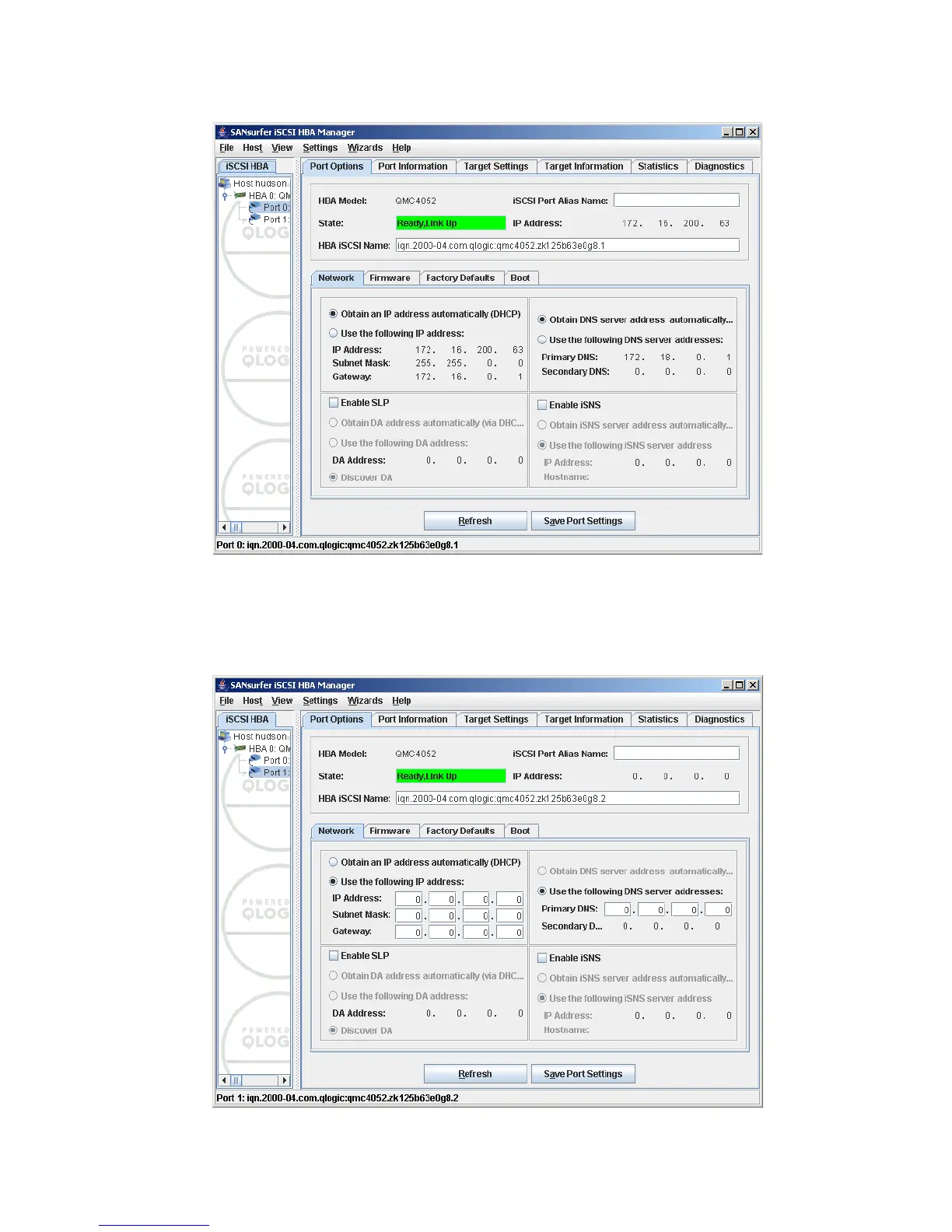

Figure 16-40 SANsurfer - Assigned DHCP address to an iSCSI port
7. Configure the IP address of the second HBA port to use later redundant paths to the
storage subsystem. Select the second port of the HBA on the iSCSI HBA tab. See
Figure 16-41.
Figure 16-41 SANsurfer - Port option - Network -Second port
