7065Admin_Enterprise.fm Draft Document for Review August 30, 2007 12:59 am
124 IBM System Storage DS3000: Introduction and Implementation Guide

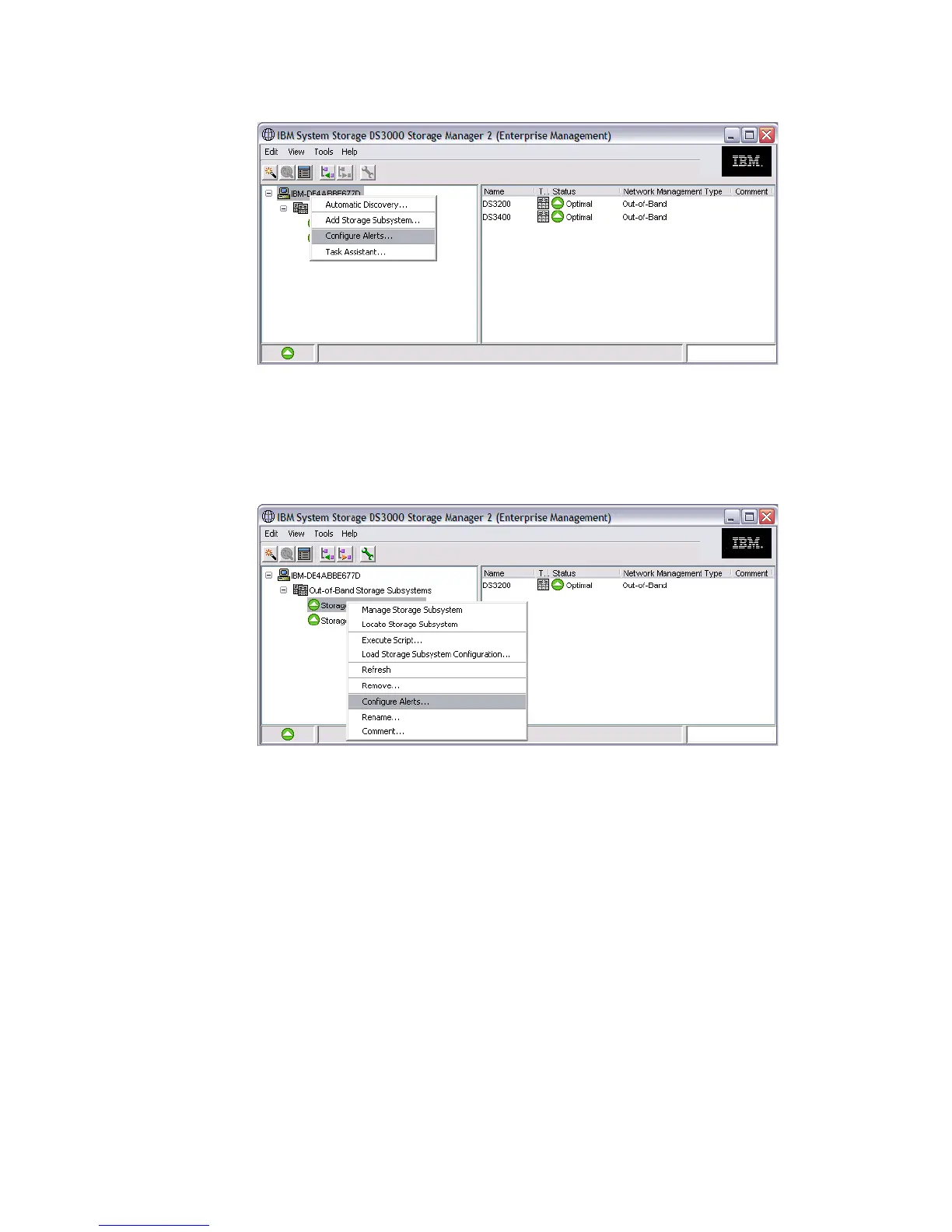

Figure 7-9 Configure Alerts for all systems
– If you see the same storage subsystem via different paths, directly attached and
through different hosts running the host agent, you receive multiple alerts. Right click a
specific storage system, to define the alerting specifically for this storage server, as
shown in Figure 7-10.
Figure 7-10 Configure Alerts for particular subsystem
–Select Configure Alerts for one or more systems and the alert window will appear.
E-mail alerts
1. To send e-mail alerts, you have to first define an SMTP server. Enter the name or IP
address of your mail server and the sender e-mail address, as shown in Figure 2 on
page 125.
