Chapter 16. iSCSI configuration 1 - Windows 2003 with QLogic QMC4052 HBA 363
Draft Document for Review August 30, 2007 12:59 am 7065iSCSI_Config1.fm
3. An address configuration requires the adapter to be reset. Figure 16-39 shows the
warning that applications accessing logical drives attached to this adapter need to be
unmounted first. Click Yes to acknowledge.

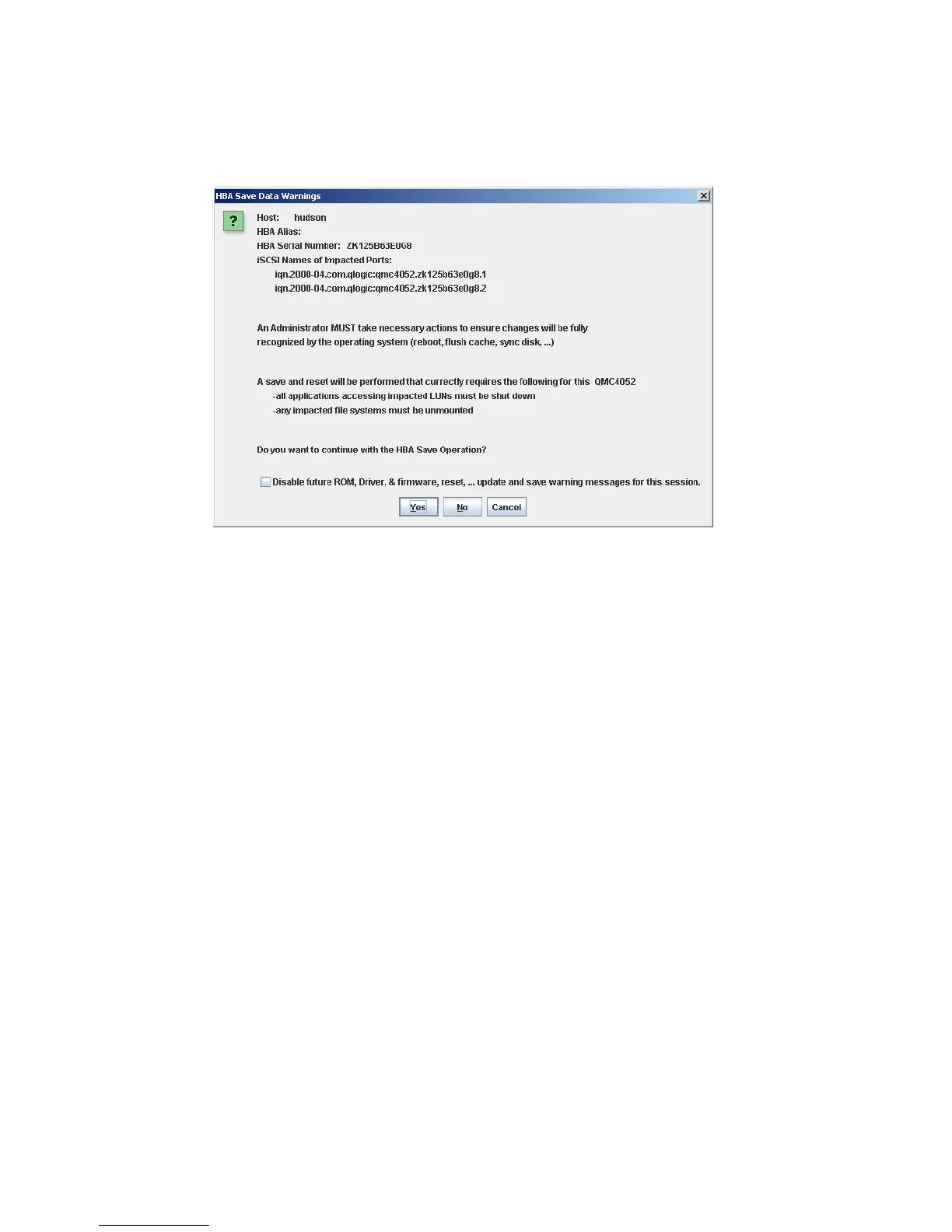

Figure 16-39 SANsurfer - HBA save data warning
4. Enter the SANsurfer password and click OK. The default password of SANsurfer is config.
5. A configuration refresh is requested after the network settings were saved. Click Yes to
refresh the configuration.
6. After the configuration refresh is done, the IP address assigned by the DHCP server is
visible. See Figure 16-40 on page 364.
