Chapter 21. FC configuration 3 - Linux SAN boot with System x 3755 513
Draft Document for Review August 30, 2007 12:59 am 7065FC_Config3.fm

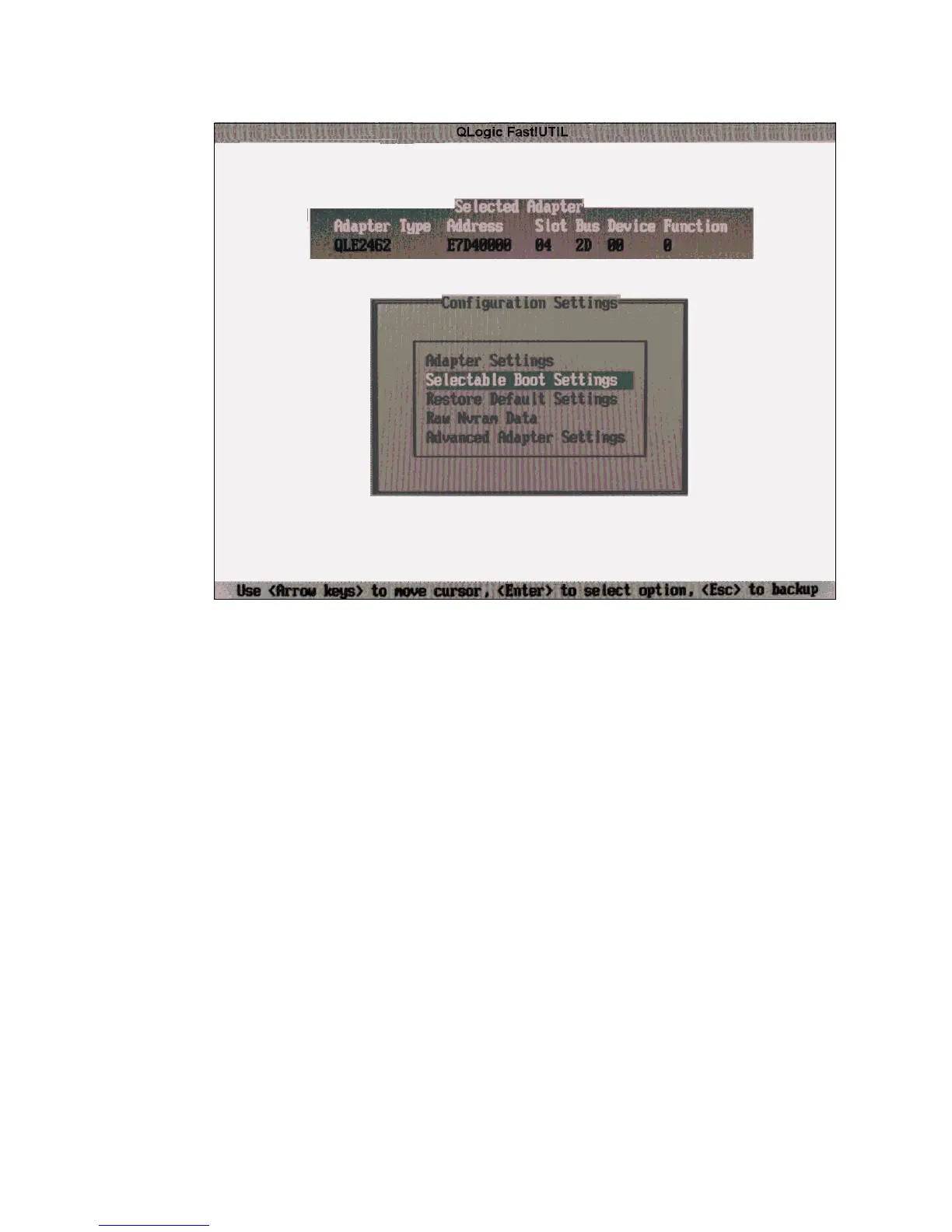

Figure 21-23 Selectable Boot Settings menu option
The Selectable Boot Settings menu displays. You need to do the following now:
1. In the Selectable Boot Settings menu, make sure the
Selectable Boot field is set to
Enabled.
2. Move the cursor to
(Primary) Boot Port Name, Lun field and press Enter. Now select the
DS3400 entry as the boot device. The controller A FC host port WWN should appear and
LUN should be 0 (see Figure 21-24).
