14.1 Equipment required
We will need the following:
System x 3755 host server, with Windows Server 2003 installed. In addition, Service Pack
1 and the Storport fix (KB916048) are also required. The hostname is COLORADO
Two PCI Express SAS HBAs, P/N 25R8060
DS3200 subsystem with at least four disk drives.
Two SAS cables.
The latest SAS HBA drivers. You can download it from the IBM Systems support Web site.
LSI Logic SAS HBA Support CD.
The latest version of DS3000 Storage Manager for Windows (2.17.35.05 at the time of
writing.

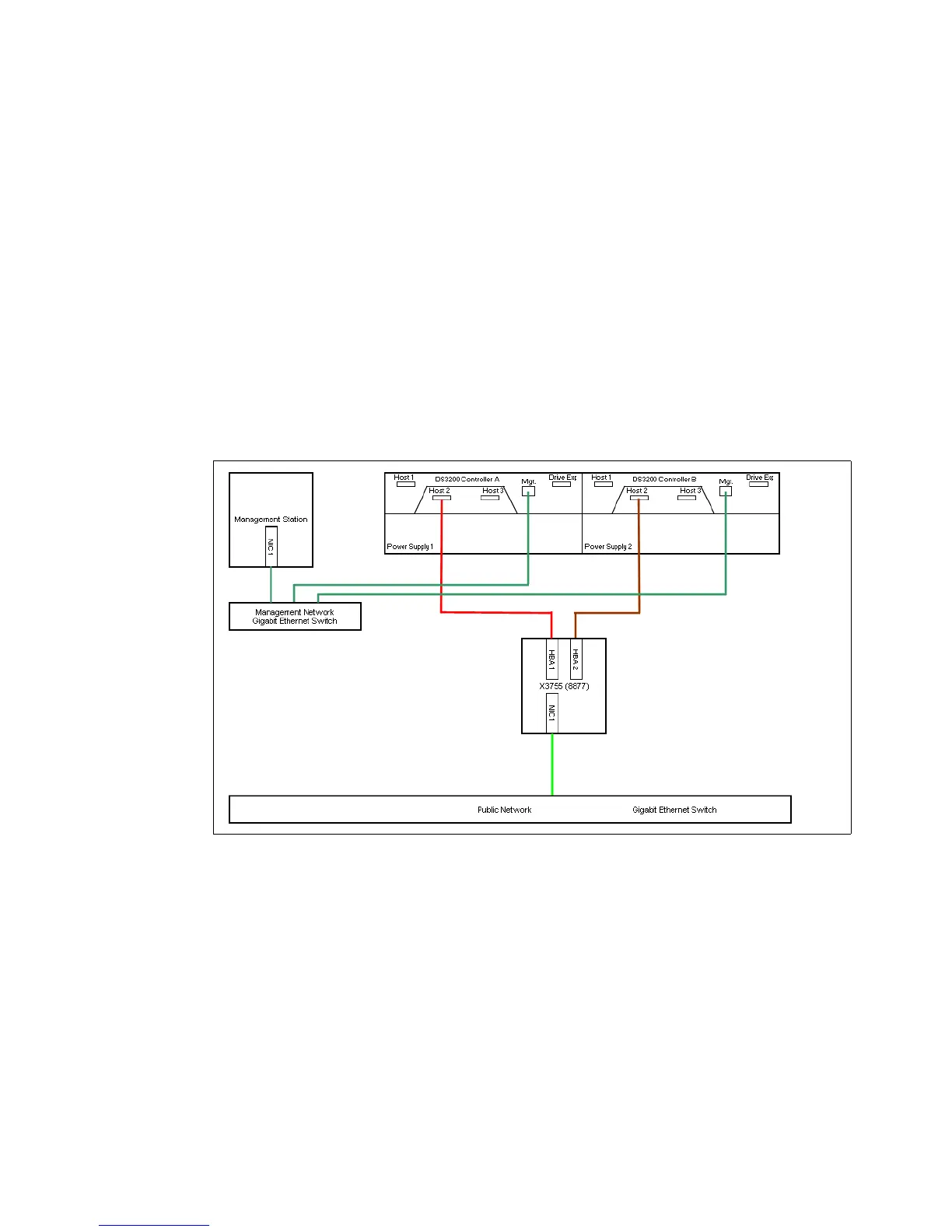

Figure 14-1 shows our sample hardware setup.
Figure 14-1 Hardware setup
14.2 Install SAS HBAs
The first step is to install our two PCI Express SAS HBAs in the x3755 server. The x3755
User’s Guide contains instructions for correct installation of these cards. When the HBAs are
installed, we then use two SAS cables to attach each HBA to a separate controller on the
DS3200.
We can power on the server and configure the DS3000 storage subsystem.
