7065SAS_Config1.fm Draft Document for Review August 30, 2007 12:59 am
326 IBM System Storage DS3000: Introduction and Implementation Guide

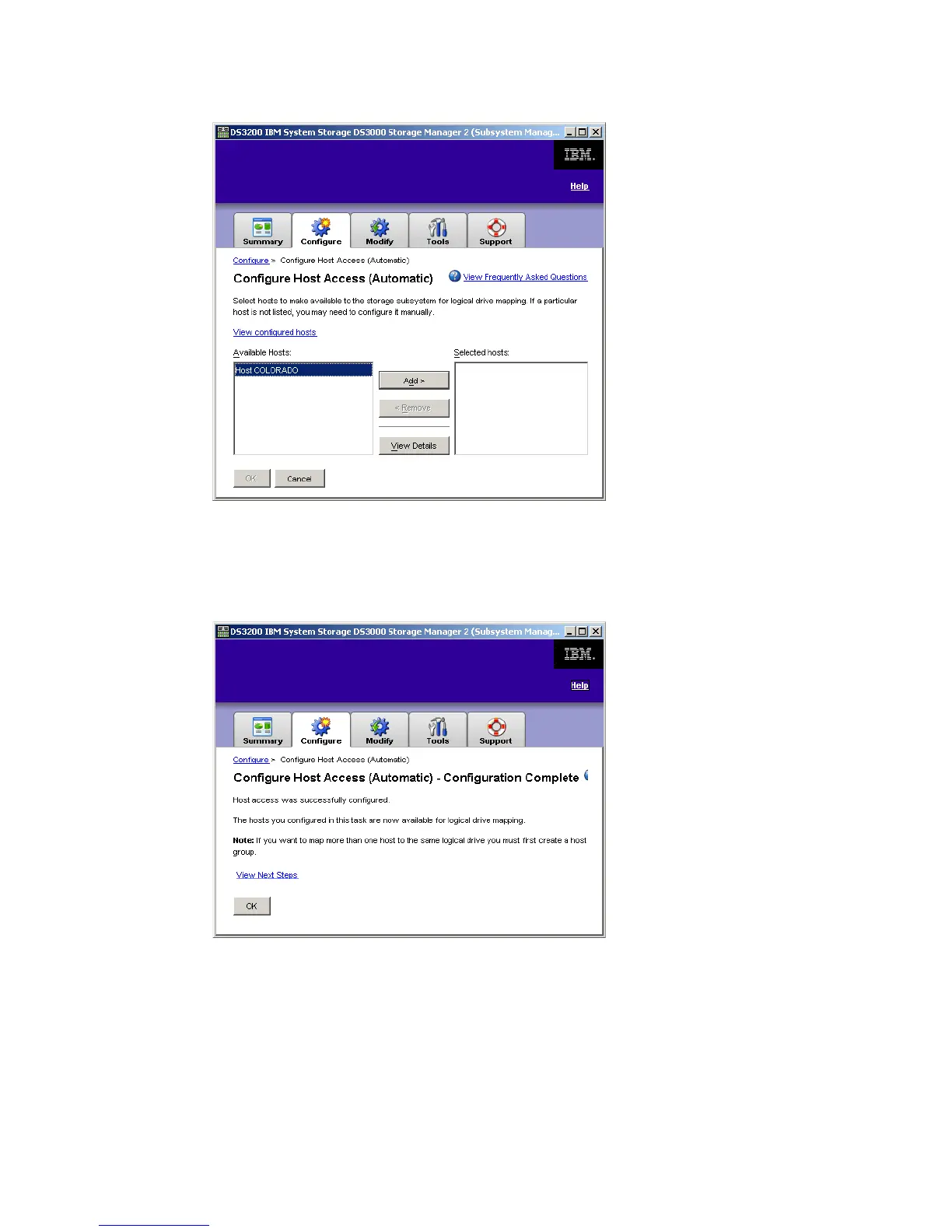

Figure 14-10 Configure Host Access (Automatic)
3. Click Add to place the host in the Selected Hosts window, then click OK. This completes
the automatic host configuration. Figure 14-11 confirms that our configuration was
successful.
Figure 14-11 Automatic host configuration is complete
4. Let’s verify the host server definition. We expect to see two HBA host ports, as the server
contains two SAS HBAs.
We use the
Edit Topology task. As you can see in Figure 14-12, the host server
COLORADO definition indeed contains two SAS HBA host ports, with their identifiers.
SAS HBAs use
Physical SAS addresses as HBA identifiers.
