16.7 Configure iSCSI targets on the host
The DS3300 is now configured. We now want to configure access for the iSCSI HBA to the
defined logical drives. To set up this access, do the following.
1. Start SANsurfer, select the first port from the HBA, as shown in Figure 16-37 on page 362,
and click Target Settings. A window similar to Figure 16-43 on page 366 will display,
showing a list of all discovered targets.

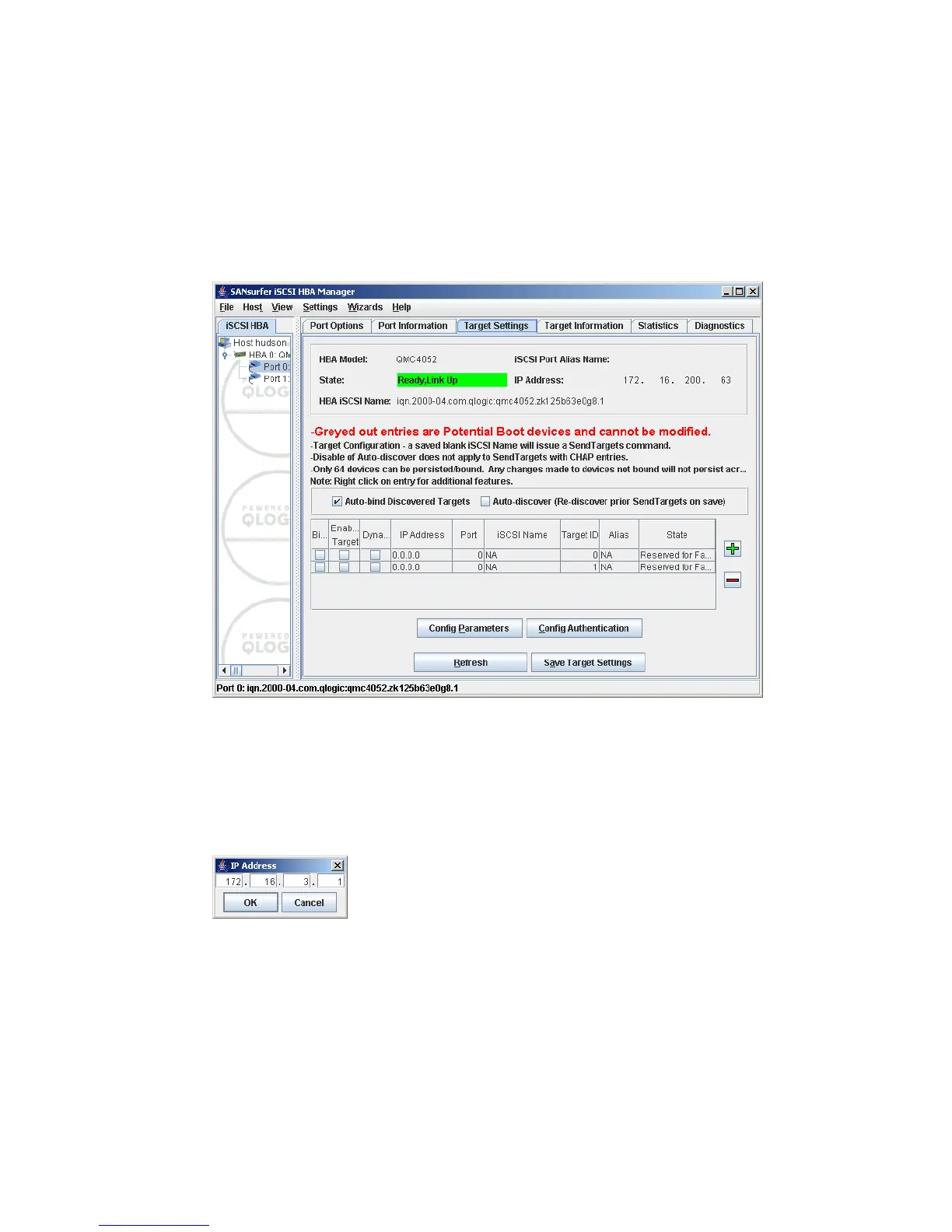

Figure 16-46 SANsurfer - Target settings
2. There are currently no targets defined in the target list. Click the green plus sign to add a
new target. A dialog opens to specify the IP address of an iSCSI portal. This example here
uses the first iSCSI port IP address of the first controller in the DS3300 as shown in
Table 16-1 on page 342. This was configured on the DS3000 in 12.2.3, “Configure iSCSI
Host Ports” on page 276. Enter the address and click OK. See Figure 16-47.
Figure 16-47 SANsurfer - iSCSI portal IP address
3. A target is added to the list. with the specified address, which will be used to discover the
specified target and return a list of LUNs. The text “Not saved” in the State column for the
new target indicates that this configuration modification was not yet saved. Click Save
Target Settings to save the target settings. See Figure 16-48.
