7065SAS_Config1.fm Draft Document for Review August 30, 2007 12:59 am
330 IBM System Storage DS3000: Introduction and Implementation Guide
This task is done by the Initialize and Convert Disk Wizard. When the wizard finishes, the
Disk Management applet looks similar to Figure 14-17.

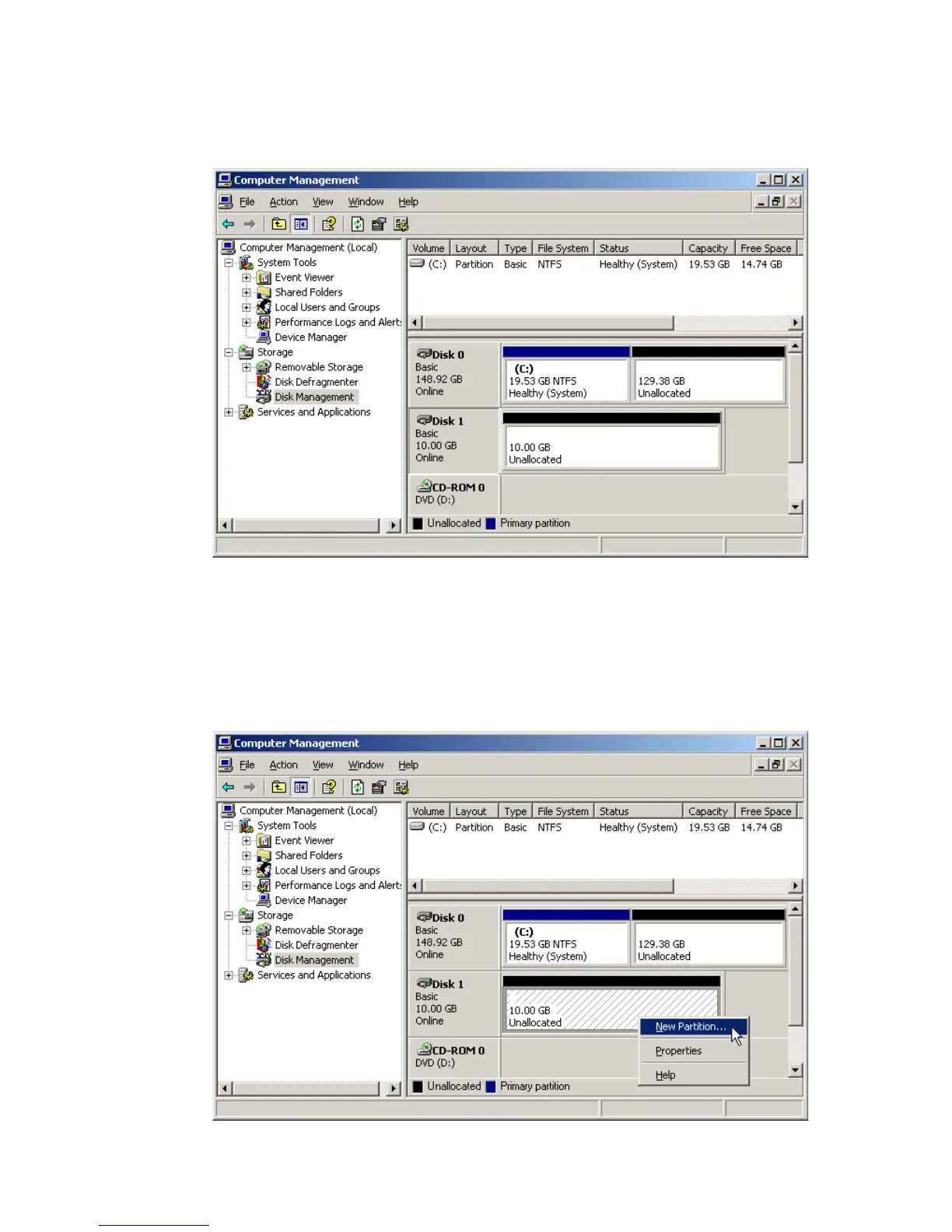

Figure 14-17 Disk Management applet - initialized disk
As you can see, our 10 GB logical drive is recognized as Disk 1, but it does not contain
any partition yet - it is Unallocated.
2. Create and format a partition.
Right-click in the unallocated disk space and select New Partition... from the context
menu (Figure 14-18).
Figure 14-18 Creating a new partition
