7065Admin_Summary.fm Draft Document for Review August 30, 2007 12:59 am
202 IBM System Storage DS3000: Introduction and Implementation Guide

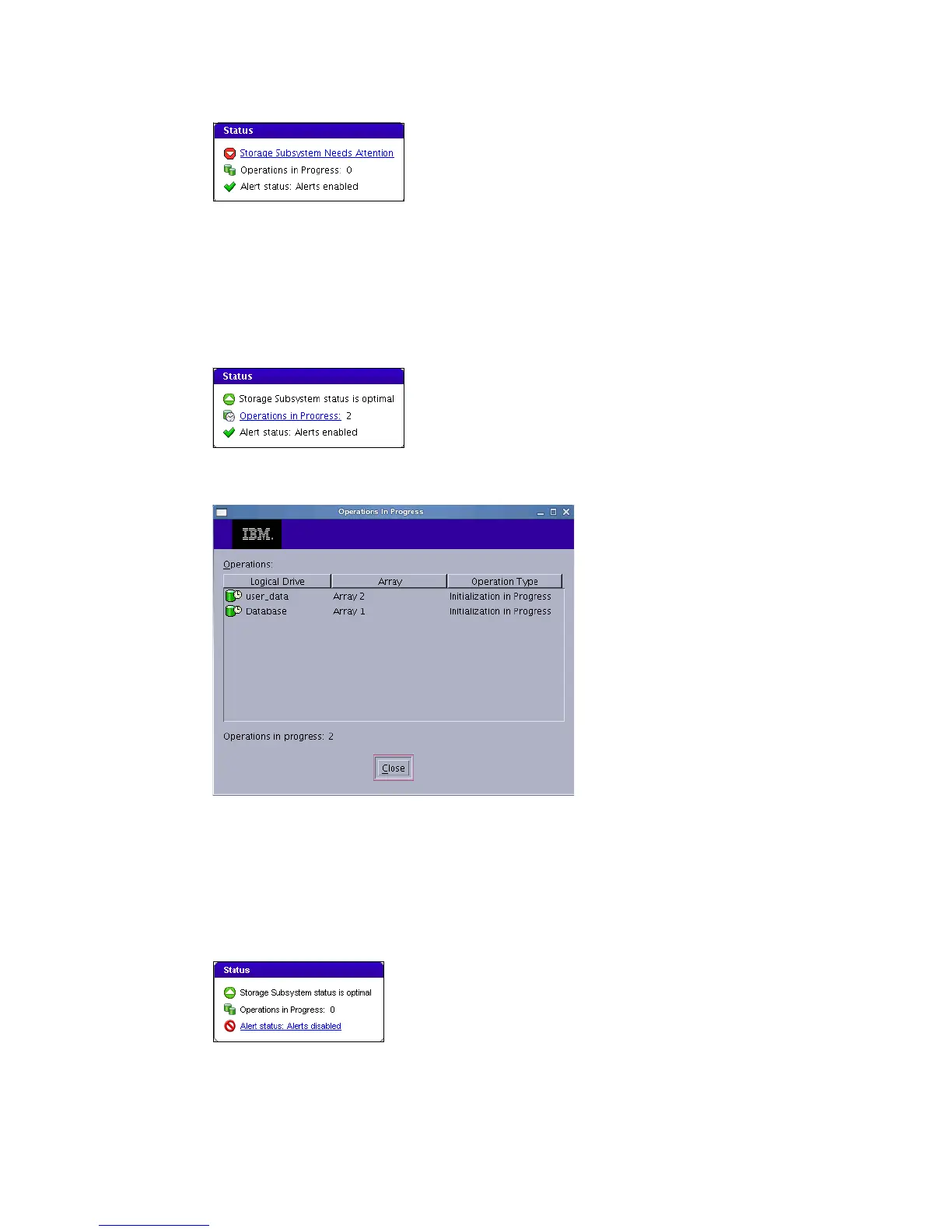

Figure 9-4 Status box - needs attention
9.1.2 Operations in Progress
The second line shows operations that are currently in progress (Figure 9-5). If there is at
least one operation in progress you can click the link to display a window with more detailed
information (Figure 9-6).
Figure 9-5 Status Box - operations in progress / alerts enabled
Figure 9-6 Detailed Progress information
9.1.3 Alert Status
The third line of the box shows if there is an alert configuration enabled. If alerts are
configured this line looks like Figure 9-5. If there are currently no alerts configured it looks like
Figure 9-7. “Configure Alerts” on page 123 describes how to enable alerts.
Figure 9-7 Status Box - alerts disabled
