Chapter 8. Administration - Configure 181
Draft Document for Review August 30, 2007 12:59 am 7065Admin_Configure.fm

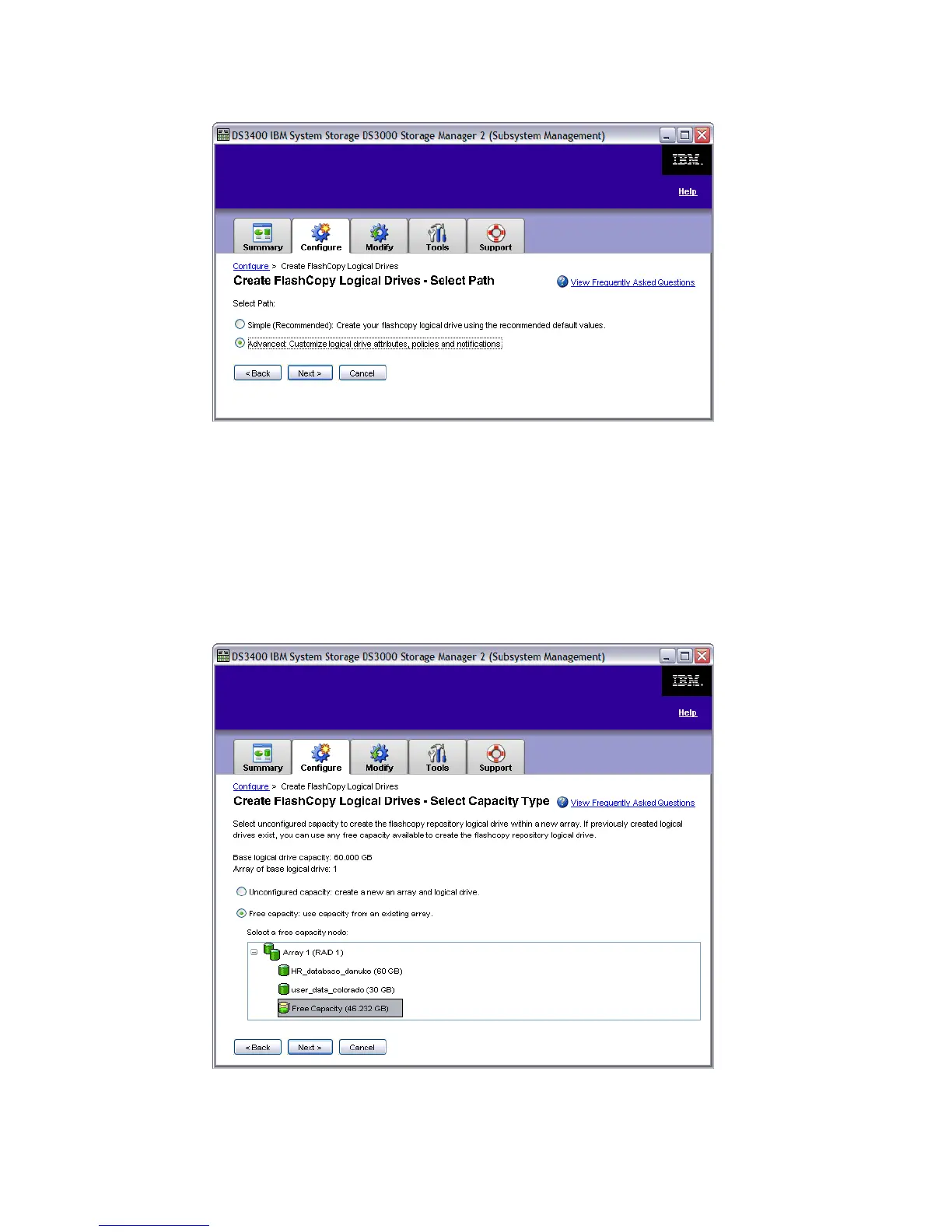

Figure 8-63 FlashCopy - Advanced Path
2. The Specify Logical Drive Names windows appears, the same as Figure 8-60 on
page 178, with the same naming conventions. If required, edit the names and click Next.
3. The Select Capacity Type view will appear (Figure 8-64). You can configure your
FlashCopy repository logical drive to reside in any array. However, to make it easier to
move disk drives, put the FlashCopy repository logical drive in the same array as the base
logical drive. When you do this, if disk drives associated with the array are moved to
another storage subsystem, all logical drives associated with the FlashCopy logical drive
also reside in that group. Also, no more disk drives need to be moved.
Figure 8-64 FlashCopy - Select Capacity Type
