7065DS3KBasicConfig.fm Draft Document for Review August 30, 2007 12:59 am
76 IBM System Storage DS3000: Introduction and Implementation Guide
recommend manually configuring the storage subsystem instead. Detailed instructions for
manual storage subsystem configuration of arrays and logical drives are given in 4.4.6,
“Configure storage subsystem (manual)” on page 78.
Create host-to-logical-drive mappings
This task allows us to map a host server or a group to the logical drives we just created.
1. Select the host server (or a group) which you want to map to the drives, as shown
Figure 4-39.

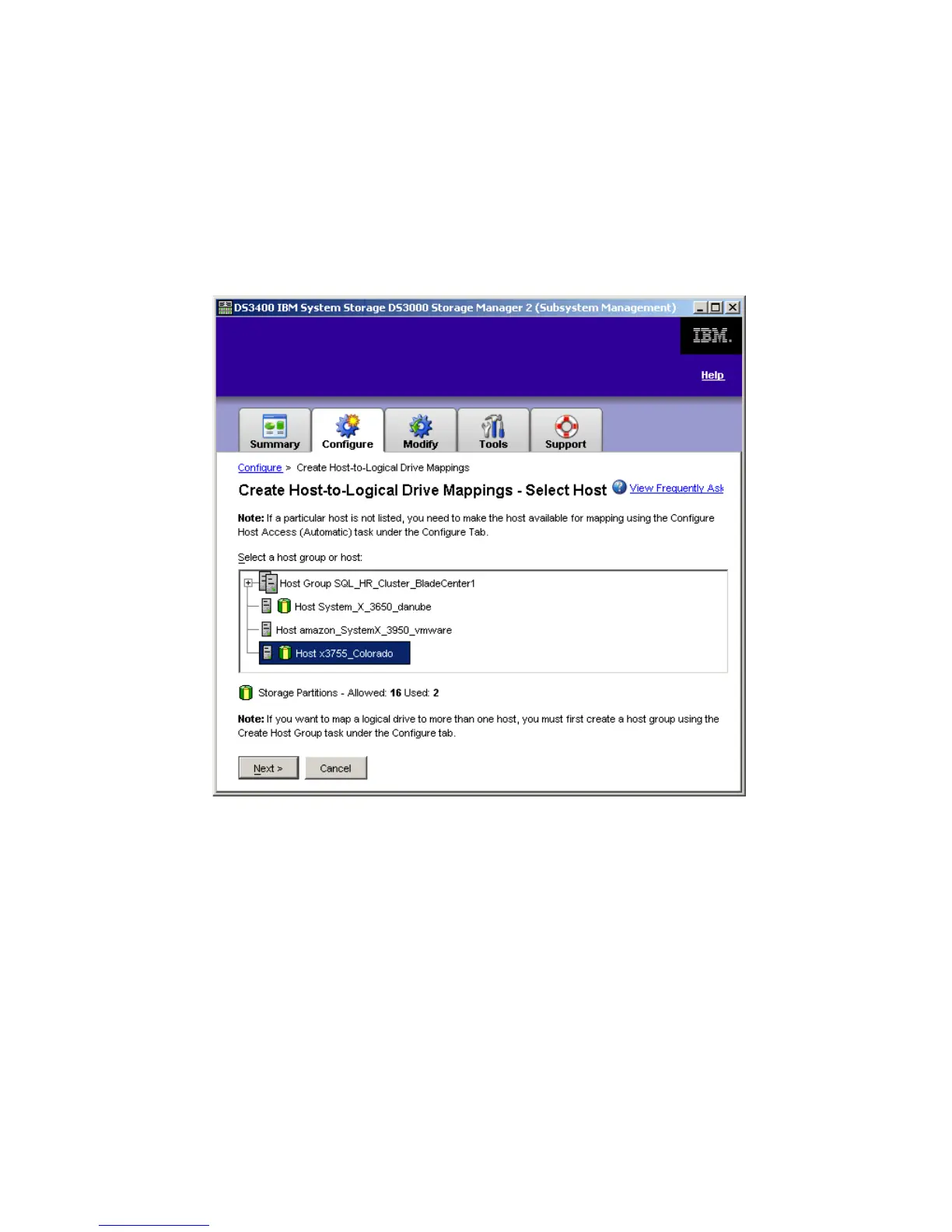

Figure 4-39 Create Host-to-Logical Drive Mappings - Select Host
In our case, we select the host server x3755_Colorado. and click Next.
2. Select one or more logical drives to map to the host or group. We selected both the logical
drives just created, called 3 and 4 (see Figure 4-40).
