7065Admin_Configure.fm Draft Document for Review August 30, 2007 12:59 am
166 IBM System Storage DS3000: Introduction and Implementation Guide

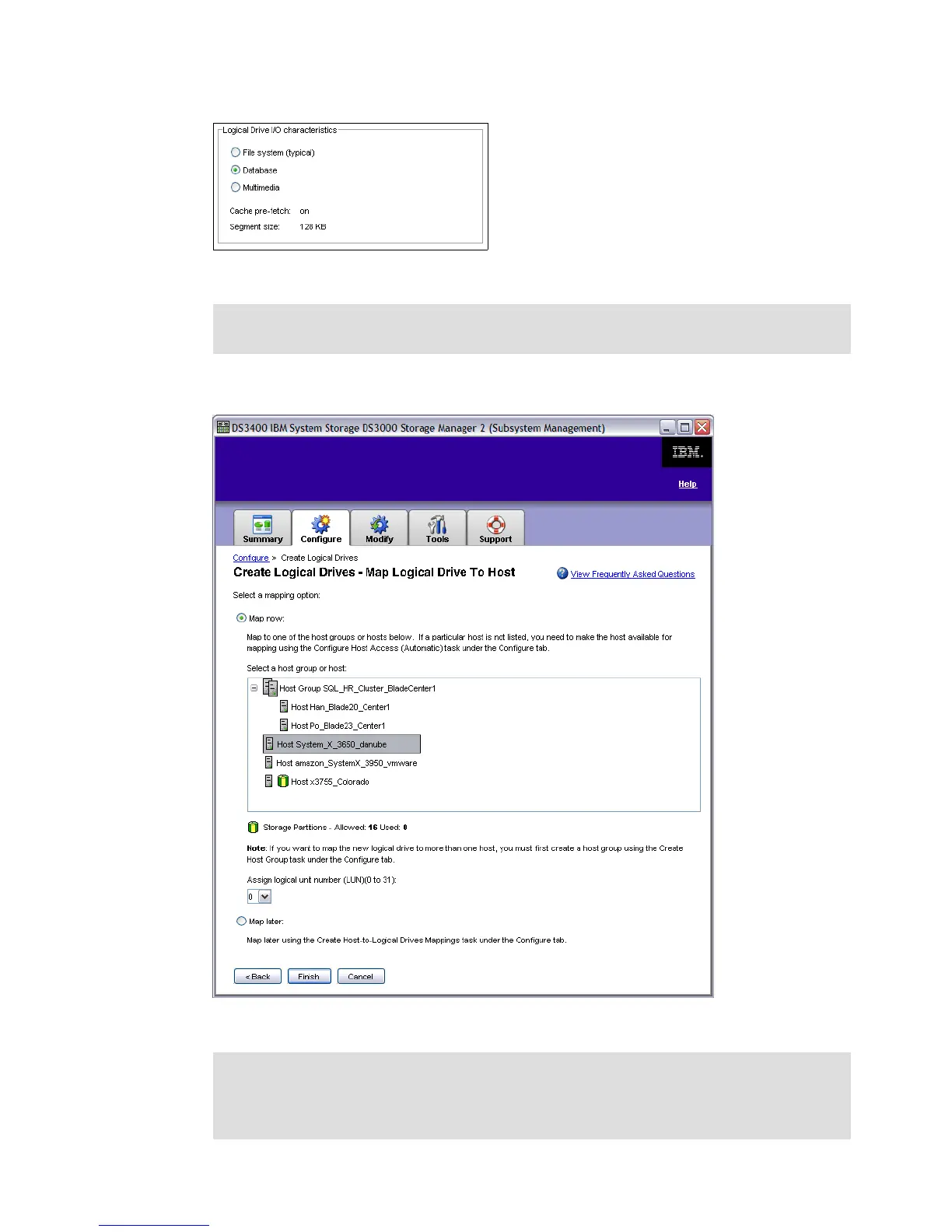

Figure 8-48 Logical Drive I/O characteristics
6. The drive is now created - you can map it to a host or host group, (Figure 8-49).
Figure 8-49 Map Logical Drive to Host
Note: If required for performance tuning, you can later change the segment size to other
values using the CLI (set LogicalDrive command)
Note: If you do not want to map the drive yet, select the Map Later option and click Finish
to save your configuration. You can map logical drives while creating a host (8.2,
“Configure hosts” on page 142) or map them at a later point (8.6, “Create Host to Logical
Drive Mappings” on page 193).
