7065Admin_Support.fm Draft Document for Review August 30, 2007 12:59 am
314 IBM System Storage DS3000: Introduction and Implementation Guide
The two upper areas (Summary and Details) give an overview of the problem detected. The
larger pane below (Recovery Procedure) provides a detailed problem description and actions
to resolve this problem.

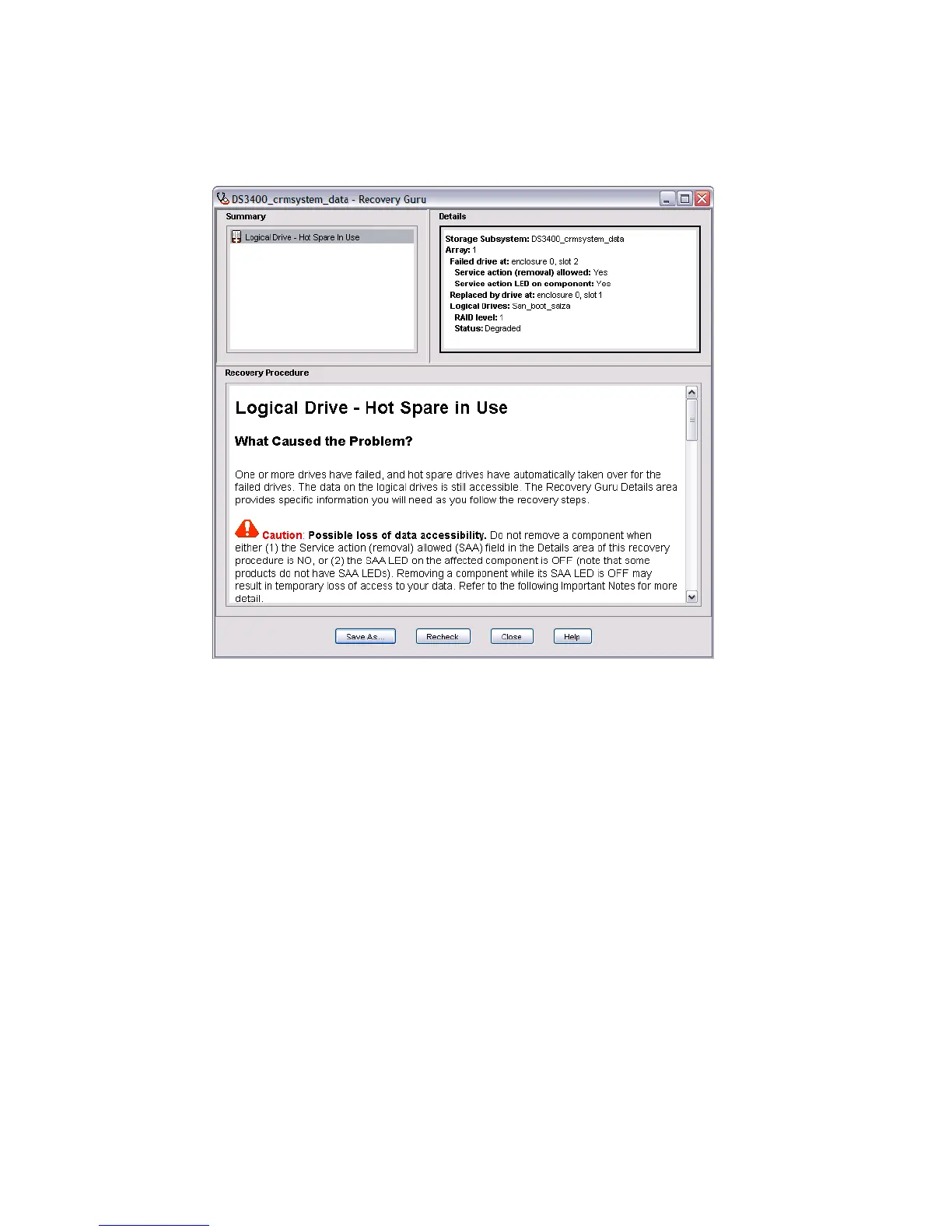

Figure 13-48 Recovery Guru
The example in Figure 13-48 is because of a failed hard drive. The Summary pane indicates
that one logical drive has a problem, and that a hot spare drive is in use for this logical drive.
The details box provides more details - the actual drive which has failed (enclosure 0 at slot
2), which hot spare is being used as the replacement active, and which logical drives are
affected.
The Recovery Procedure box shows a detailed description of the problem. Read this
information - then perform the recommended steps to resolve the problem (Figure 13-49 on
page 315).
