7065Admin_Support.fm Draft Document for Review August 30, 2007 12:59 am
288 IBM System Storage DS3000: Introduction and Implementation Guide
View the Event Log
Click View Event Log (Figure 13-1 on page 286) to display the events in the log
(Figure 13-2).

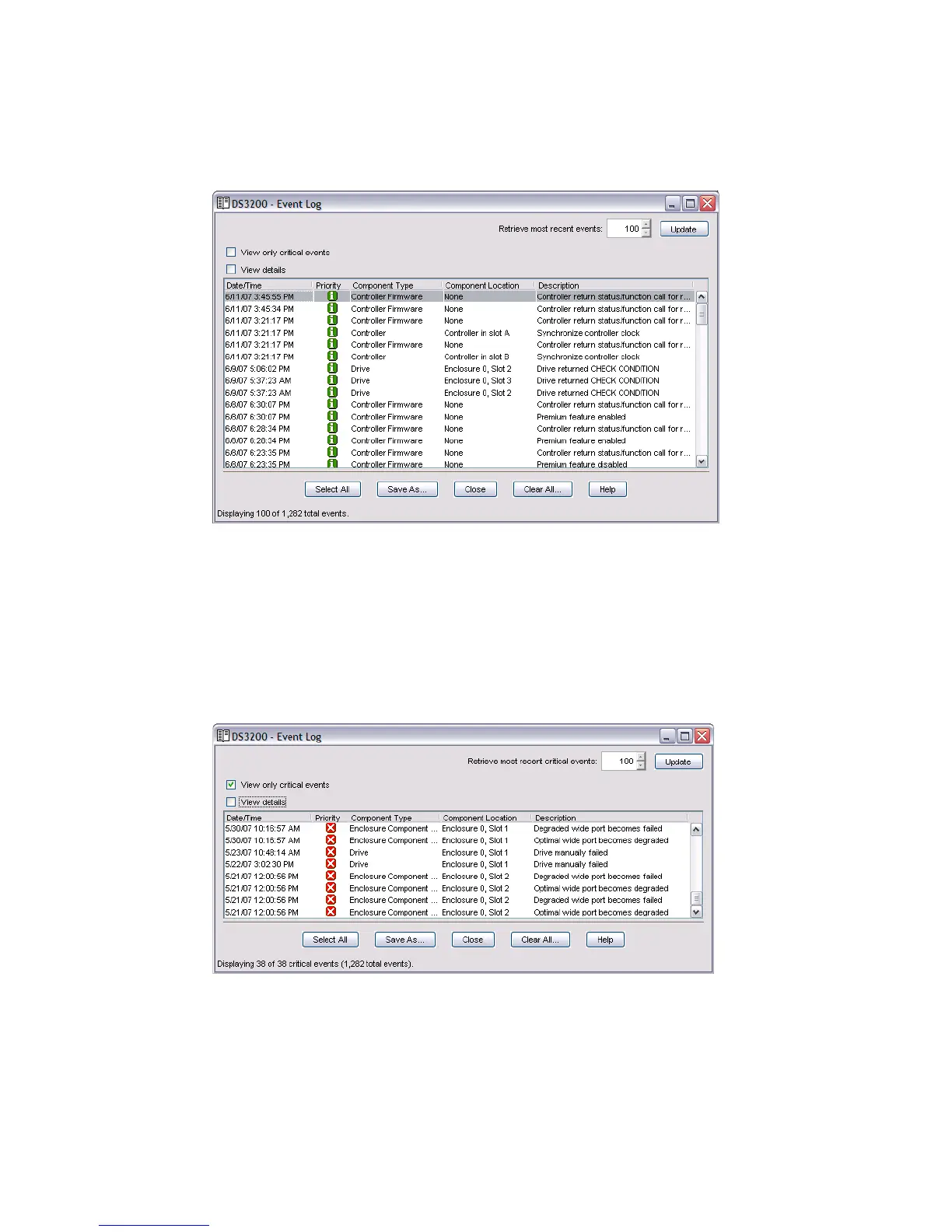

Figure 13-2 Event Log
In the right upper corner, you can set how many events to display - the default value is 100. To
change this enter another value and click Update. The bottom line of the window shows the
total number of events stored on the subsystem.
In the left upper corner are two check boxes:
View only critical events
Check this to display only the critical events. as in Figure 13-3.
Figure 13-3 Event Log - Show Critical Events only
View details
Check this to show details of a selected event, as in Figure 13-4 on page 289.
