Chapter 19. FC configuration 1 - Emulex HBA boot BladeServer from SAN 445
Draft Document for Review August 30, 2007 12:59 am 7065FC_Config1.fm
)

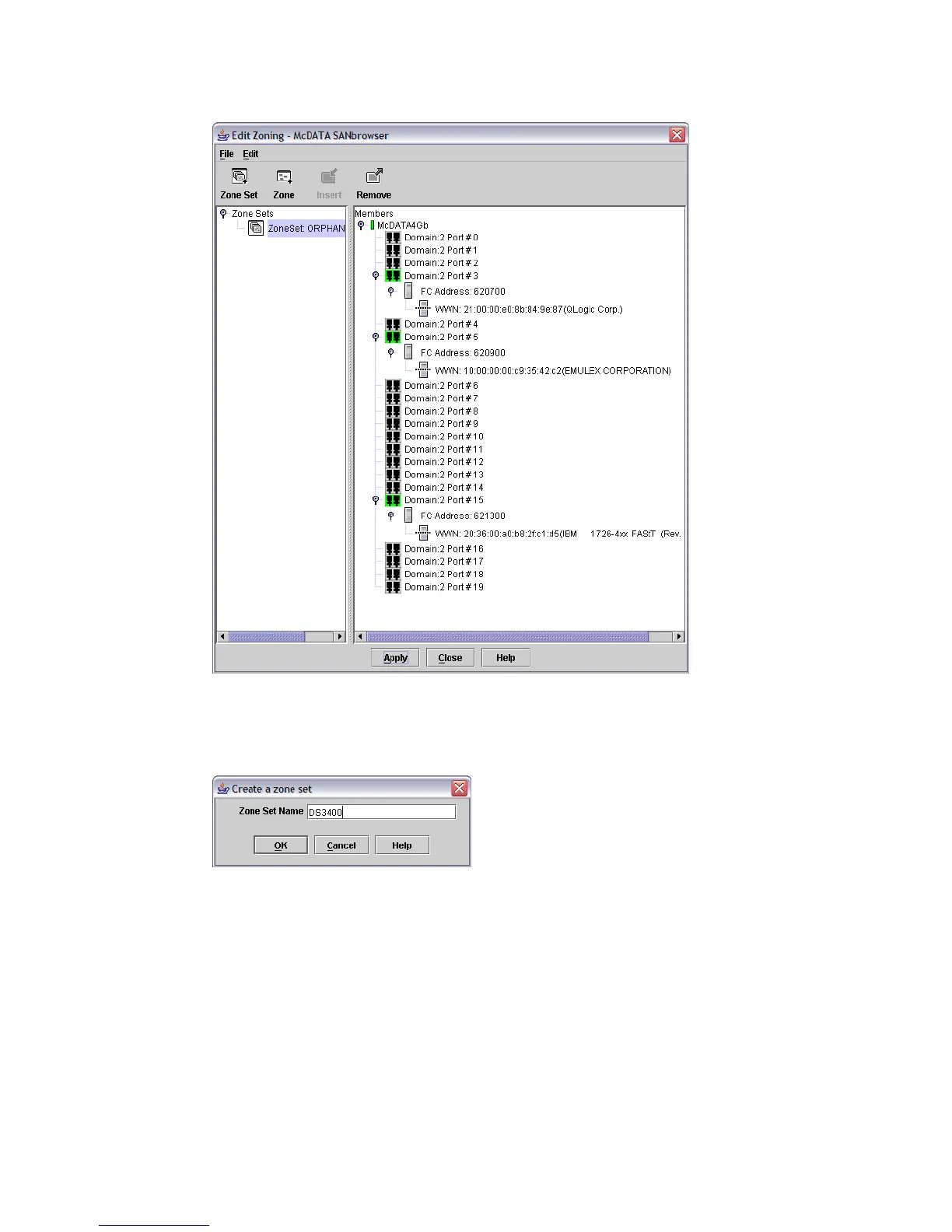

Figure 19-4 Edit Zoning
2. Select Edit → Create Zone Set from the menu bar. The “Create Zone Set” window
appears (Figure 19-5). Enter a name for the new zone set and click OK.
Figure 19-5 Create a zone set
3. The zone set appears in the right column (Figure 19-6). Right-click it and select Create a
Zone.
