7065FC_Config1.fm Draft Document for Review August 30, 2007 12:59 am
444 IBM System Storage DS3000: Introduction and Implementation Guide

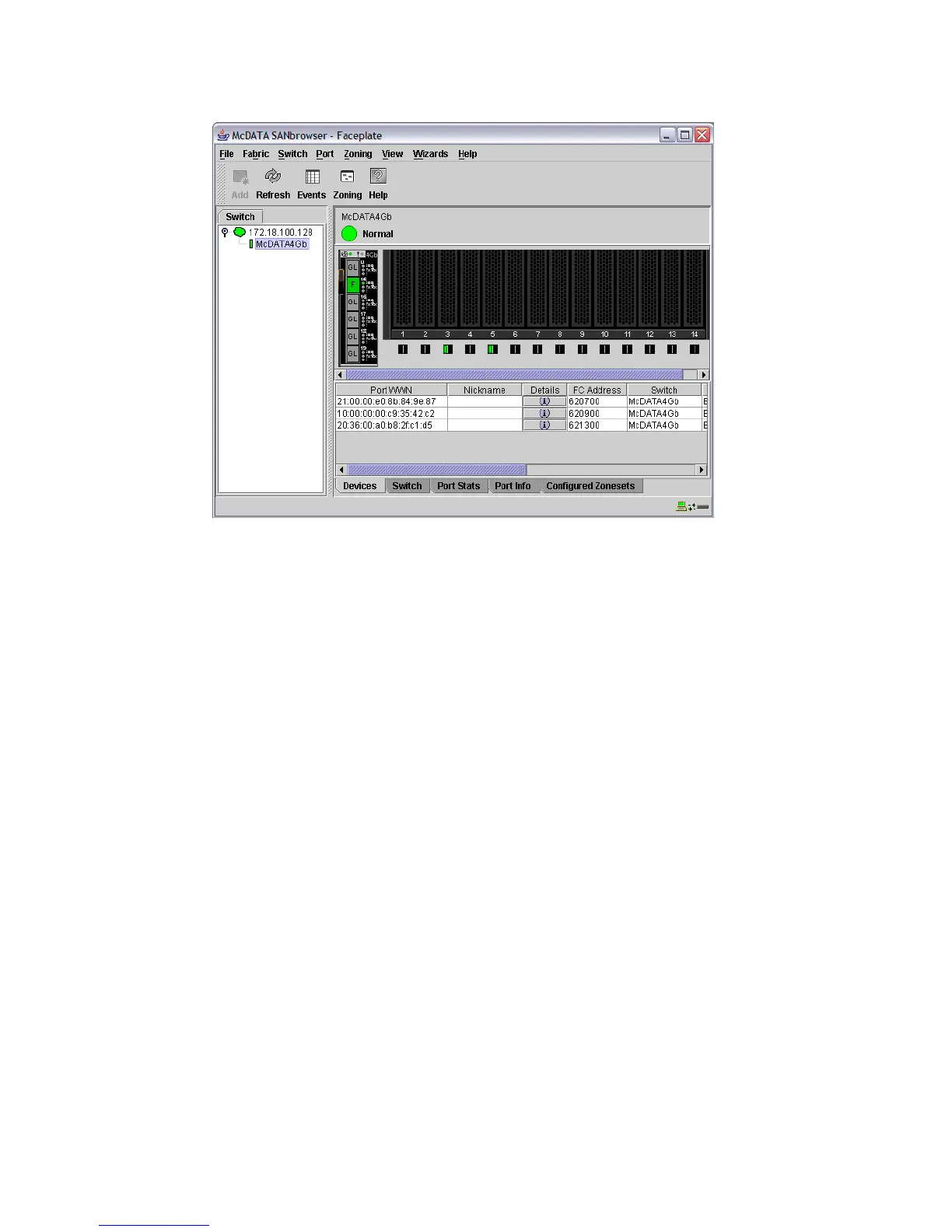

Figure 19-3 McData SANbrowser - Faceplate
This view displays all the WWNs attached to this switch. If you do not already know the WWN
of your Blade HBA see 8.1.2, “Preparations on the host server” on page 136.
1. Select Zoning → Edit Zoning from the menu bar to open the Zoning configuration
(Figure 19-4
