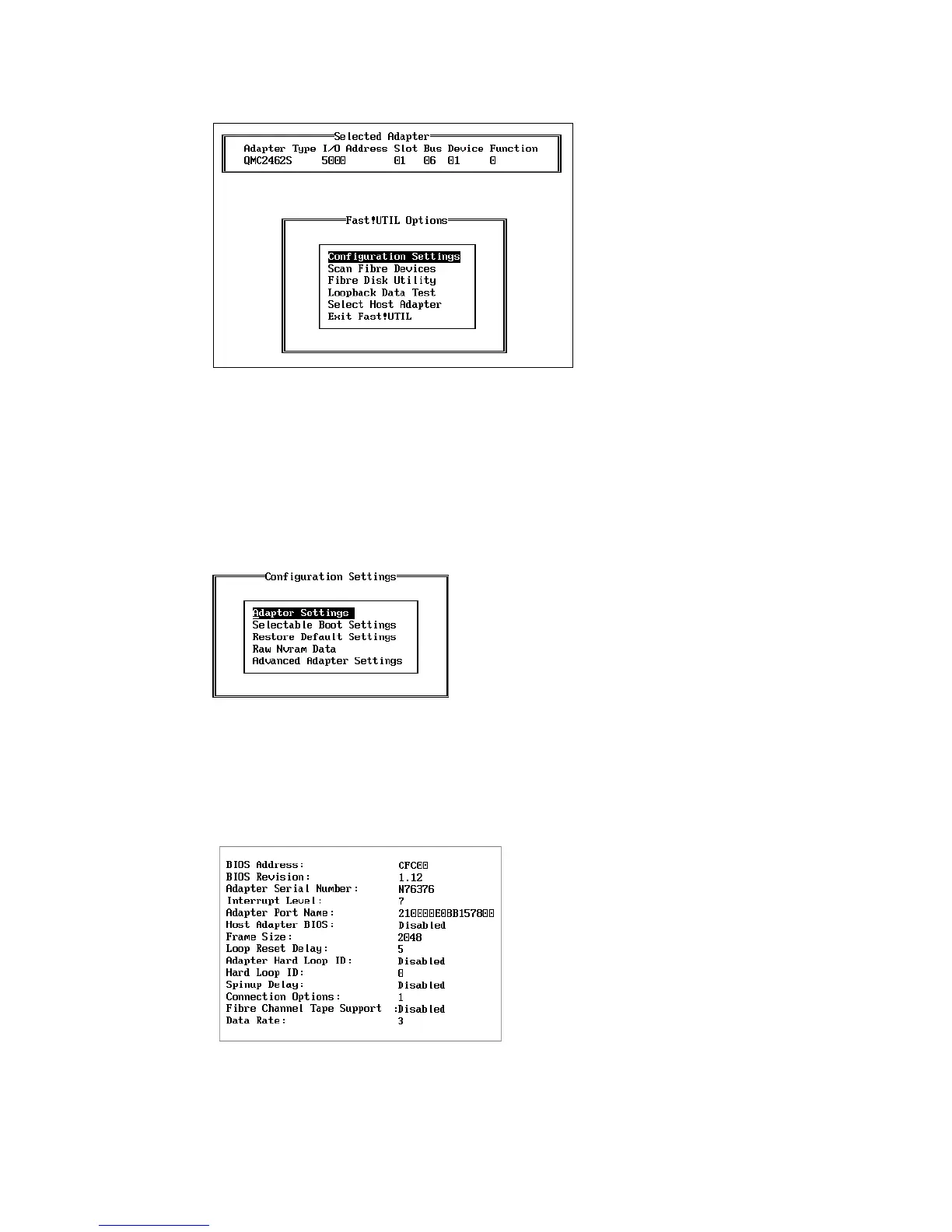

Figure 8-3 QLogic - Adapter Menu
This ports menu is for configuring the HBAs port. In this book we will not cover all possible
FC HBA settings, only the most important ones for a basic setup to connect to your
DS3000 storage subsystem. If you are familiar with FC environments you will have your
own procedures to implement the DS3000 storage servers in your environment.
4. You need to find out the WWN of your FC port. The WWN is the unique identifier, which
will be seen by the DS3000. Select Configuration Settings and in the next submenu
Adapter Settings (Figure 8-4).
Figure 8-4 QLogic - Configuration Submenu
5. The Adapter Settings are displayed (Figure 8-5). The entry Adapter Port Name shows the
WWN of this port. Record this WWN with the associated HBA (port) number and host -
you will need it for later configuration steps. In our example, the WWN port number is
210000E0B157800.
Figure 8-5 QLogic - WWN
6. If your server has more than one port, (more than one HBA or a dual port HBA), press
ESC until you return to the QLogic Adapter menu (shown in Figure 8-3 on page 138).
Highlight the Select Host Adapter Line and press Enter to return to the Select Host
To Next Page
