Chapter 10. Administration - Modify 221
Draft Document for Review August 30, 2007 12:59 am 7065Admin_Modify.fm
10.3.1 Rename Logical Drives
Throughout this book, we have highly recommended using meaningful names for storage
subsystem components, in order to make identification and management easier.
To rename a logical drive click Rename Logical Drives to start the wizard, (Figure 10-12).
Expand the arrays and select the logical drive you want to rename. Type the new name in the
“Name” field and click Rename. The selected logical drive will be renamed immediately. To
rename another logical drive, select another drive, otherwise click Close.

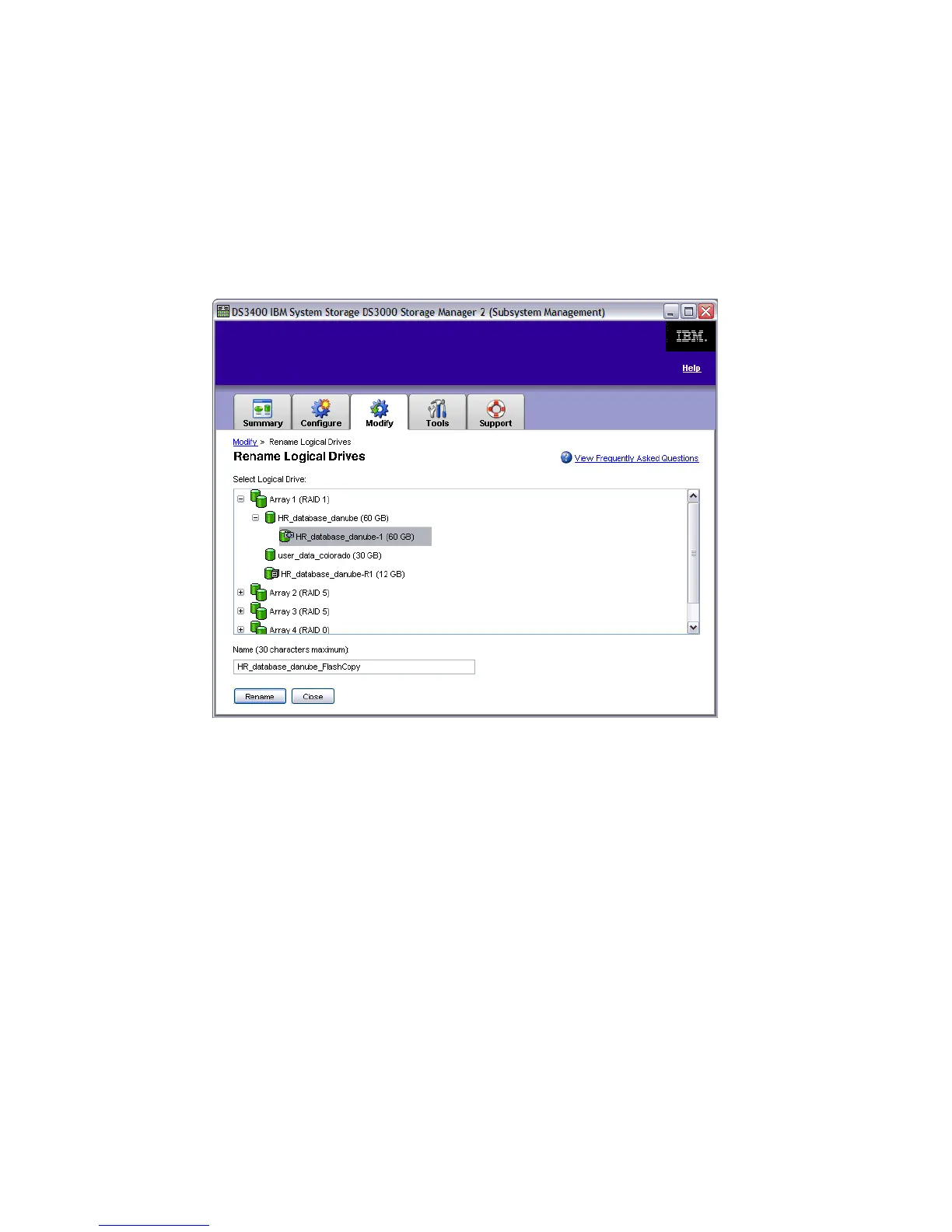

Figure 10-12 Edit Topology - Rename logical drive
10.3.2 Delete Logical Drives
Click this option to remove arrays or logical drives from your system. The Delete Logical
Drives view appears, (Figure 10-13 on page 222). Highlight the logical drive or array you
want to delete and click Delete to remove it from the system.
