7065Admin_Configure.fm Draft Document for Review August 30, 2007 12:59 am
162 IBM System Storage DS3000: Introduction and Implementation Guide

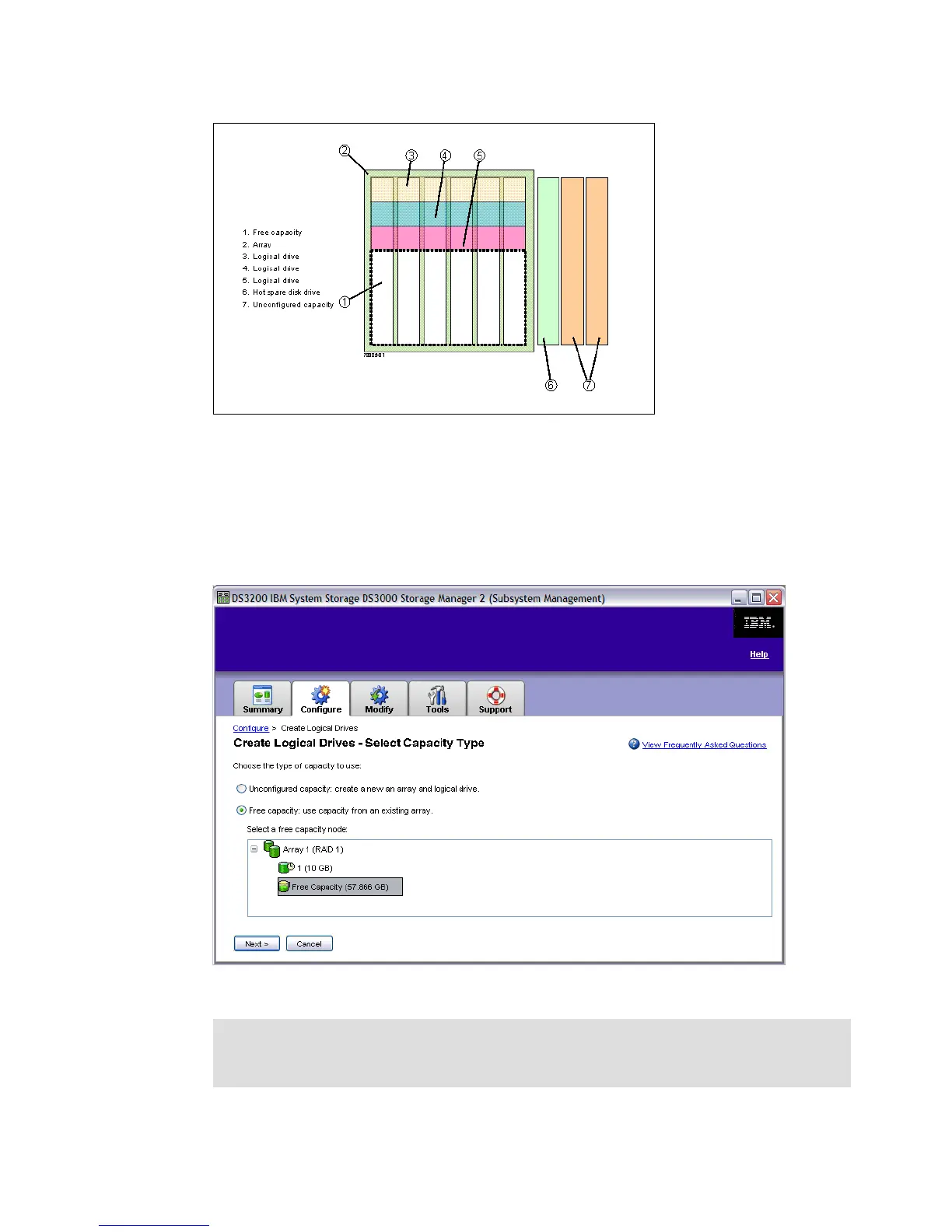

Figure 8-42 Array and Logical Drive configuration
With the Create Logical Drives wizard (Figure 8-14 on page 143) you can:
create arrays and logical drives from unconfigured capacity
use free capacity in existing arrays to create logical drives
To start, click Create Logical Drives. You will see two options, (Figure 8-43).
Figure 8-43 Select Capacity Type
Note: If you are configuring a new system from scratch, you will not see this selection
because you have not created any arrays. You will skip straight to the Automatic or Manual
selection for Unconfigured capacity (Figure 8-44).
