7065Admin_Support.fm Draft Document for Review August 30, 2007 12:59 am
300 IBM System Storage DS3000: Introduction and Implementation Guide

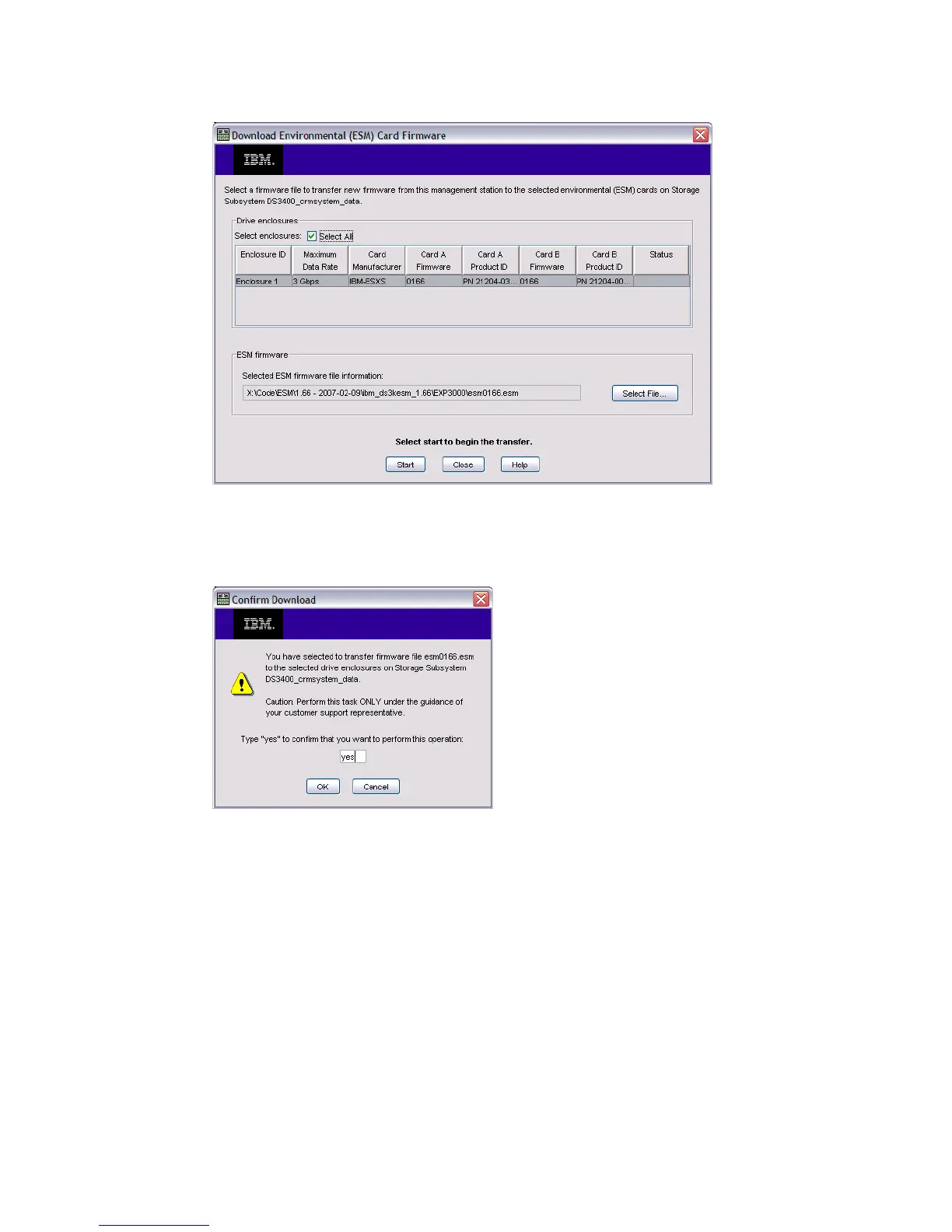

Figure 13-20 Download Environmental (ESM) Card Firmware - Start
3. The Confirm Download window will appear. Read the information, confirm it with yes and
click OK to start the update (Figure 13-21).
Figure 13-21 Confirm Download
4. The status field in the Select enclosures table changes from pending to downloading while
the ESM card firmware upgrade progresses. Monitor the progress and completion status
of the download.
Download Controller Firmware
1. To update the controller firmware click Download Controller Firmware from Figure 13-17
on page 297). Figure 13-22 appears.
