7065iSCSI_Config1.fm Draft Document for Review August 30, 2007 12:59 am
354 IBM System Storage DS3000: Introduction and Implementation Guide

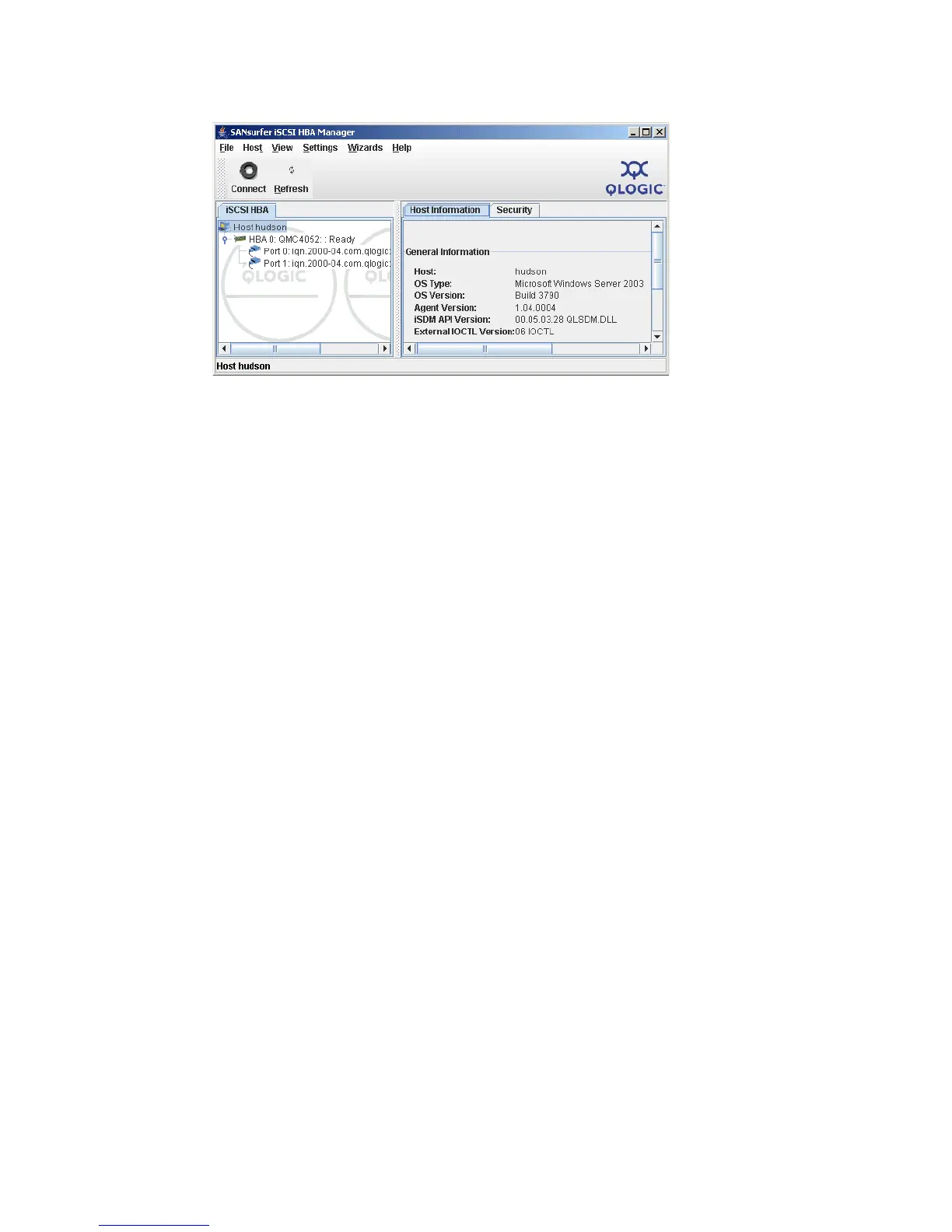

Figure 16-22 SANsurfer - General information
We have successfully connected to this host’s iSCSI HBAs. Multiple hosts can be managed
from a single SANsurfer client. Proceed with the HBA data collection.
16.5.2 HBA data collection
This section explains how to gather information that is required in later steps during the setup.
The following details will be gathered:
Adapter BIOS and firmware level
iSCSI qualified name of the adapter ports
MAC addresses of the iSCSI port
1. Connect to the SANsurfer GUI host as described in 16.5.1, “Connect with SANsurfer to the
host where the HBA is installed” on page 353. Select the HBA from the iSCSI HBA listing
and click the HBA information tab. See Figure 16-23.
