7065Admin_Summary.fm Draft Document for Review August 30, 2007 12:59 am
204 IBM System Storage DS3000: Introduction and Implementation Guide

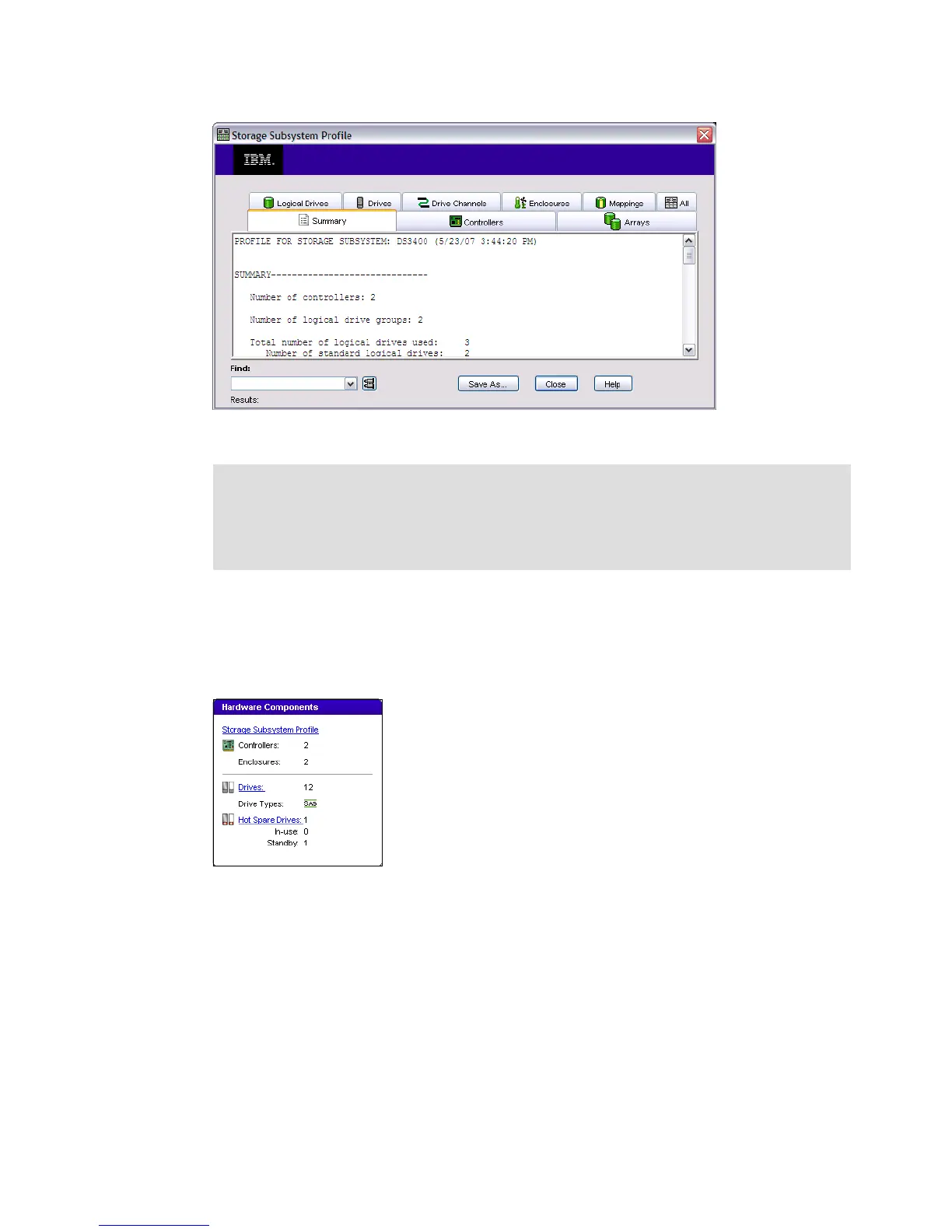

Figure 9-10 Storage Subsystem Profile
9.2.2 Drives
This section displays the overall installed hard drives in this box, and the drive type. If you
click the Drives link (Figure 9-11), the Locate Drives Window (Figure 9-12) appears.
Figure 9-11 Hardware Components - Drives Link
Note: We recommend you that you save a new version of the profile and store it securely
whenever the configuration changes. Even in the case of a complete configuration loss,
you can restore the arrays and logical drives configuration as well as the mappings for the
storage partitioning. The profile should be stored locally, and also be included in any offsite
disaster recovery documentation.
