Chapter 8. Administration - Configure 179
Draft Document for Review August 30, 2007 12:59 am 7065Admin_Configure.fm
3. The Map FlashCopy Logical Drive to Hosts view displays (Figure 8-61).Here you assign
logical drive-to-LUN mappings between the FlashCopy logical drive and the host that will
access the FlashCopy logical drive, using the Mappings View of the Subsystem
Management window. In some cases, depending on the host operating system and if any
logical drive manager software in use, mapping the same host to both a base logical drive
and its associated FlashCopy logical drive might result in conflicts.

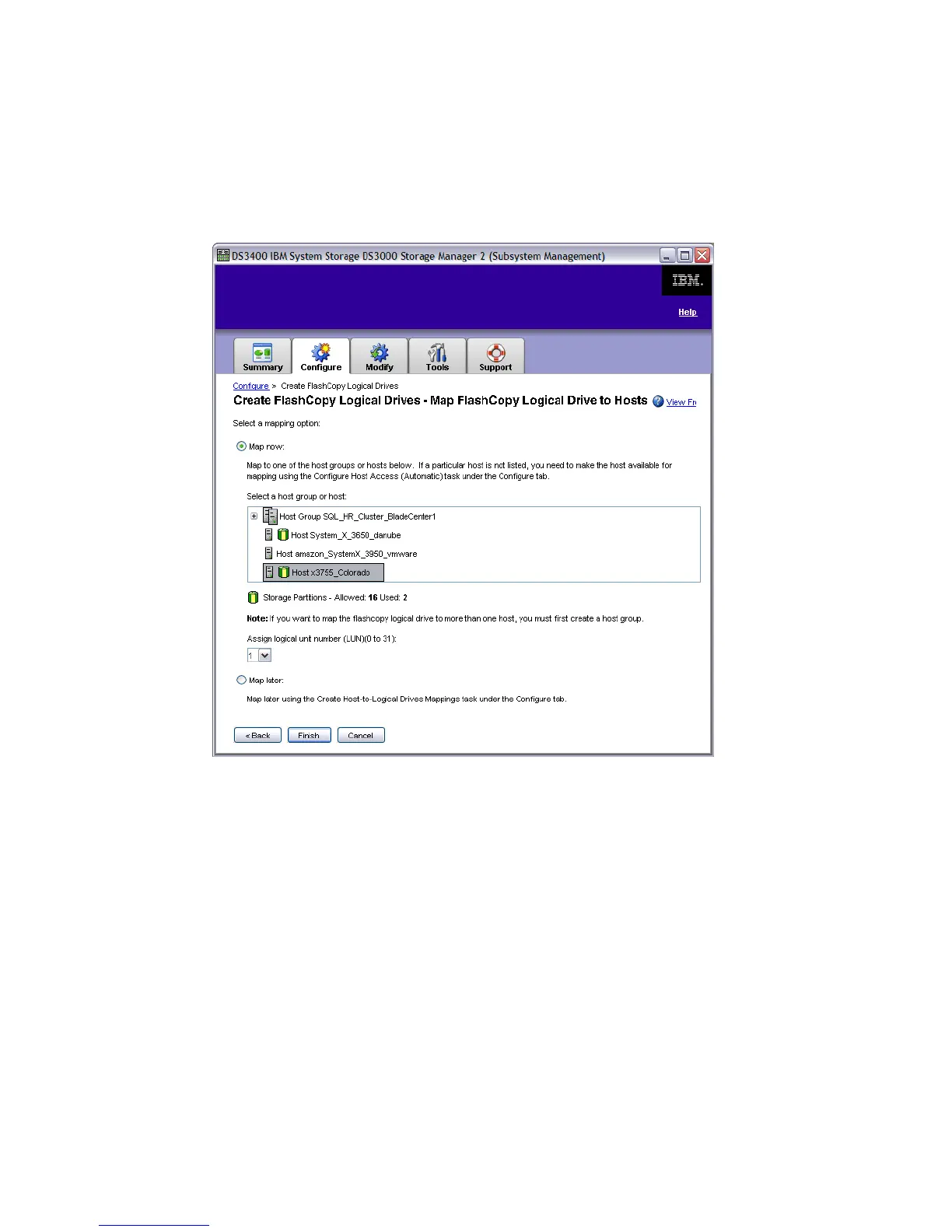

Figure 8-61 FlashCopy - Map Logical drive to host
To map the FlashCopy logical drive to a host, select the host and click Finish. If you want
to do all your mappings later select Map later (8.6, “Create Host to Logical Drive
Mappings” on page 193).
4. Click Finish to save the configuration. You will be prompted to create another FlashCopy
Logical drive (Figure 8-62). If you plan to create multiple FlashCopies, we advise you to
create and map all of the FlashCopy logical drives before registering them with hosts, so
you can register all logical drives together.
