7065iSCSI_Config3.fm Draft Document for Review August 30, 2007 12:59 am
436 IBM System Storage DS3000: Introduction and Implementation Guide
in the cluster. The Public LAN will be used for internal and client communication, the Private
LAN will be used only for internal communication and the two iSCSI networks are not used in
the cluster, since they are reserved for iSCSI traffic only.

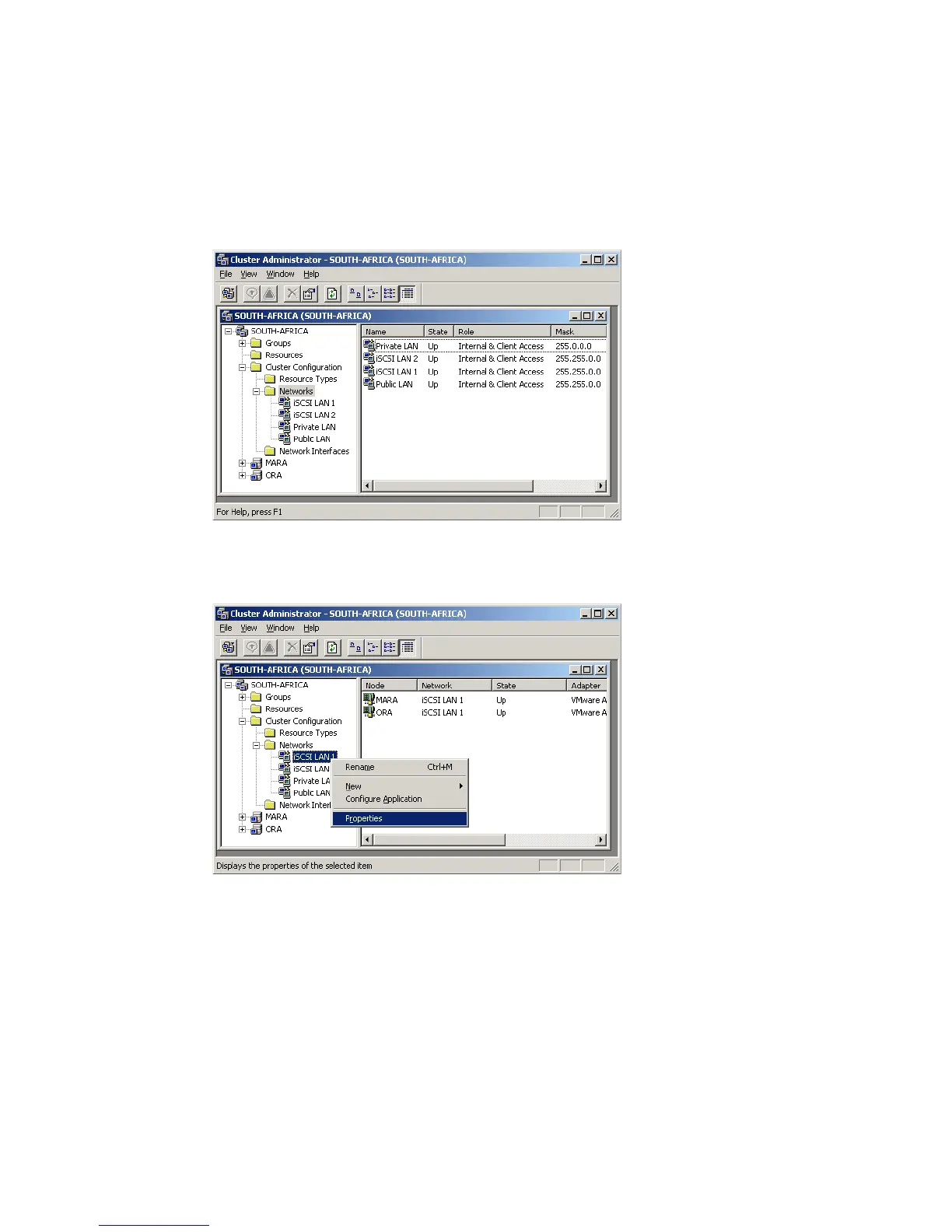

1. In Cluster Administrator, open Cluster Configuration → Networks. The Role column in
Figure 18-61 shows that all networks are currently used for both internal and client
communication.
Figure 18-61 Network usage after installation
2. Right click on iSCSI LAN 1, and select Properties, as in Figure 18-62.
Figure 18-62 iSCSI LAN 1
3. In Figure 18-63 on page 437, uncheck Enable this network for cluster use and click OK.
