7065iSCSI_Config3.fm Draft Document for Review August 30, 2007 12:59 am
438 IBM System Storage DS3000: Introduction and Implementation Guide

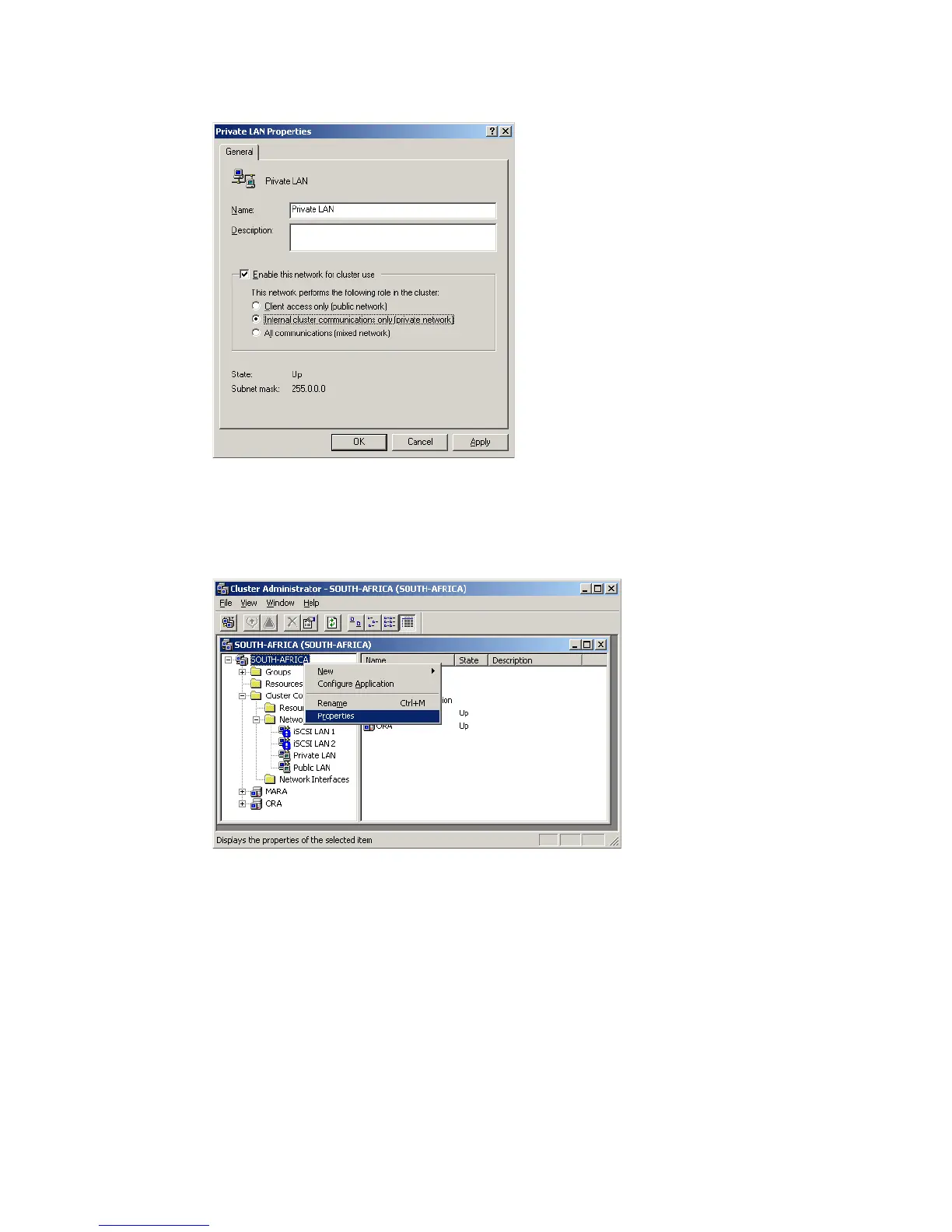

Figure 18-65 Private LAN properties
7. Verify that the private LAN has the highest priority for internal cluster communication. T do
this, right click on the cluster name in the Cluster Administrator and select Properties,
Figure 18-66.
Figure 18-66 Cluster context menu
8. In the Properties dialog select the Network Priority tab, Figure 18-67. Verify that the
network that is used for internal communication only is the first network in the list. Use the
Move up or down buttons to change this if required. Click OK.
