CHAPTER13 Network
Mediant 1000 Gateway & E-SBC | User's Manual
13 Network
This section describes network-related configuration.
Building and Viewing your Network Topology
The Network view lets you easily build and view your voice network topology entities, including IP
network interfaces, Ethernet Devices (VLANs), Ethernet Groups, and physical Ethernet ports. The
Topology view graphically displays these entities and the associations between them, giving you a
better understanding of your network topology and configuration. You can use the Network view as
an alternative to configuring the entities in their respective Web pages or you can use it in
combination.
➢ To access the Network view:
â– Click the Network View home icon (Setup menu > IP Network tab > Network View).

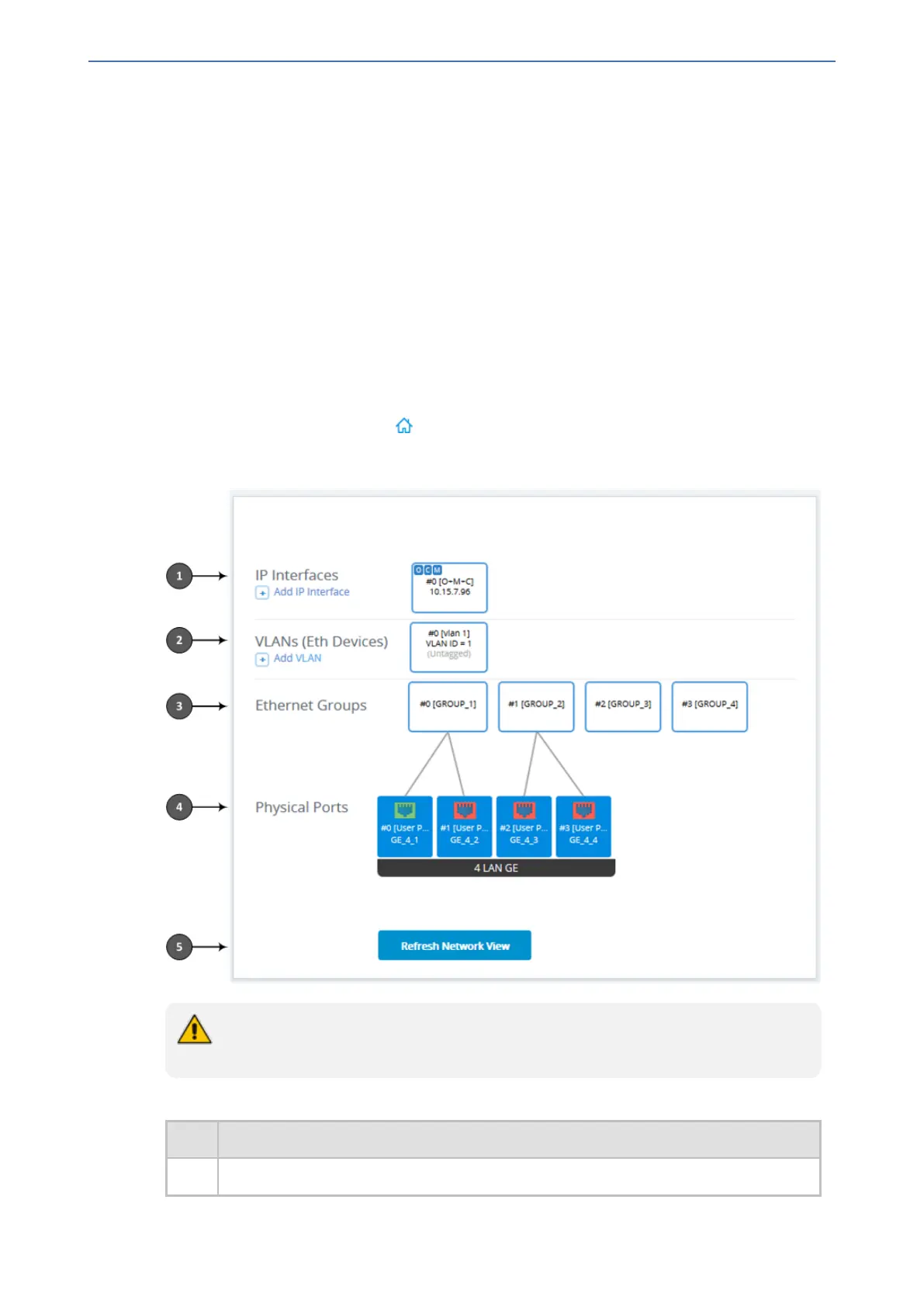

The areas of the Network view is shown in the example below and described in the subsequent
table.
The figure above is used only as an example; your device may show different Ethernet
Groups and Ethernet ports.
Table 13-1: Description of Network View
Item Description
1 Configures and displays IP Interfaces.
- 87 -
