CHAPTER29 Analog Gateway
Mediant 1000 Gateway & E-SBC | User's Manual
2. Configure the parameters as required.
3. Click Apply.
Configuring Authentication
The Authentication table lets you configure an authentication username and password per analog
port.
● The feature is applicable to FXS and FXO interfaces.
● If authentication is configured for the entire device, the configuration in the table is
ignored.
● If the user name or password is not configured in the table, the port's phone number
(configured in the Trunk Group table) and global password (configured by the global
parameter, Password) are used instead for authentication of the port.
● After you click Apply, the password is displayed as an asterisk (*).
The following procedure describes how to configure authentication per port through the Web
interface. You can also configure it through ini file [Authentication] or CLI (configure voip >
gateway analog authentication).
➢ To configure authentication credentials per port:
1. Configure the device to authenticate per endpoint. You can configure this globally for all
endpoints or for endpoints belonging to a specific Trunk Group:

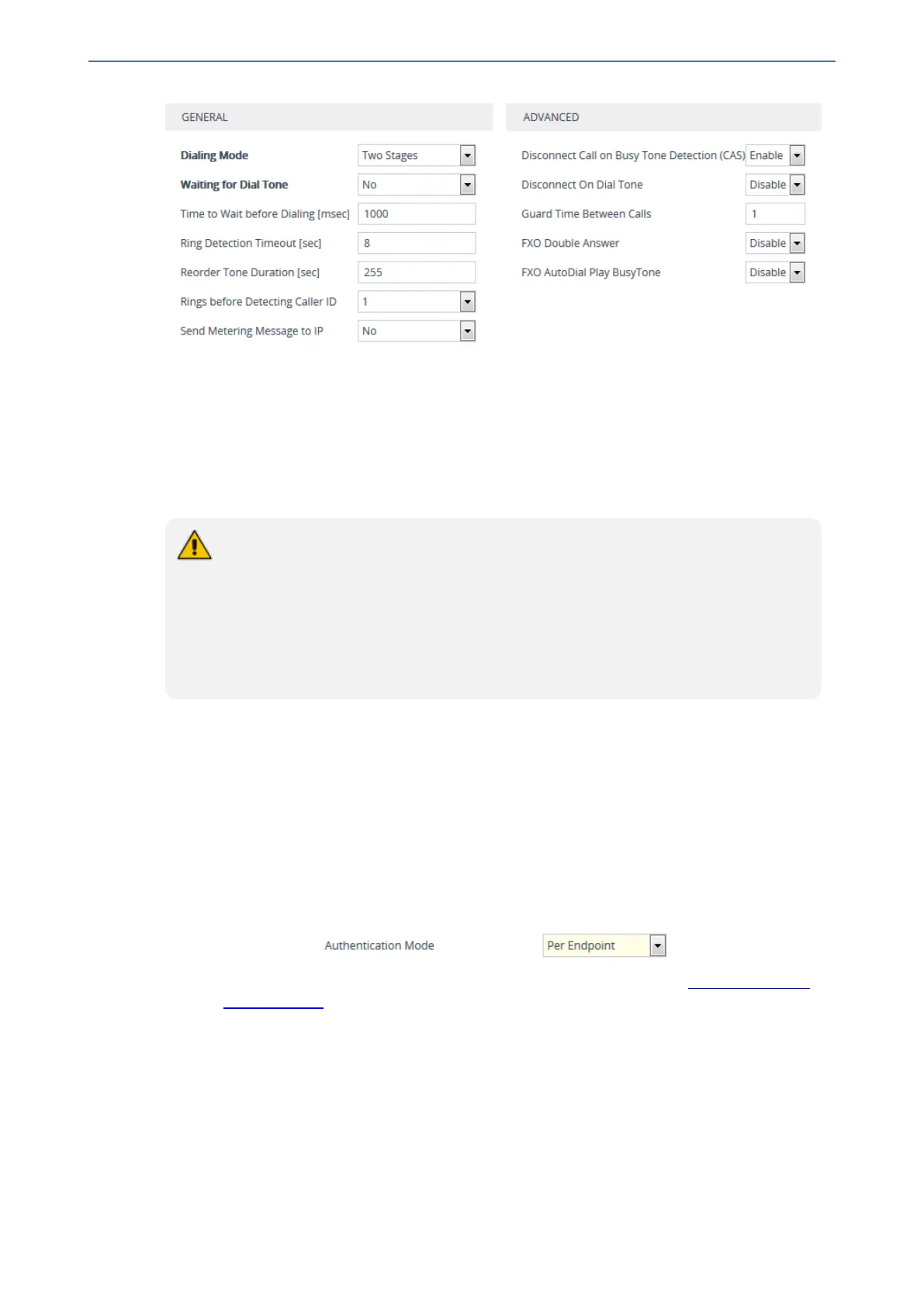

● For all endpoints: Open the Proxy & Registration page (Setup menu > Signaling & Media
tab > SIP Definitions folder > Proxy & Registration), and then configure the
'Authentication Mode' (AuthenticationMode) parameter to Per Endpoint:
● Endpoints per Trunk Group: Open the Trunk Group Settings table (see Configuring Trunk
Group Settings), and then for the required Trunk Group ID, configure the 'Registration
Mode' parameter to Per Endpoint (TrunkGroupSettings_RegistrationMode).
2. Open the Authentication table (Setup menu > Signaling & Media tab > Gateway folder >
Analog Gateway > Authentication).
3. Select the row corresponding to the port that you want to configure, and then click Edit; the
following dialog box appears:
- 695 -
