Item Description
2. Configure the Ethernet Devices as desired, and then click Apply; the Ethernet
Devices table closes and you are returned to the Network View, displaying the
newly added Ethernet Device.
For more information on configuring Ethernet Devices, see Configuring Underlying
Ethernet Devices.
3 Configures and displays Ethernet Groups.

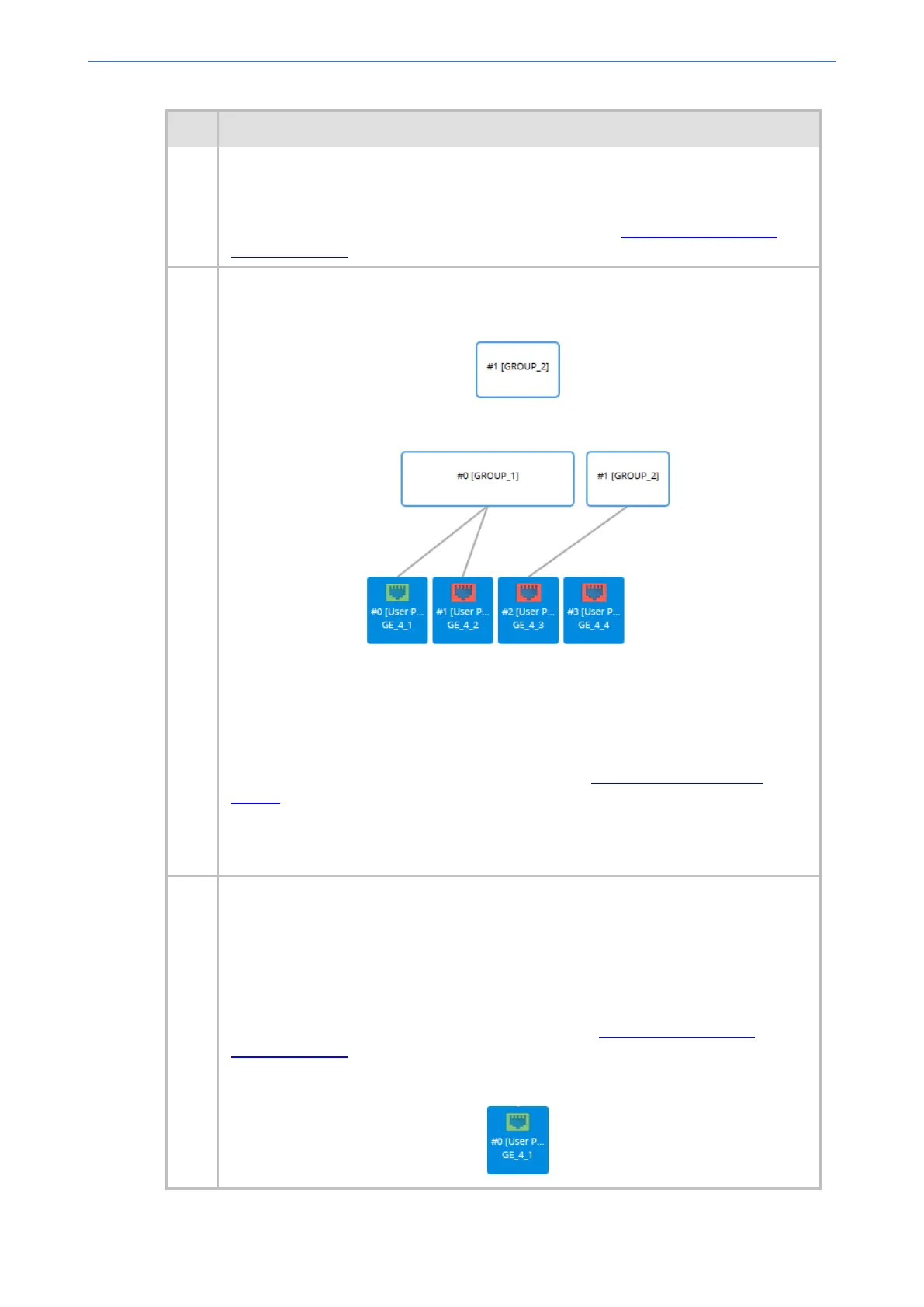

The Ethernet Groups appear as icons, displaying the row index number and name, as
shown in the example below:
Ethernet ports associated with Ethernet Groups are indicated by lines connecting
between them, as shown in the example below:
To edit an Ethernet Group:
1. Click the Ethernet Group icon, and then from the drop-down menu, choose Edit; the
Ethernet Groups table opens with a dialog box for editing the Ethernet Group.
2. Configure the Ethernet Group as desired, and then click Apply; the Ethernet Groups
table closes and you are returned to the Network View.
For more information on configuring IP Interfaces, see Configuring Ethernet Port
Groups.
To open the Ethernet Groups table, click any Ethernet Group icon, and then from the
drop-down menu, choose View List. You can then view and edit all the Ethernet Groups
in the table.
4 Configures and displays the device's Ethernet ports.
To configure an Ethernet port:
1. Click the required port icon, and then from the drop-down menu, choose Edit; the
Physical Ports table opens with a dialog box for editing the Ethernet port.
2. Configure the Ethernet Port as desired, and then click Apply; the Physical Ports
table closes and you are returned to the Network View.
For more information on configuring Ethernet ports, see Configuring Underlying
Ethernet Devices.
The Ethernet ports appear as icons, displaying the row index number, description, and
port string number, as shown in the example below:
- 89 -
To Next Page
