CHAPTER13 Network
Mediant 1000 Gateway & E-SBC | User's Manual
● All LAN ports (including those of the optional SWX Expansion module) have the
same MAC address, which is the MAC address of the device.
● Each Ethernet Group must have a unique VLAN ID in scenarios where the ports of
multiple Ethernet Groups are connected to the same switch.
● If your device is housed with the SWX module, the device's management
interfaces do not display the GE_0_3 port (of the CRMX module) correctly. Instead,
the GE_7_4 port is duplicated (row index 6). To resolve this problem, please load an
ini file with the following Physical ports table settings:
[PhysicalPortsTable ]
FORMAT PhysicalPortsTable_Index = PhysicalPortsTable_Port, PhysicalPortsTable_
Mode, PhysicalPortsTable_SpeedDuplex, PhysicalPortsTable_PortDescription, Phys-
icalPortsTable_GroupMember, PhysicalPortsTable_GroupStatus;
PhysicalPortsTable 0 = "GE_0_1", 1, 4, "User Port #0", "GROUP_1", "Active";
PhysicalPortsTable 1 = "GE_0_2", 1, 4, "User Port #1", "None", " ";
PhysicalPortsTable 2 = "GE_0_3", 1, 4, "User Port #2", "None", " ";
PhysicalPortsTable 3 = "GE_7_1", 1, 4, "User Port #3", "GROUP_2", "Active";
PhysicalPortsTable 4 = "GE_7_2", 1, 4, "User Port #4", "None", " ";
PhysicalPortsTable 5 = "GE_7_3", 1, 4, "User Port #5", "None", " ";
PhysicalPortsTable 6 = "GE_7_4", 1, 4, "User Port #6", "None", " ";
[\PhysicalPortsTable ]
The following procedure describes how to configure Ethernet ports through the Web interface. You
can also configure it through ini file [PhysicalPortsTable] or CLI ( configure network >
physical-port).
➢ To configure the physical Ethernet ports:
1. Open the Physical Ports table (Setup menu > IP Network tab > Core Entities folder >
Physical Ports).

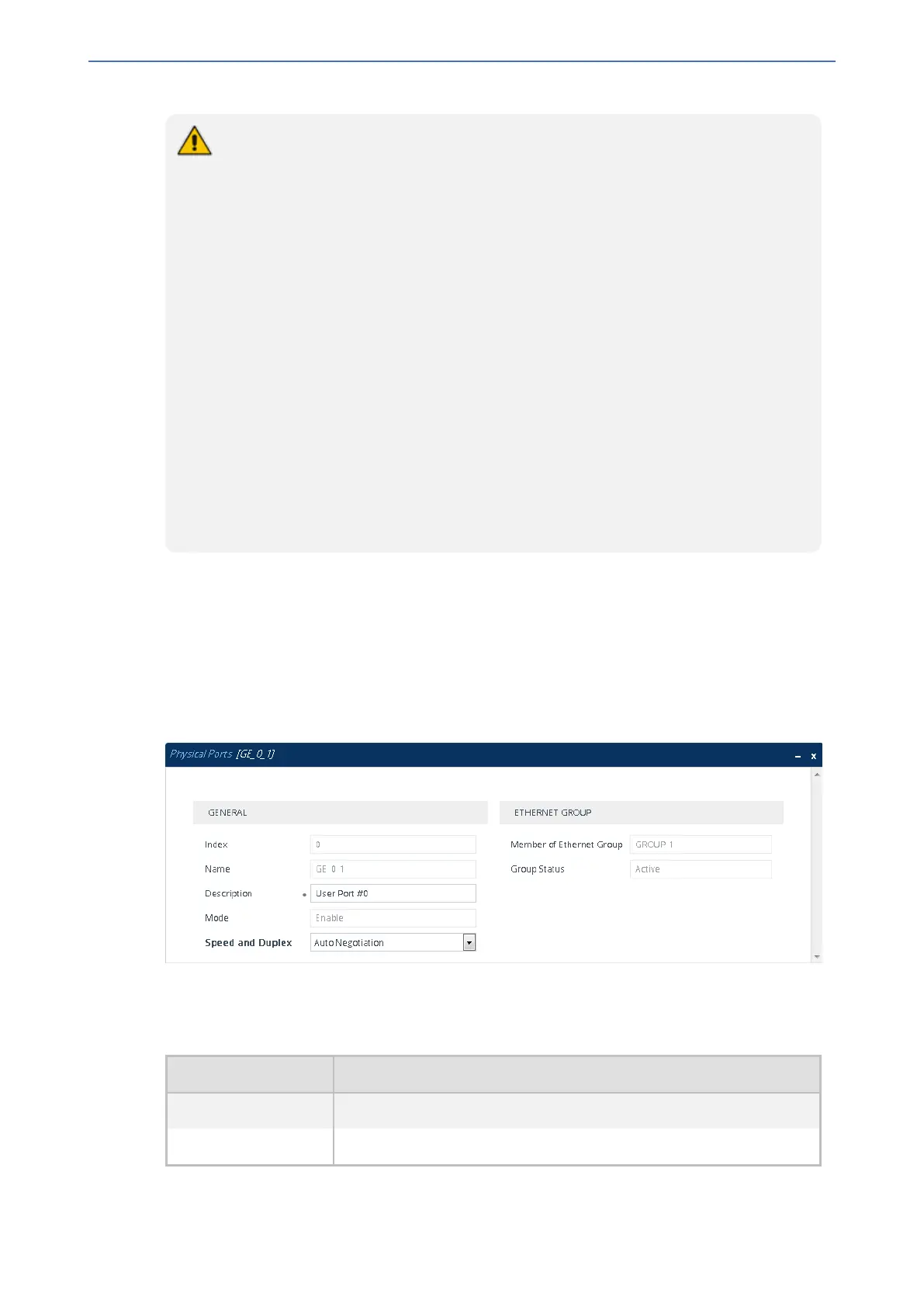

2. Select a port that you want to configure, and then click Edit; the following dialog box appears:
3. Configure the port according to the parameters described in the table below.
4. Click Apply, and then reset the device with a burn-to-flash for your settings to take effect.
Table 13-2: Physical Ports Table Parameter Descriptions
Parameter Description
General
'Index' (Read-only) Displays the index number for the table row.
- 91 -
