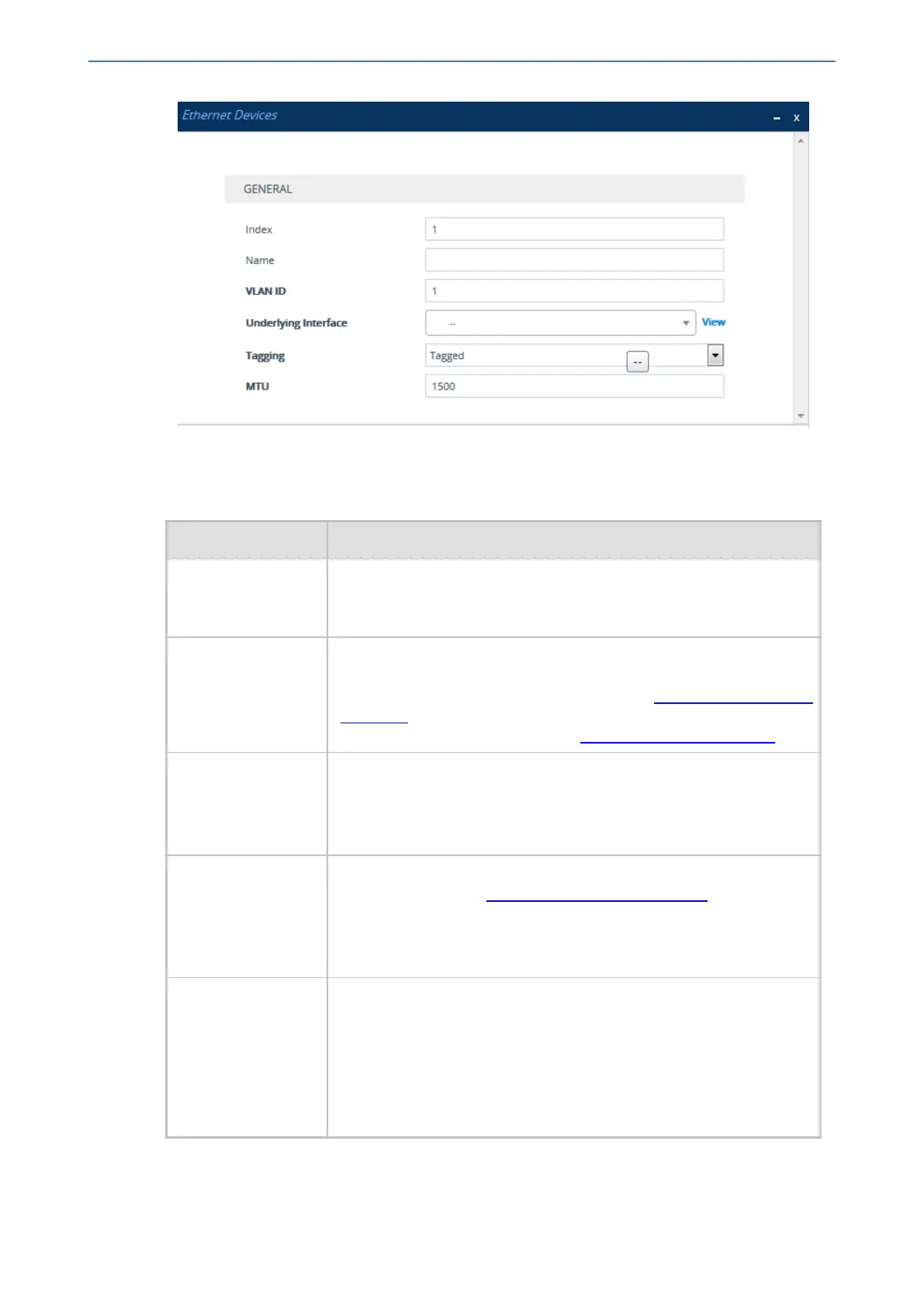

3. Configure an Ethernet Device according to the parameters described in the table below.
4. Click Apply.
Table 13-4: Ethernet Devices Table Parameter Descriptions
Parameter Description
'Index'
[DeviceTable_
Index]
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
'Name'
name
[DeviceTable_
DeviceName]
Defines a name for the Ethernet Device. The name is used to
associate the Ethernet Device with an IP network interface in the IP
Interfaces table ('Underlying Device' field - see Configuring IP Network
Interfaces) and/or with a static route in the Static Routes table
('Ethernet Output Device' field - see Configuring Static IP Routing).
'VLAN ID'
vlan-id
[DeviceTable_
VlanID]
Defines a VLAN ID for the Ethernet Device.
The valid value is 1 to 3999. The default is 1.
Note: Each Ethernet Device must be configured with a unique VLAN
ID.
'Underlying
Interface'
underlying-if
[DeviceTable_
UnderlyingInterface]
Assigns an Ethernet Group to the Ethernet Device. To configure
Ethernet Groups, see Configuring Ethernet Port Groups.
Note: The parameter is mandatory.
'Tagging'
tagging
[DeviceTable_
Tagging]
Defines VLAN tagging for the Ethernet Device.
â– [0] Untagged = (Default for pre-configured Ethernet Device) The
Ethernet Device accepts untagged packets and packets with the
same VLAN ID as the Ethernet Device. Incoming untagged
packets are assigned the VLAN ID of the Ethernet Device. The
Ethernet Device sends these VLAN packets untagged (i.e.,
removes the VLAN ID).
