CHAPTER16 Services
Mediant 1000 Gateway & E-SBC | User's Manual

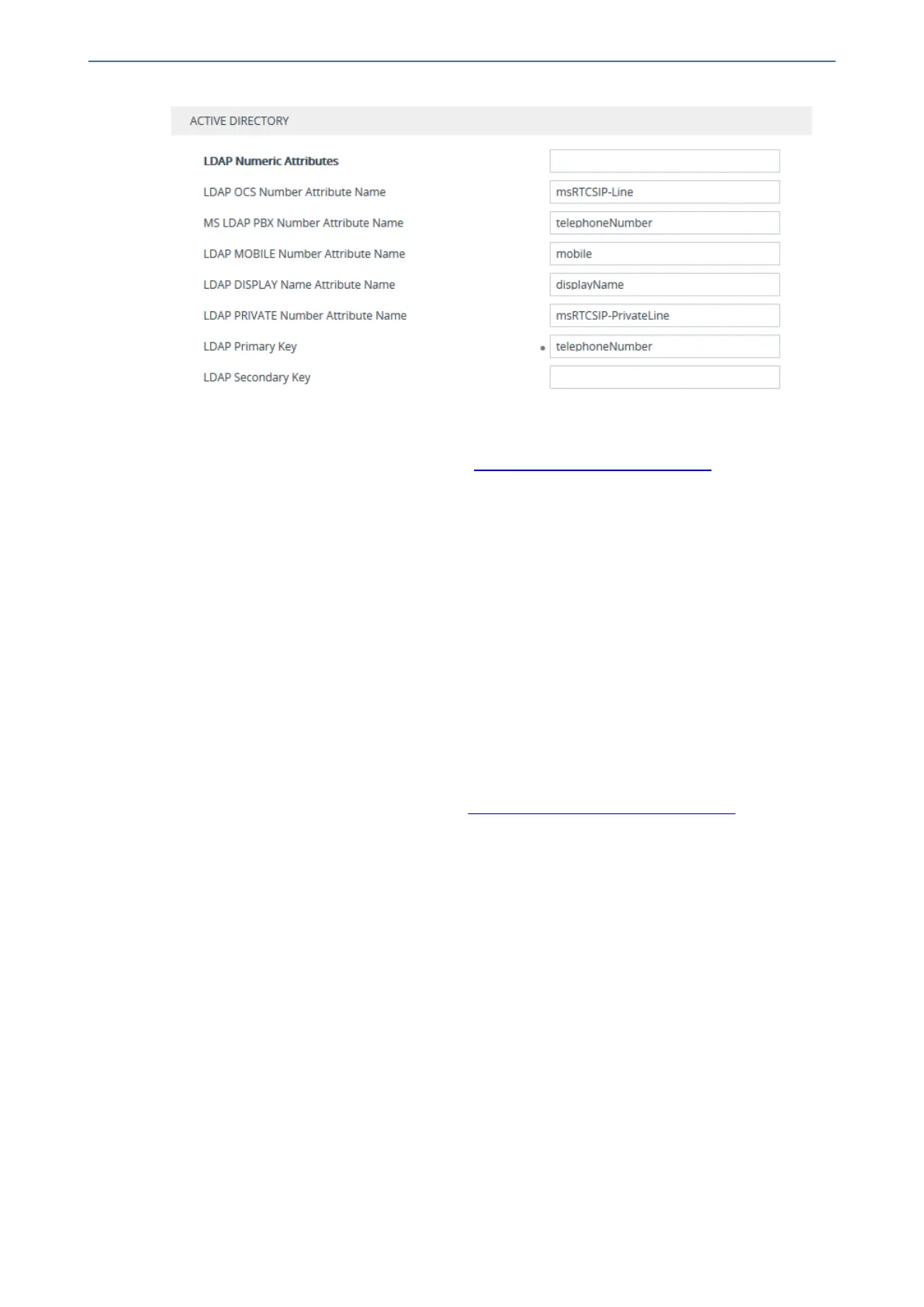

b. Configure the LDAP attribute names as desired.
3. Gateway application: Configure AD-based Tel-to-IP routing rules:
a. Open the Tel-to-IP Routing table (see Configuring Tel-to-IP Routing Rules).
b. Configure query-result routing rules for each IP domain (private, PBX / IP PBX, Skype for
Business clients, and mobile), using the LDAP keywords (case-sensitive) for the prefix
destination number:
â—† PRIVATE: Private number
â—† OCS: Skype for Business client number
â—† PBX: PBX / IP PBX number
â—† MOBILE: Mobile number
â—† LDAP_ERR: LDAP query failure
c. Configure a routing rule for routing the initial Tel call to the LDAP server, using the value
"LDAP" for denoting the IP address of the LDAP server.
d. For alternative routing, enable the alternative routing mechanism and configure
corresponding SIP reasons for alternative routing. For this feature, alternative routing
starts from the table row located under the LDAP query row.
4. SBC application: Configure AD-based IP-to-IP routing rules:
a. Open the IP-to-IP Routing table (see Configuring SBC IP-to-IP Routing Rules).
b. Configure query-result routing rules for each IP domain (private, PBX / IP PBX, Skype for
Business clients, and mobile), using the LDAP keywords (case-sensitive) in the
'Destination Username Pattern' field:
â—† PRIVATE: Private number
â—† OCS: Skype for Business client number
â—† PBX: PBX / IP PBX number
â—† MOBILE: Mobile number
â—† LDAP_ERR: LDAP query failure
c. Configure a routing rule for routing the initial call (LDAP query) to the LDAP server, by
setting the 'Destination Type' field to LDAP for denoting the IP address of the LDAP
server.
d. For alternative routing, enable the alternative routing mechanism and configure
corresponding SIP reasons for alternative routing. For this feature, alternative routing
starts from the table row located under the LDAP query row.
The table below shows an example for configuring AD-based Tel-to-IP routing rules in the Tel-to-IP
Routing table:
- 235 -
