CHAPTER18 Core Entities
Mediant 1000 Gateway & E-SBC | User's Manual

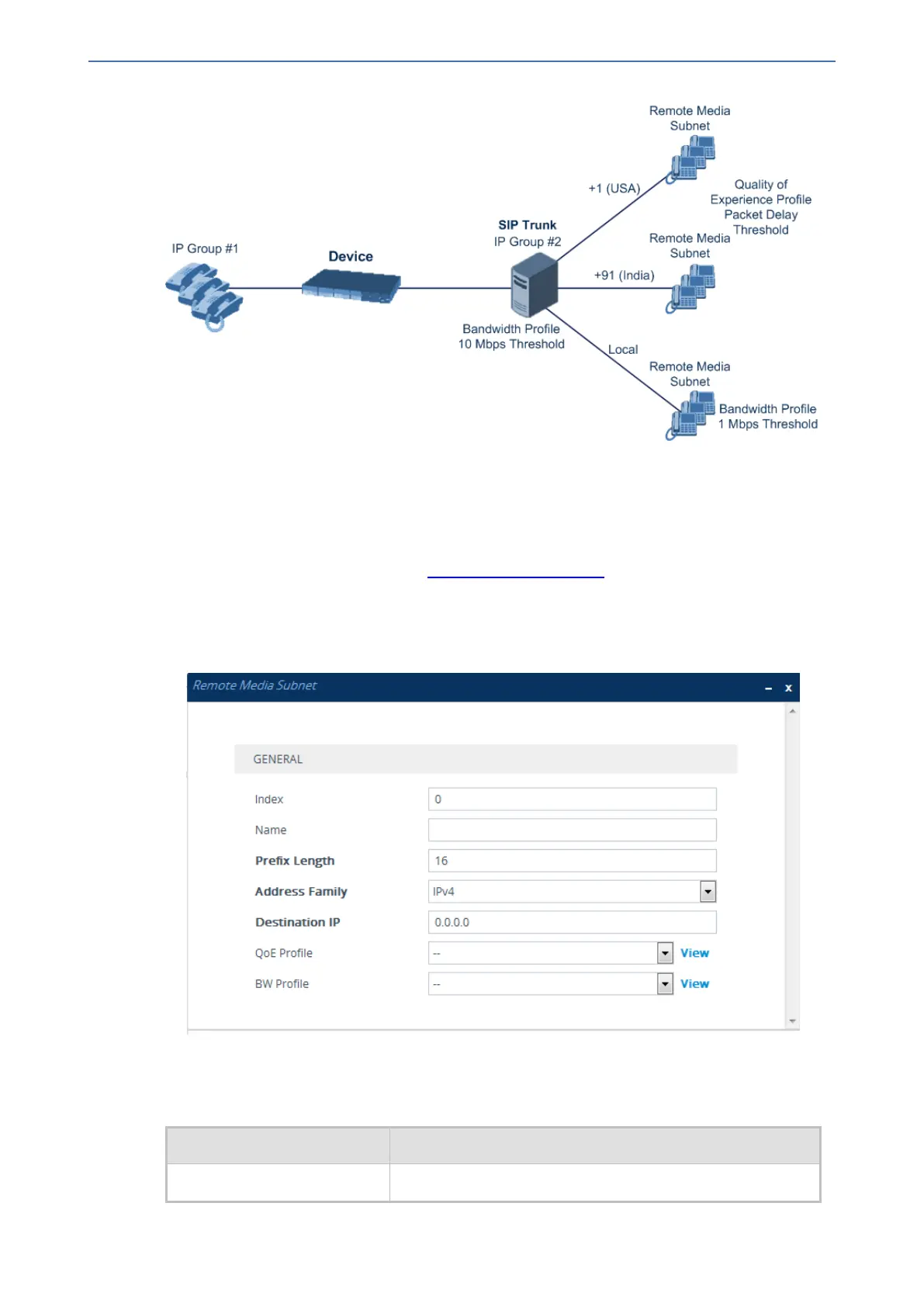

The following procedure describes how to configure Remote Media Subnets through the Web
interface. You can also configure it through ini file [RemoteMediaSubnet] or CLI (configure
voip > remote-media-subnet).
➢ To configure a Remote Media Subnet:
1. Open the Media Realms table (see Configuring Media Realms).
2. Select the Media Realm row for which you want to add Remote Media Subnets, and then click
the Remote Media Subnet link located below the table; the Remote Media Subnet table
appears.
3. Click New; the following dialog box appears:
4. Configure the Remote Media Subnet according to the parameters described in the table below.
5. Click Apply.
Table 18-2: Remote Media Subnet Table Parameter Descriptions
Parameter Description
'Index' Defines an index number for the new table row.
- 319 -
