Dial Plans are configured using two tables with "parent-child" relationship:
â– Dial Plan table ("parent" table): Defines the name of the Dial Plan. You can configure up to 10
Dial Plans.
â– Dial Plan Rule table ("child" table): Defines the actual dial plans (rules) per Dial Plan. You can
configure up to 2,000 of dial plan rules in total (where all can be configured for one Dial Plan or
configured between different Dial Plans).
The following procedure describes how to configure Dial Plans through the Web interface. You can
also configure it through other management platforms:
â– Dial Plan table: ini file [DialPlan] or CLI (configure voip > sbc dial-plan)
â– Dial Plan Rule table: ini file (DialPlanRule) or CLI (configure voip > sbc dial-plan-rule)
➢ To configure Dial Plans:
1. Open the Dial Plan table (Setup menu > Signaling & Media tab > SIP Definitions folder >
Dial Plan).

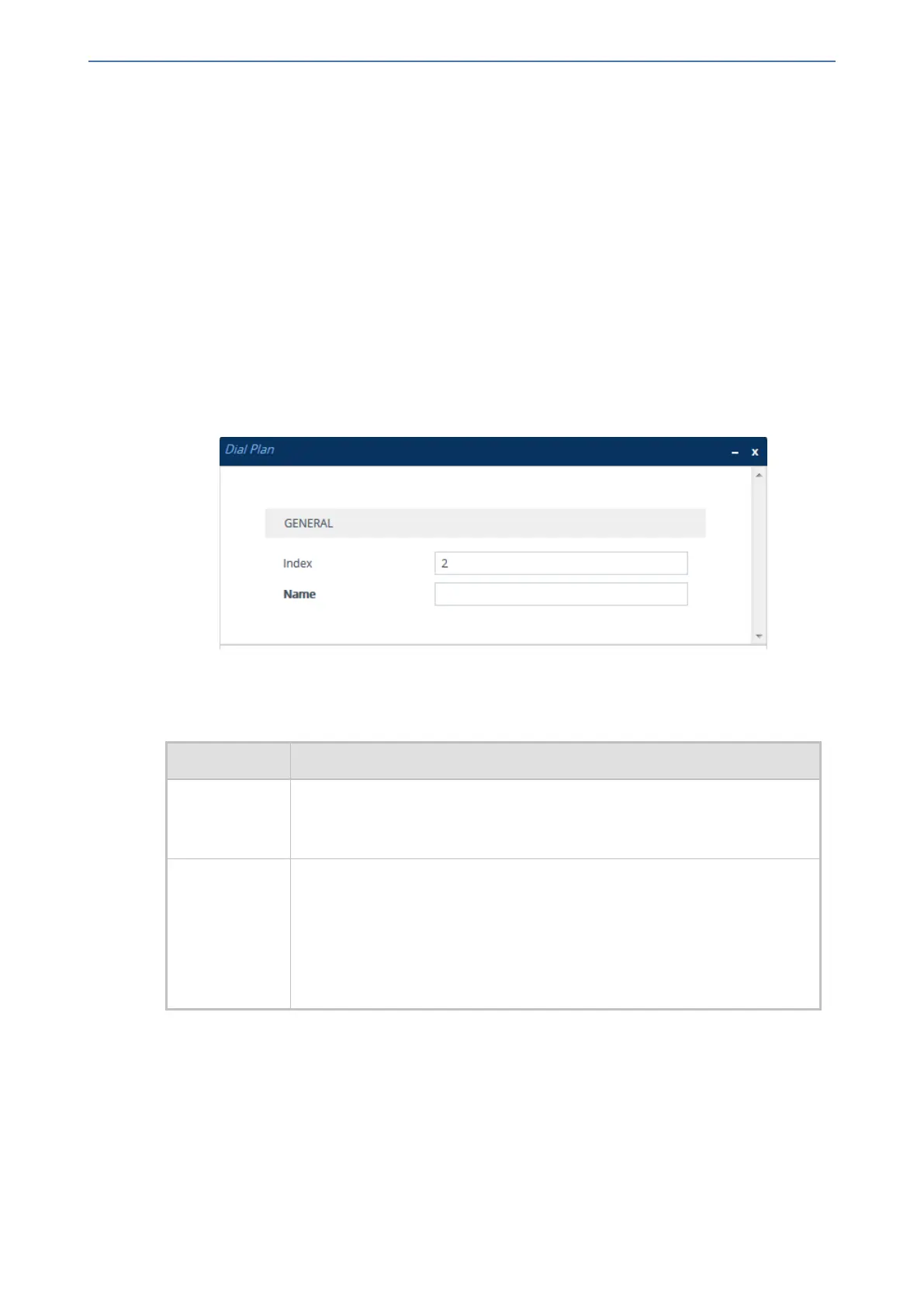

2. Click New; the following dialog box appears:
3. Configure a Dial Plan name according to the parameters described in the table below.
4. Click Apply.
Table 20-6: Dial Plan Table Parameter Descriptions
Parameter Description
'Index'
[DialPlan_
Index]
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
'Name'
name
[DialPlan_
Name]
Defines a descriptive name, which is used when associating the row in other
tables.
The valid value is a string of up to 15 characters.
Note:
â– Each row must be configured with a unique name.
â– The parameter value cannot contain a forward slash (/).
5. In the Dial Plan table, select the row for which you want to configure dial plan rules, and then
click the Dial Plan Rule link located below the table; the Dial Plan Rule table appears.
6. Click New; the following dialog box appears:
