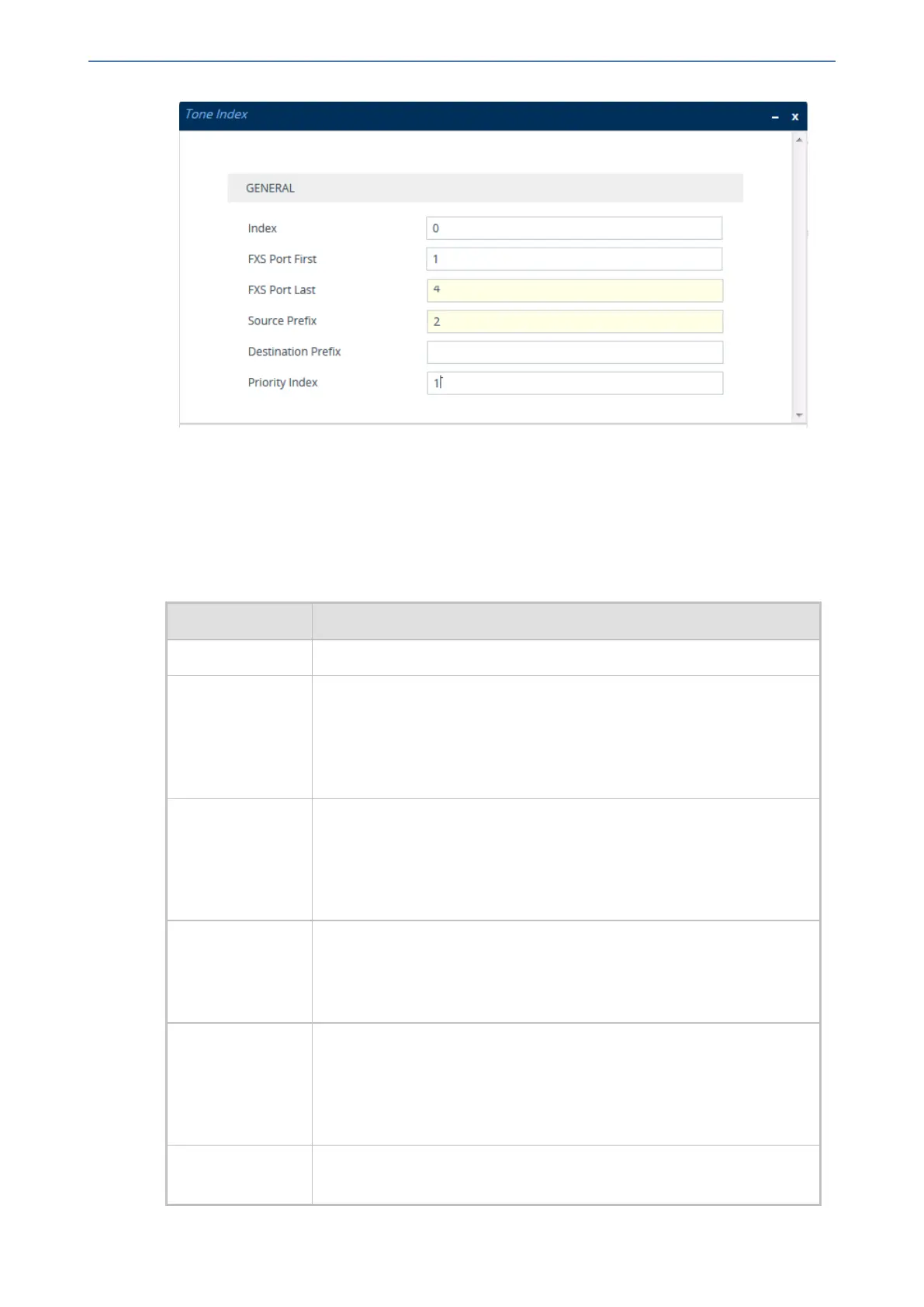

The figure above shows a configuration example for using distinctive ringing and call waiting
tones of Index #9 ('Priority Index' 1) in the CPT file for FXS endpoints 1 through 4 when a call is
received from a calling (source) number with prefix 2.
3. Configure distinctive ringing and call waiting tones per port according to the parameters
described in the table below.
4. Click Apply.
Table 29-7: Tone index Table Parameter Description
Parameter Description
'Index' Defines the table index entry.
'FXS Port First'
fxs-port-
first
[ToneIndex_
FXSPort_First]
Defines the first port in the FXS port range.
'FXS Port Last'
fxs-port-last
[ToneIndex_
FXSPort_Last]
Defines the last port in the FXS port range.
'Source Prefix'
src-pattern
[ToneIndex_
SourcePrefix]
Defines the prefix of the calling number.
'Destination
Prefix'
dst-pattern
[ToneIndex_
DestinationPrefix]
Defines the prefix of the called number.
'Priority Index'
priority
Defines the index of the distinctive ringing and call waiting tones.
