CHAPTER40 Basic Maintenance
Mediant 1000 Gateway & E-SBC | User's Manual

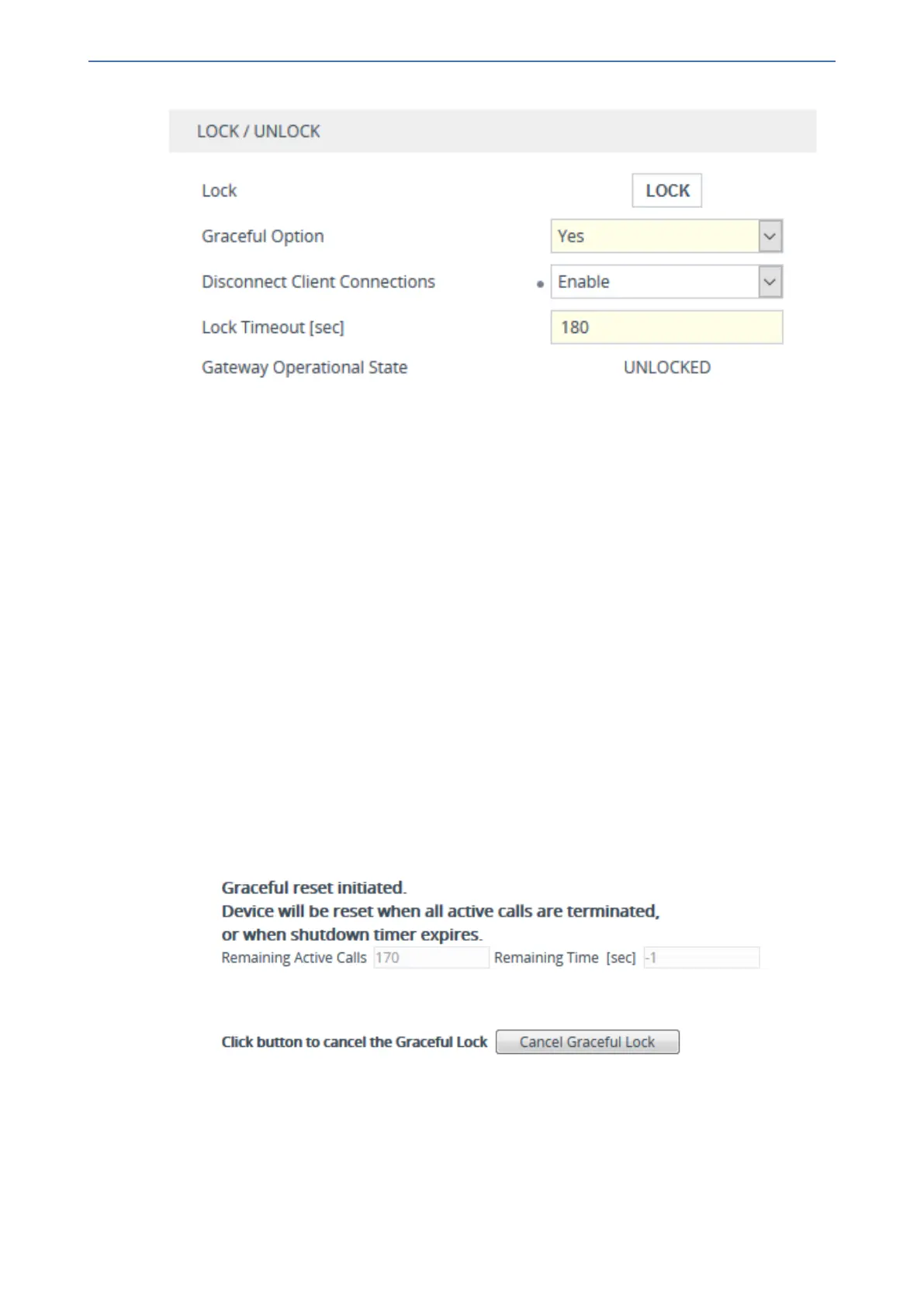

2. From the 'Graceful Option' drop-down list, select one of the following options:
● Yes: The device locks only after a user-defined duration, configured in the 'Lock Timeout'
field (see next step). During this interval, no new traffic is accepted, allowing only existing
calls to continue until the timeout expires. If at any time during this timeout there are no
active calls, the device locks. If there are still active calls when the timeout expires, the
device terminates them and locks.
● No: The device locks immediately, terminating all existing traffic.
Note: These options are available only if the current status of the device is in "UNLOCKED"
state.
3. If you configured 'Graceful Option' to Yes (see previous step), then in the 'Lock Timeout' field,
enter the time (in seconds) after which the device locks.
4. If you also want the device to terminate (close) existing TLS/TCP client connections and reject
new incoming TLS/TCP client connections during the locked state, then from the 'Disconnect
Client Connections' drop-down list, select Enable. If disabled (default), existing client
connections will remain and incoming TLS/TCP client connections will be accepted during the
locked state.
5. Click the LOCK button; a confirmation message box appears requesting you to confirm device
lock.
6. Click OK to confirm;
● If you configured 'Graceful Option' to Yes, a lock icon is displayed and a window appears
displaying the number of remaining calls and time. To cancel the lock, click the Cancel
Graceful Lock button.
● If you configured 'Graceful Option' to No, the lock process begins immediately.
The 'Gateway Operational State' read-only field displays "LOCKED" and the device does not
process any calls.
- 847 -
