● Address: IP address of the device's OAMP interface
● Firmware: Software version currently running on the device
● Type: Name of the device
● S/N: Serial number of the device.
■ SBC Call Statistics:
● Active Calls: Total number of SBC calls. The corresponding SNMP performance
monitoring MIB is PM_gwInINVITEDialogs.
● Average Success Rate (ASR): Number of successfully answered calls out of the total
number of attempted calls. The corresponding SNMP performance monitoring MIB is PM_
gwSBCASR.
● Average Call Duration (ACD): Average call duration in seconds of established calls. The
value is refreshed every 15 minutes and therefore, this value reflects the average duration
of all established calls made within a 15 minute period. The corresponding SNMP
performance monitoring MIB is PM_gwSBCACD.
● Calls per Sec: Total number of new calls per second (CPS).
● Transactions per Sec: Total number of new SIP transactions per second (out-of-dialog
transactions such as INVITE and REGISTER, or in-dialog transactions such as UPDATE
and BYE). The corresponding SNMP performance monitoring MIB is PM_gwAct-
iveSIPTransacionsPerSecond. The counter is applicable to SBC and Gateway calls.
● Registered Users: Number of users registered with the device. The corresponding SNMP
performance monitoring MIB is PM_gwSBCRegisteredUsers.

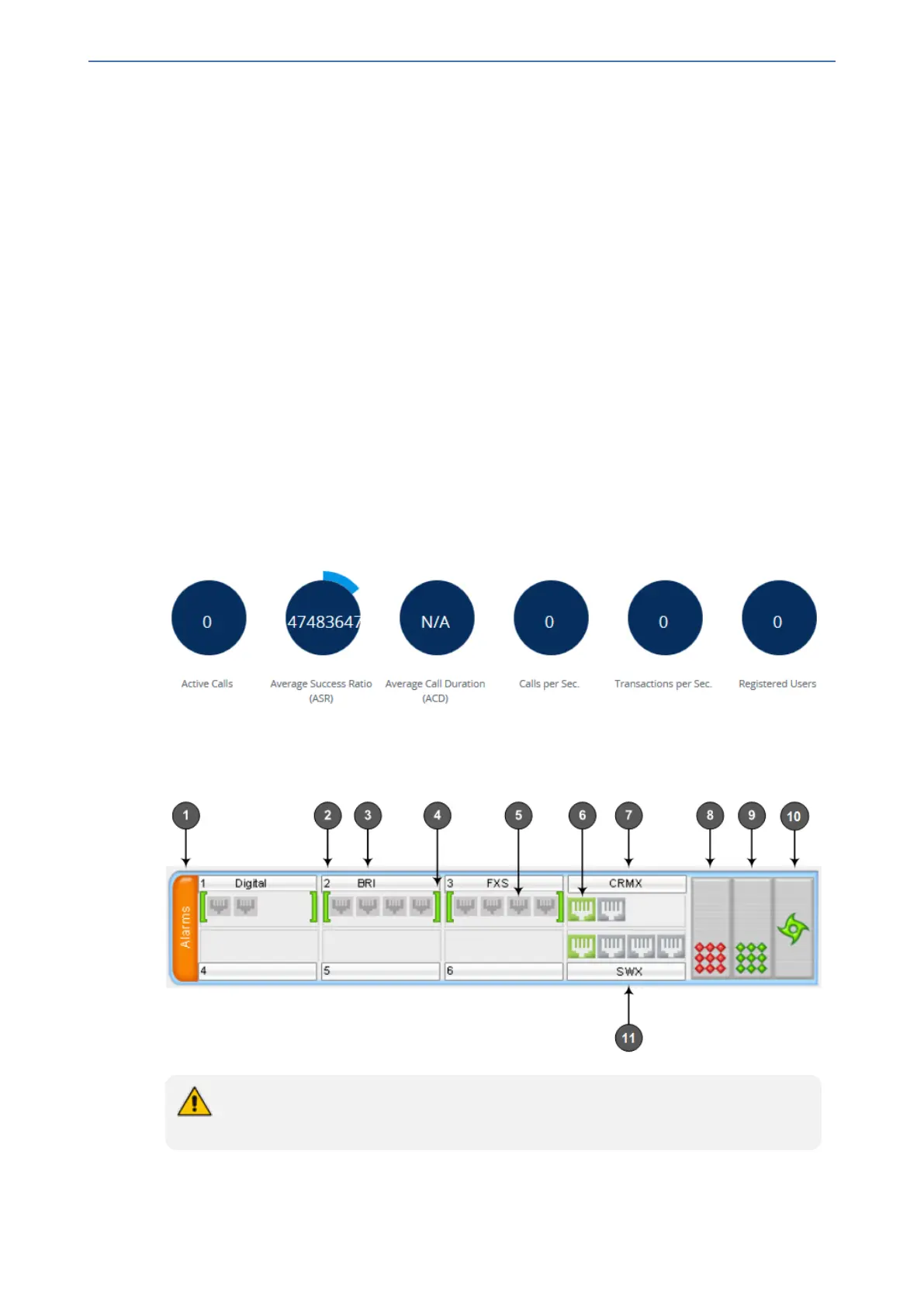

■ Graphical Display of device: Shows color-coded status icons, as shown in the figure below
and described in the subsequent table:
Figure 50-1: Graphical Display of Device on Monitor Page - Mediant 1000B Gateway and E-SBC
● The figure above is used only as an example as the graphical display of your device
in the Web interface reflects your specific ordered hardware configuration.
