➢ To view IP connectivity status:
1. Enable alternative Tel-to-IP routing that is triggered by connectivity loss with destination. This
is done by configuring the AltRoutingTel2IPEnable parameter to Enable or Status Only. For
more information, see Alternative Routing Based on IP Connectivity.
2. Open the IP Connectivity table (Monitor menu > Monitor tab > VoIP Status folder > IP
Connectivity).

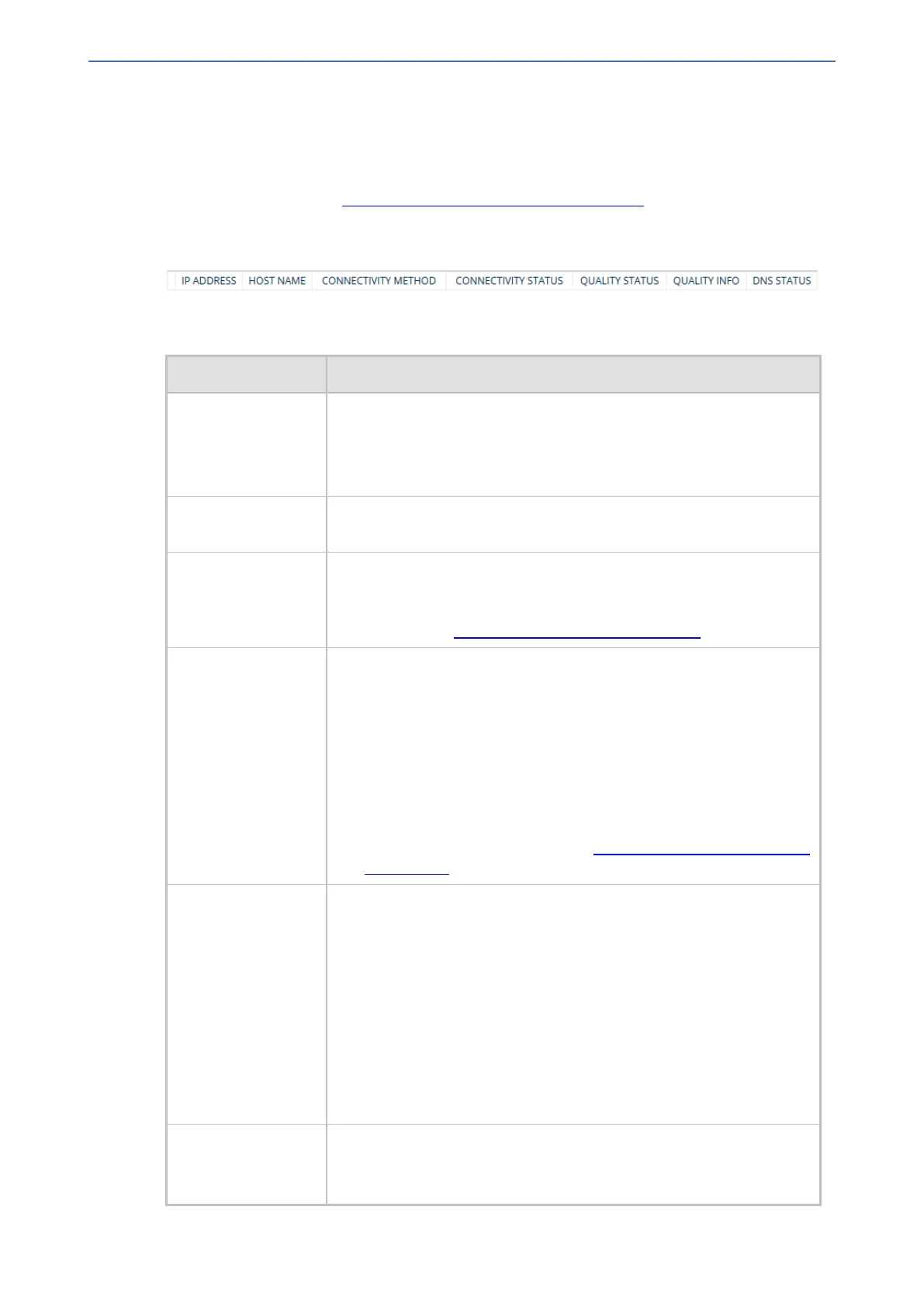

Table 54-5: IP Connectivity Table Description
Column Name Description
IP Address Displays the destination IP address, which can be one of the following:
■ Destination IP address as configured in the Tel-to-IP Routing table.
■ Destination IP address resolved from the host name (FQDN) as
configured in the Tel-to-IP Routing table.
Host Name Displays the host name (or IP address) as configured in the Tel-to-IP
Routing table.
Connectivity
Method
Displays the method according to which the destination IP address is
queried periodically by the device to check keep-alive connectivity
status (SIP OPTIONS request). To configure the keep-alive
mechanism, see IP Destinations Connectivity Feature.
Connectivity
Status
Displays the connectivity status with the destination:
■ "OK": Remote side responds to periodic connectivity queries.
■ "Lost": Remote side didn't respond for a short period.
■ "Fail": Remote side doesn't respond.
■ "Init": Connectivity queries not started (e.g., IP address not
resolved).
■ "Disable": The connectivity option is disabled, i.e., parameter 'Alt
Routing Tel to IP Mode' (AltRoutingTel2IPMode ini) is set to None
or QoS. For more information, see Alternative Routing Based on IP
Connectivity.
Quality Status Displays the QoS (according to packet loss and delay) of the
destination:
■ "Unknown": Recent quality information isn't available.
■ "OK"
■ "Poor"
Note:
■ The parameter is applicable only if the parameter 'Alt Routing Tel to
IP Mode' is set to QoS or Both (AltRoutingTel2IPMode = 2 or 3).
■ The parameter is reset if two minutes elapse without a call to the
destination.
Quality Info Displays QoS information: delay and packet loss, calculated according
to previous calls.
Note:
- 956 -
