Duplication Interface circuit pack LEDs
Issue 4 May 2002
7-5
NOTE:
Failure to move both SPE Select switches to the same position causes the
system to retain control of processor selection.
To return control of the SPE selection to the system, return the SPE Select
switches on both Duplication Interface circuit packs to the AUTO position (one at
a time to avoid accidentally selecting the other SPE). The OVERRIDE LED goes
dark.

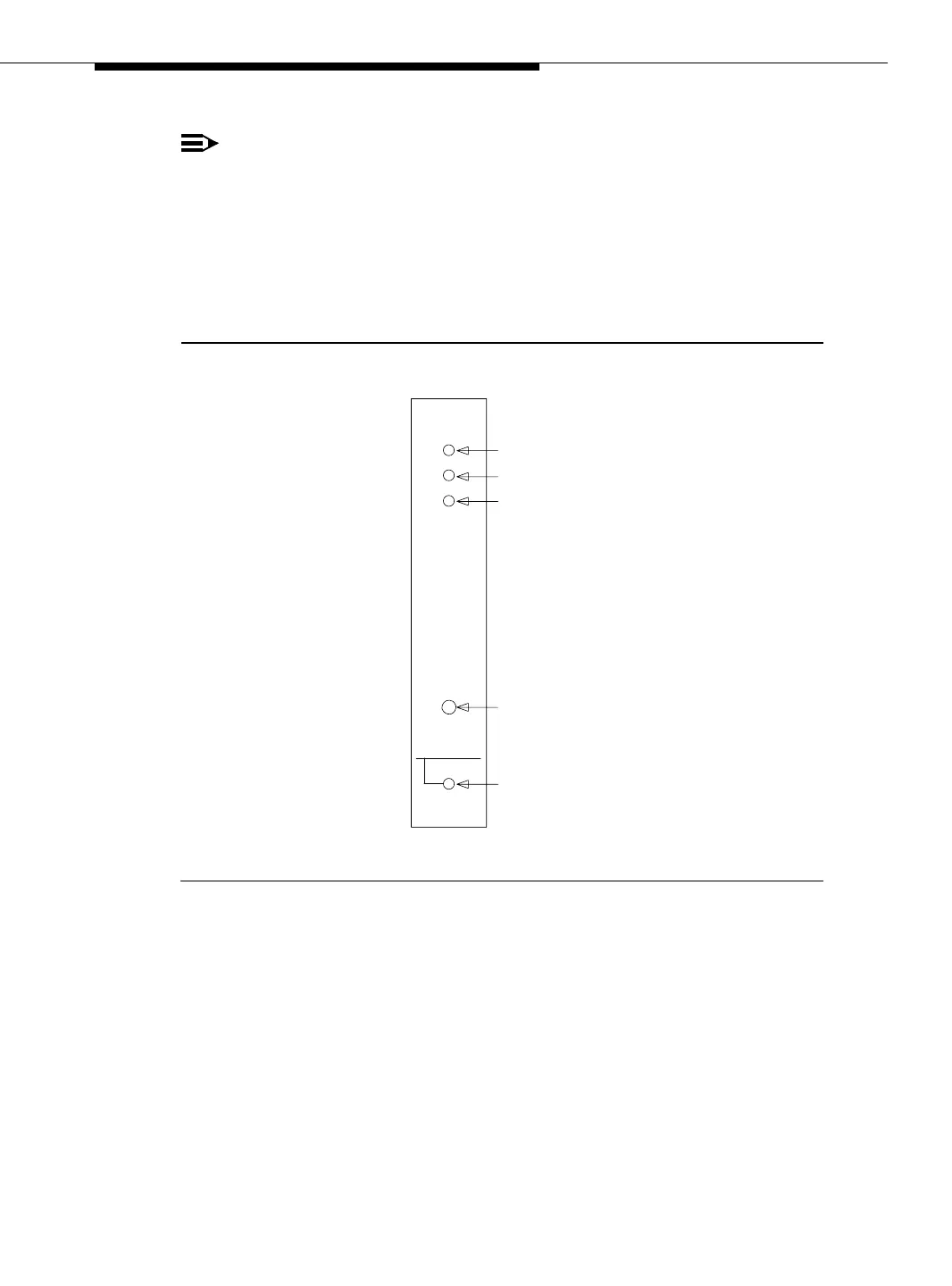

Figure 7-2. Duplication Interface Circuit Pack Indicators
OVERRIDE
SPE
AUTO
A B
ALARM LED (RED)
TEST LED (GREEN)
BUSY LED (AMBER)
SPE SELECT LED (RED)
SPE SELECT SWITCH
