SHOP MANUAL
Engine
Ch 1 page 136
Fitting
1. Fit the camshaft. Take care not to damage
the cams and bearings.
2. Lubricate with engine oil and fit the valve tappets in the
same places as they were before removal.
Tighten the banjo bolts to 32 Nm.
3.
4. Fit the camshaft covers. Fit the guide flange bolts.
5. Remove all old sealing compound on the sealing surfaces
of the timing gear casing and timing gear plate.
Clean off any oil and grease using an alcohol based
cleaning agent.
6. Apply the sealing agent (512565) to the timing gear casing with
the special nozzle.
The width of the bead should be between 0.8 and 1.2 mm.
Follow the pattern as illustrated.
The sealing surfaces must be absolutely clean and free
from grease. Do not touch the surfaces after degreasing.
NOTE
Ensure that you apply sealing agent inside the screwholes,
but without allowing sealing agent into the crankcase. The
sealing agent may block channels and nozzles. This is par-
ticularly important to bear in mind around oil ways, where
the ow of oil to the air compressor or injection pump can
be blocked. Important! Assembly must be completed within
25 minutes of starting to apply the sealing agent.
NOTE

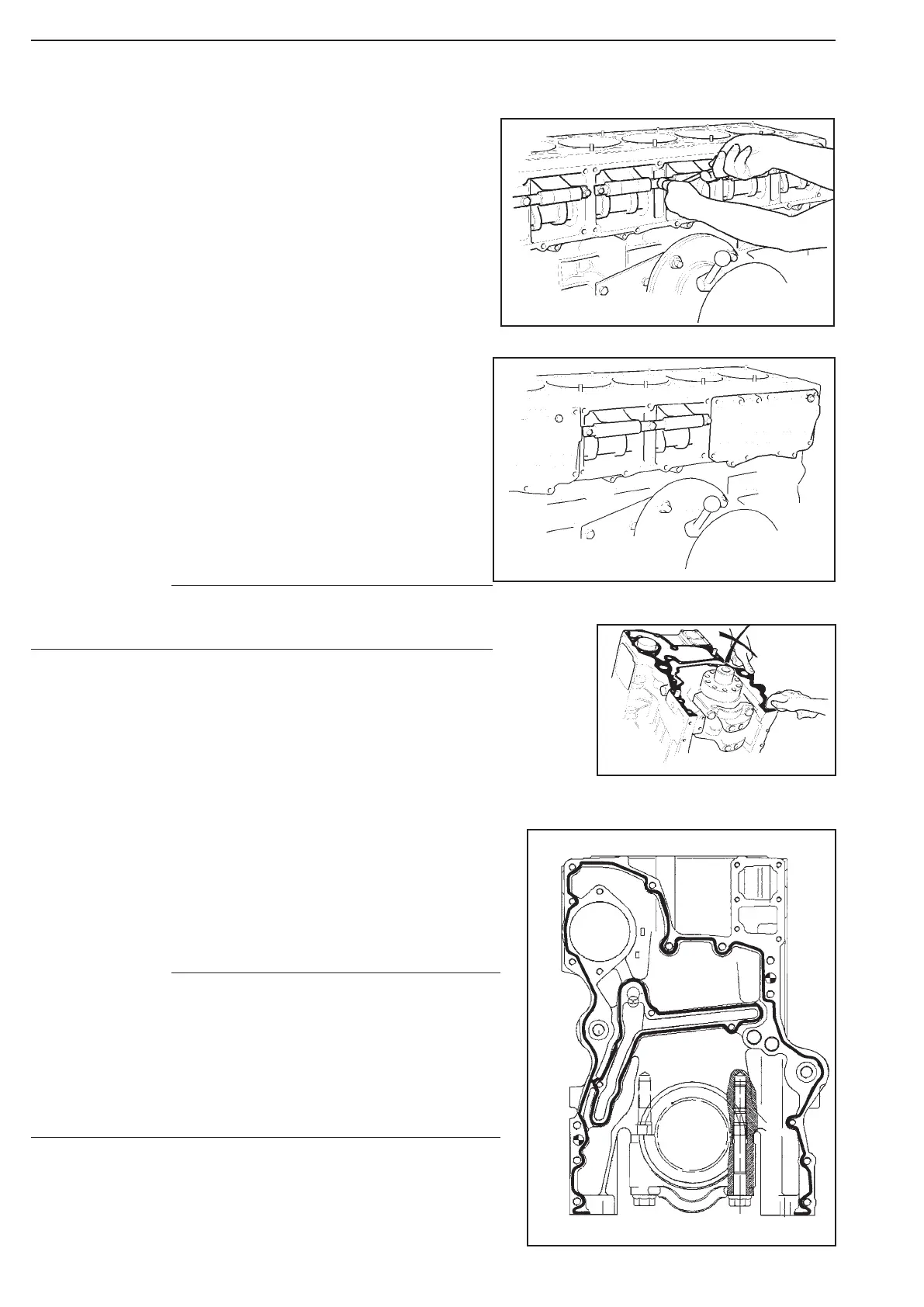

Figure 269
Figure 270
Figure 271
Figure 272
