3. Remove the 4 screws which hold the alternator together
4. Separate the alternator. The stator winding should remain in the
rear housing.
5. Remove the rotor from the rear housing as follows: Refit the
nut on the rotor shaft. Hold the rotor in the nut and gently tap all
around the housing until the rotor comes loose.
Make sure that you do not damage the stator winding and ro-
tor.
6. Clamp the rotor in the vice.
Use soft jaws on the vice so as not to damage the rotor.
Remove the bearing on the rotor using puller plate 587 517 and
bearing puller 587 518.
NOTE
CAUTION

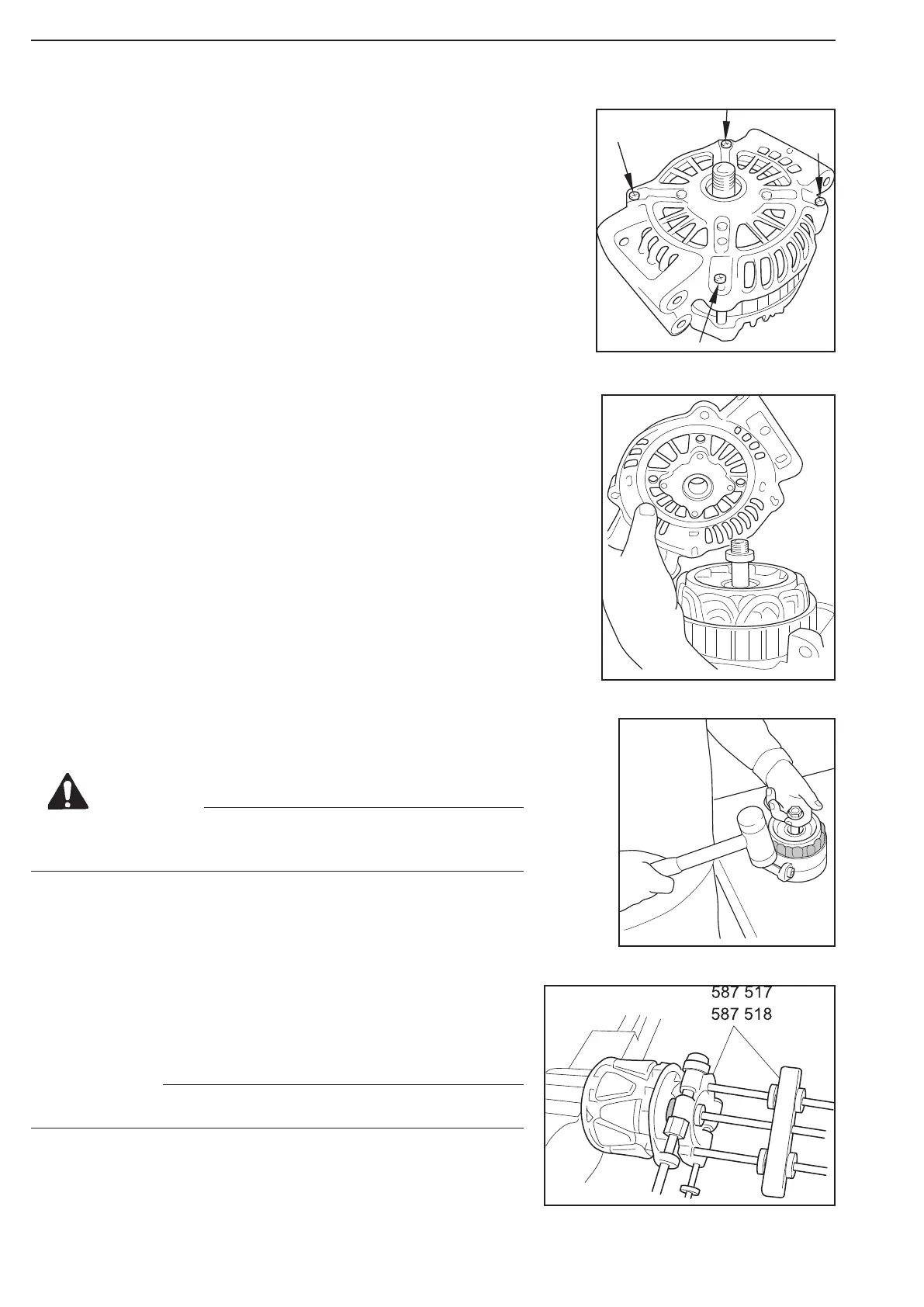

Figure 325
Figure 328
Figure 327
Figure 326
