TRANSMISSION
With the handle, pump and raise the cab.
When lower the cab, turn the direction valve to the down position and
with the handle lower the cab.
Disconnect all hydraulic hoses (12 hydraulic hoses) and cabin heating
hoses (02 heater hoses) between cabin / transmission and other frame
components.
Make sure that no electrical connectors from the rest of the truck is
connected with the transmission.
Lower the cabin and, from the left side over the front left wheel, discon-
nect the rod of the tilt cylinder cabin from the cabin.
Mark position of all hoses and electrical connectors.
Make sure you cover all open hydraulic ttings and
open edges on hoses.
CAUTION

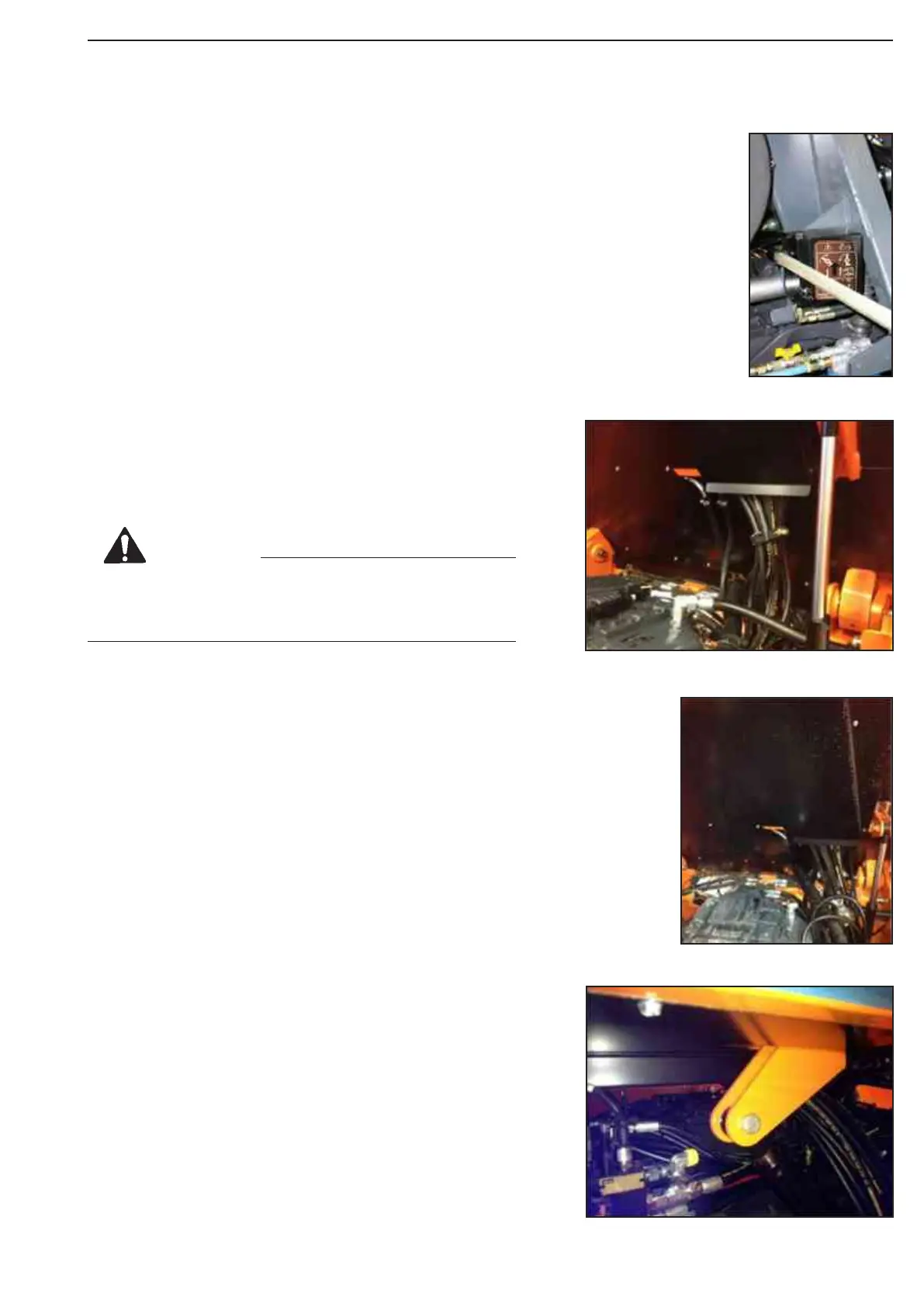

Figure 28
Figure 29
Figure 31
Figure 30
