SHOP MANUAL
TRANSMISSION
Ch 2 page 26 Ch 2 page 27
TRANSMISSION
See in the hydraulic chapter about the lling procedure.
Tilting the cab:
Open the bonnet and take away the cab bolt, left and right hand side.
M46
Torque on reassembly: 277Nm
Turn the direction valve on the pump to lifting up position.
Drain both hydraulic v reservoirs, see chapter 7 maintenance - 2000
hour service in the Operating & Maintenance Manual.
1 Main reservoir
2 Emergency steering reservoir
(Oil capacity approx. 190-200 l.)
1
2
Draining operation
NOTE

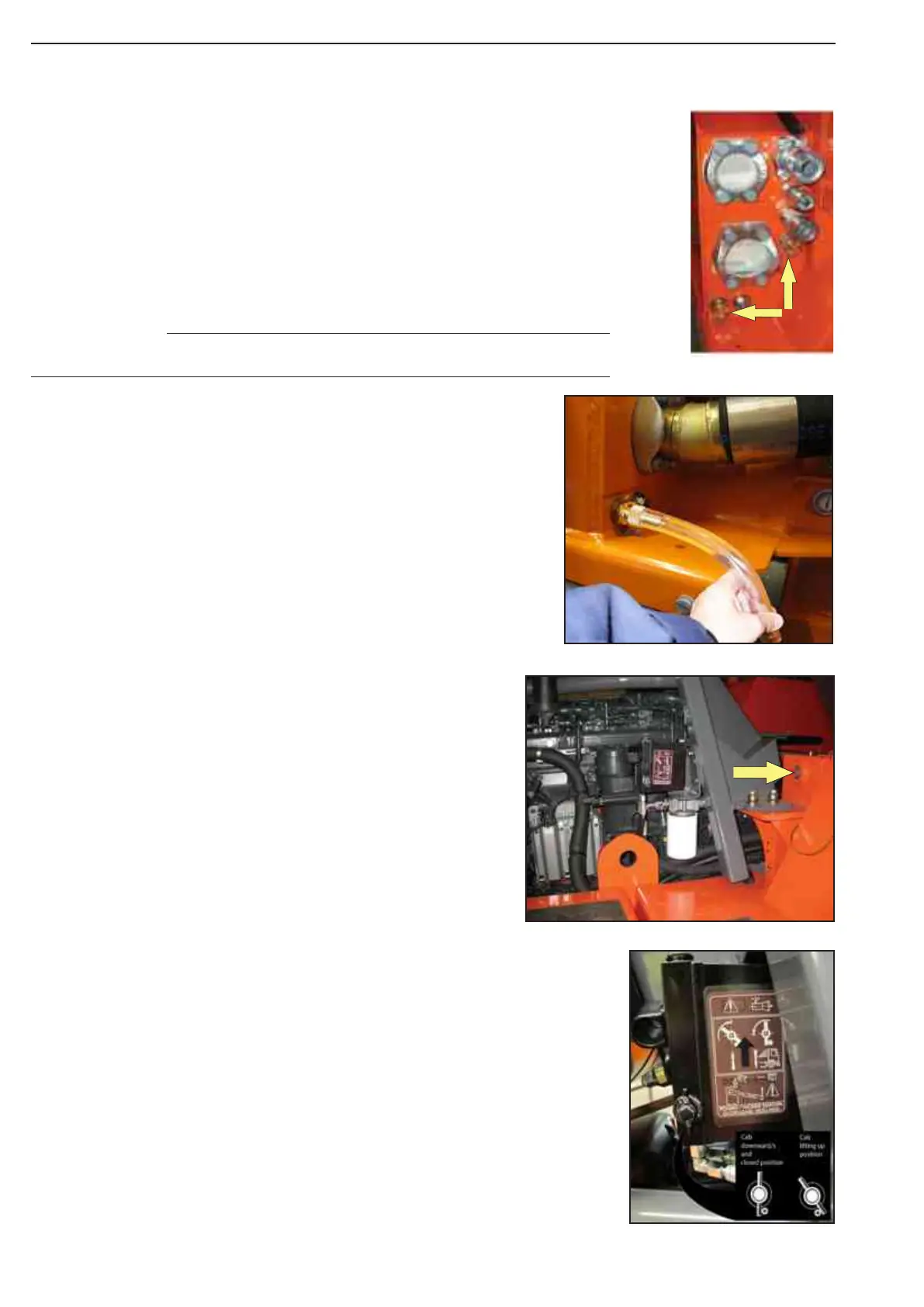

Figure 24
Figure 26
Figure 25
Figure 27
