SHOP MANUAL
TRANSMISSION
Ch 2 page 24 Ch 2 page 25
TRANSMISSION

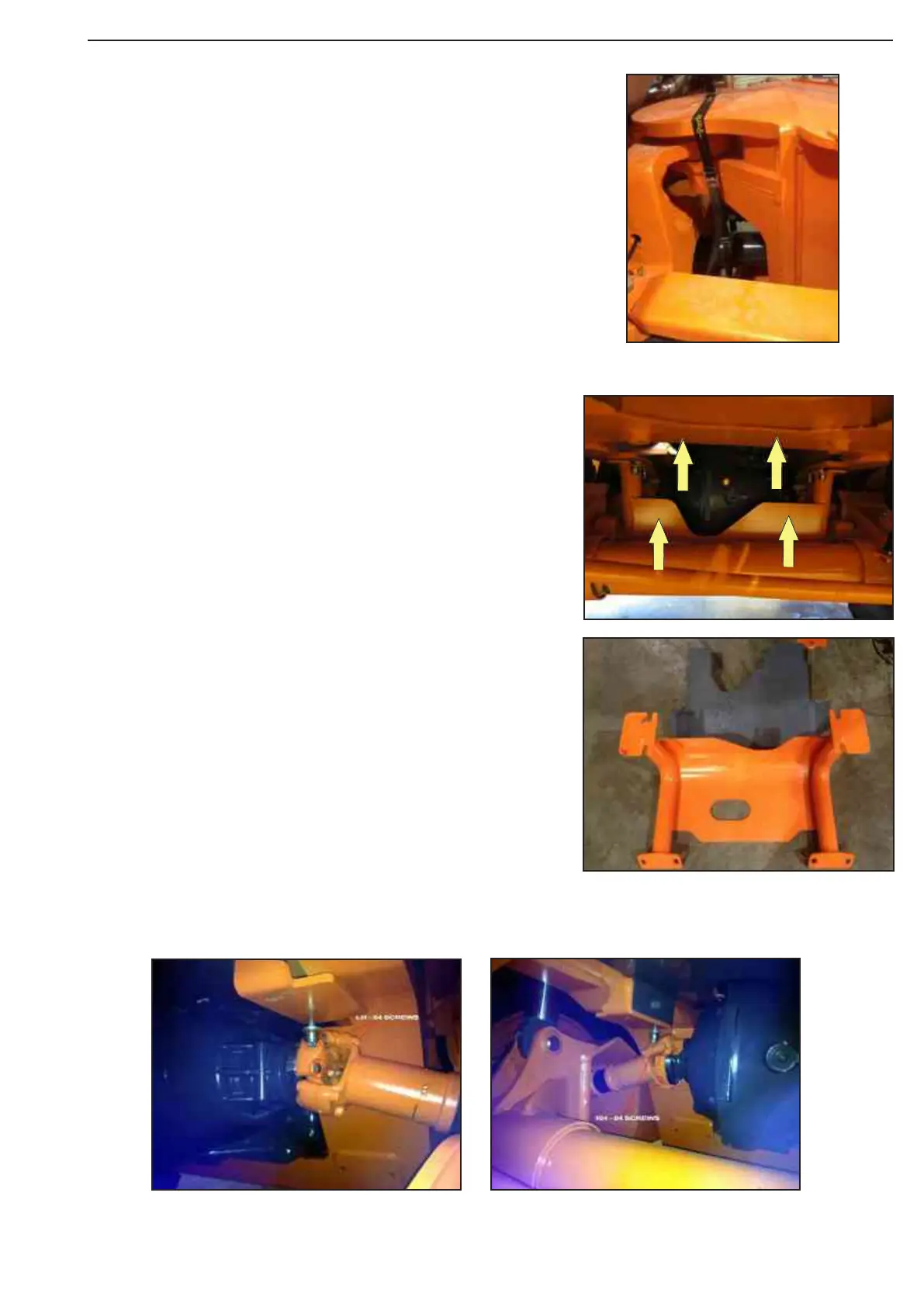

Disconnect the T/M power off / rear drive shaft joint (4 screws). Tie the
rear drive shaft on the frame (near the hinge point) to keep it suspended
Remove the transmission cover (8 screws) and the bottom guard (4
screws)
• When assembling, use Loctite 262 or Threebond
medium 1374 on thread.
• Tightening torque (
1
/
2
” x 2
1
/
4
” -10.9 UNF): 120 Nm.
Disassemble the 02 final power drive shaft joints. Turn the wheels to
reach the screws, if necessary.
Figure 19
Figure 20
Figure 21
Figure 23Figure 22
