SHOP MANUAL
TRANSMISSION
Ch 2 page 48 Ch 2 page 49
TRANSMISSION
Fit two adjusting screws and bring duct plate (1) into contact
position with the transmission housing.
(S) Adjusting screws MX504185
Fix duct plate / transmission housing bolted connection (1)
equallywith Torx screws (1).
Tightening torque (M8/10.9x35) MA = 23 Nm
(S) Socket wrench TX-40
Bring ErgoControl II unit (2) into contact position.
Fix control unit / duct plate bolted connection (1) equally with
Torx screws (1).
Tightening torque (M6/10.9x25) MA = 9.5 Nm
(S) Socket wrench TX-27
Close the lockings of wiring harness (2) (bayonet locking an-
dplug).
Fix the wiring harness (2) with clip (3) to the transmissionhous-
ing using cylindrical screws.
Tightening torque (M8/8.8x16) MA = 23 Nm
1
2
1
2
1
3

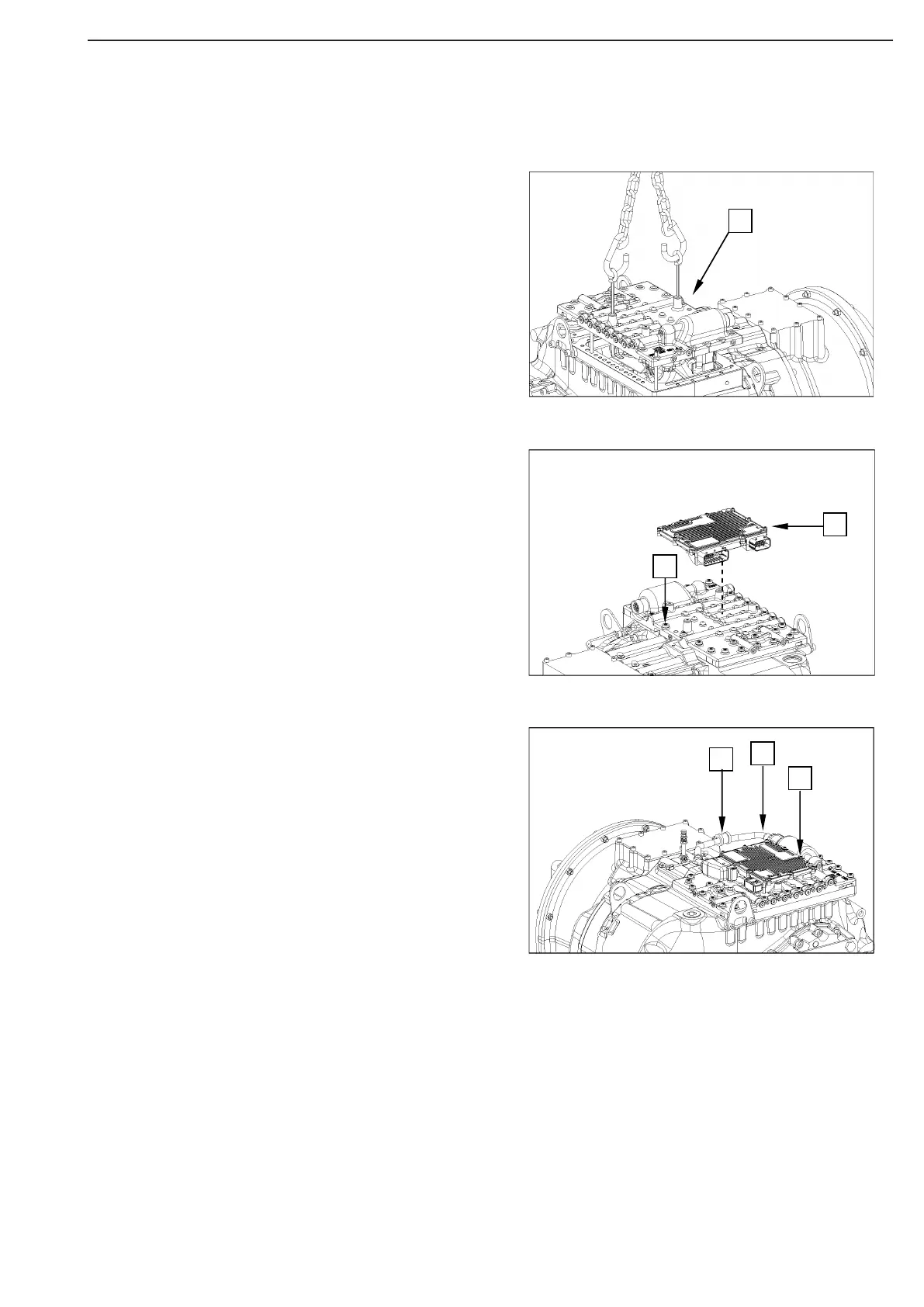

Figure 111
Figure 110
Figure 109
