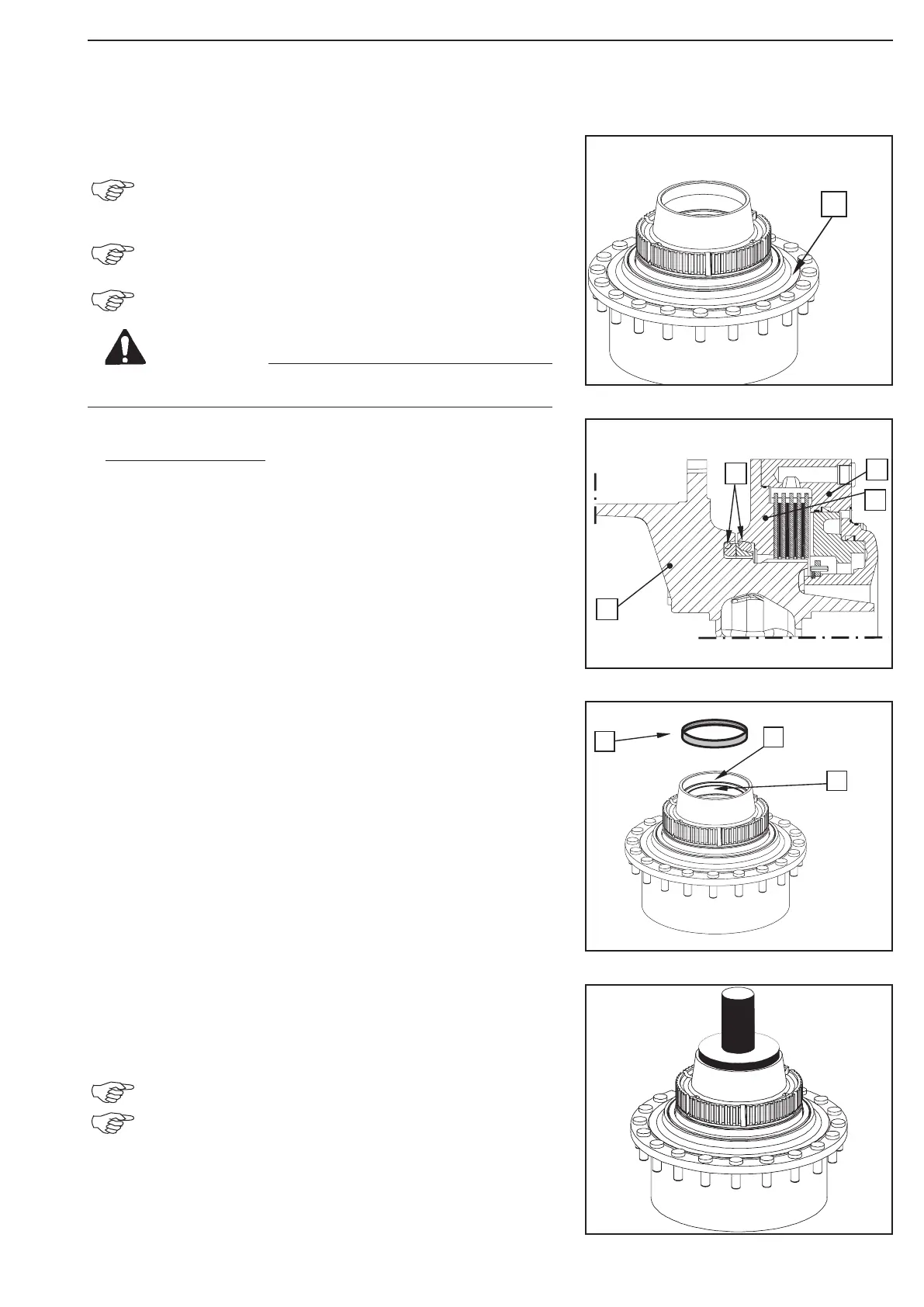

Thereupon snap new slide ring seal (1) into sealing ring holder.
Pay attention that sealing surface is in parallel to the
housing surface! The O-rings must be mounted evenly in
the locating hole and must not bulge out of the hole.
The surface of the slide ring seal may not have any
grooves, scratches or other kind of damage!
For the installation position of the slide ring seal please
refer to figure 94!
Legend to the sketch:
1 = Slide ring seal for hub/sealing holder
2 = Brake housing
3 = Sealing holder
4 = Hub
Roller bearing cpl. (1), ring (2) and shaft seal (3) into the hub.
Insert the shaft seal by means of the mounting tool into the hub.
(S) Mounting tool 505756
(S) Handle 504256
Wet outer diameter with spirit.
Grease sealing lips!
The slide ring seal is sharp edged (use protection gloves)!
CAUTION
Figure 96
Figure 95
Figure 94
Figure 93
