SHOP MANUAL
DRIVE LINE
Ch 3 page 38 Ch 3 page 39
DRIVE LINE
S
1

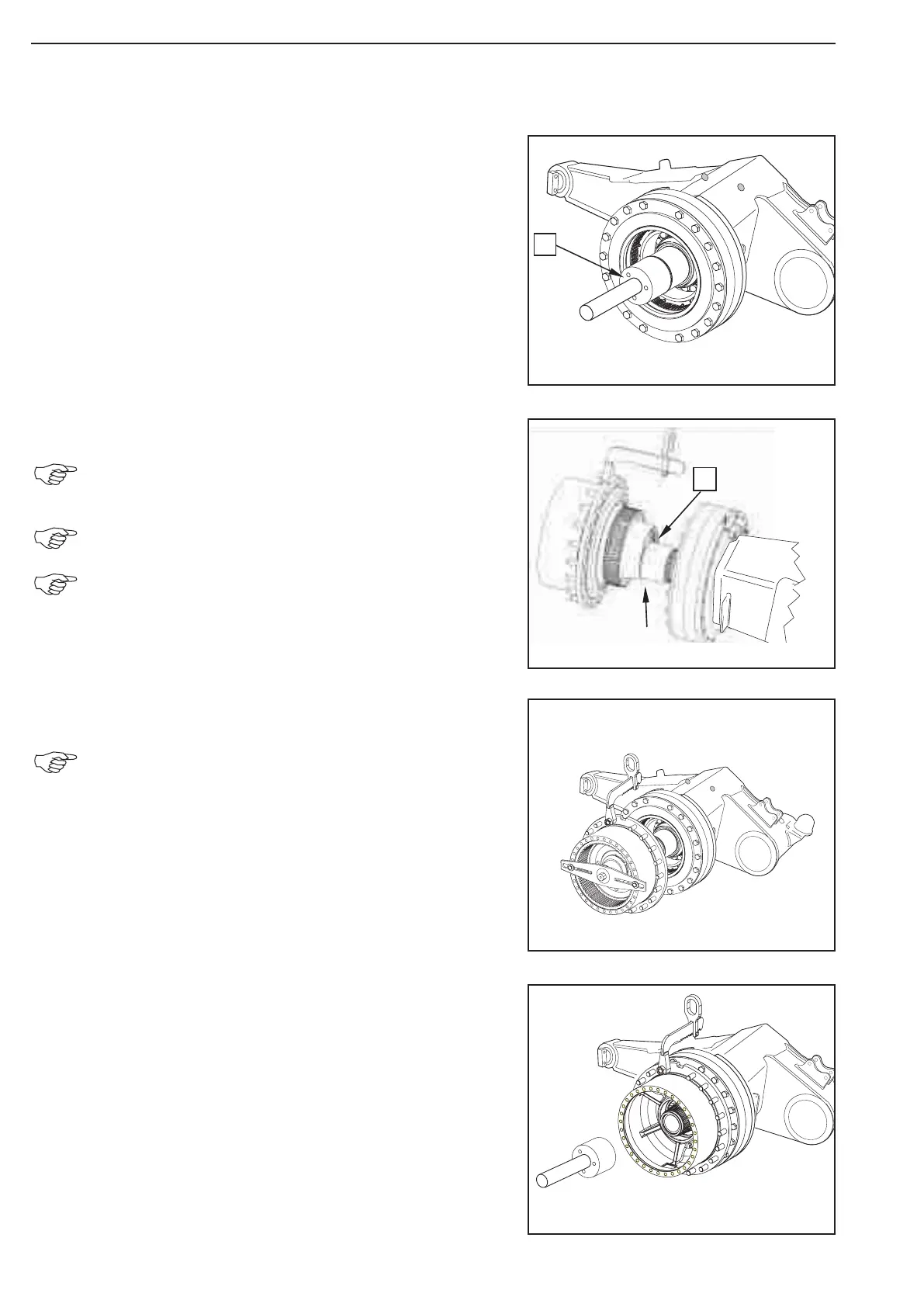

Mount inner installer (S) on hub carrier
(S) Inner installer 514666
Mount hub by means of a lifting tackle.
Careless handling might damage the shaft seal (1) of the
inner installer (see arrow).
Carefully instal the wheel head on the inner installer.
Before clamping the seal rings to installation dimension,
clean sliding surfaces and then apply an oil film (most
suitably by means of a suede cloth)!
Use centering bracket to center the hub (1) on the inner installer.
Mount hub in disc pack.
While mounting the hub rotate it in both directions
several times!
(S) Lifting tackle 514656
(S) Lifting chain 504198
(S) Centering bracket 505769
Push hub until contact is obtained, remove centering bracket and
inner installer.
Figure 100
Figure 99
Figure 98
Figure 97
