SHOP MANUAL
DRIVE LINE
Ch 3 page 42 Ch 3 page 43
DRIVE LINE
5
4
2
1

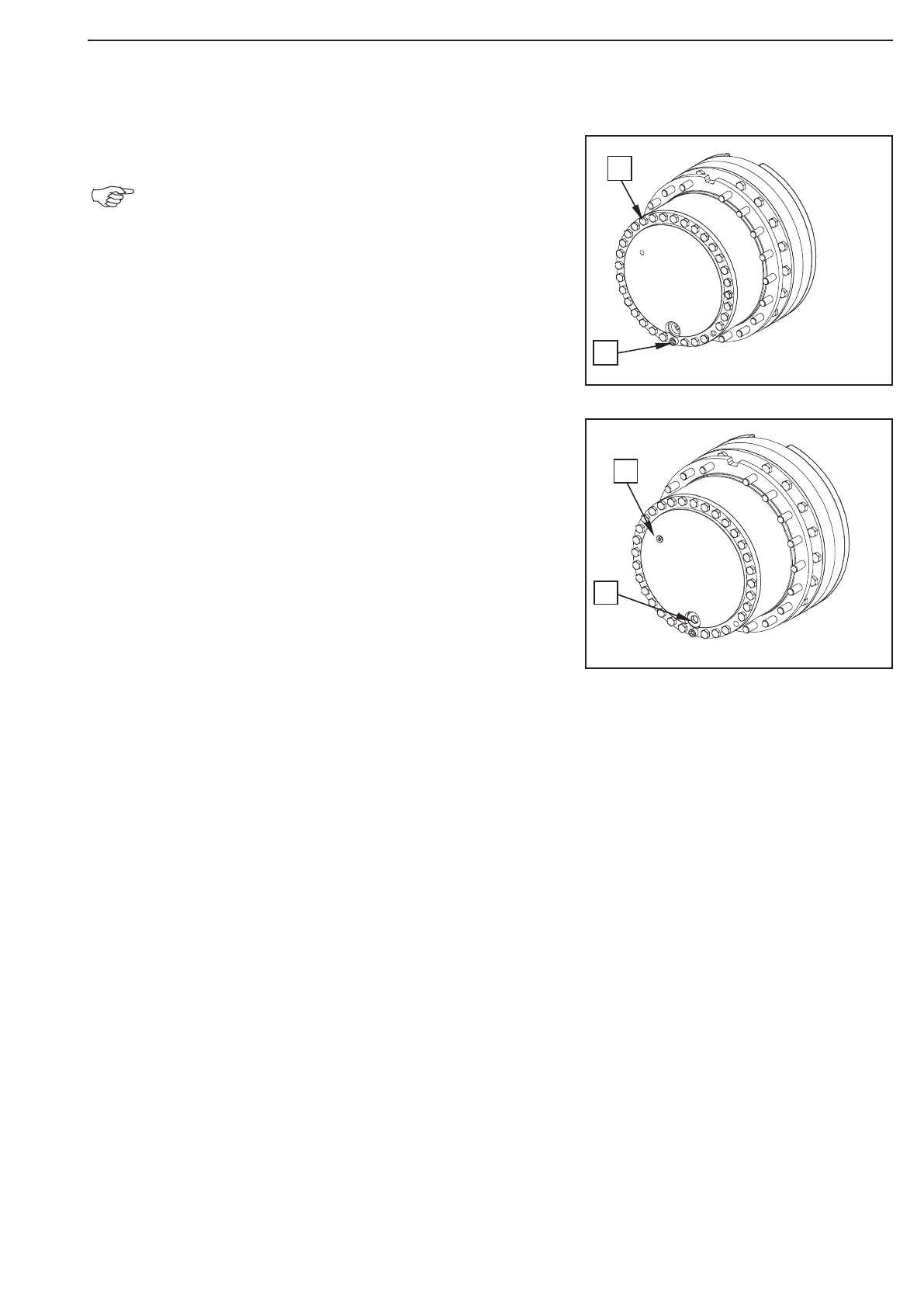

Attach the cap screw (5) in the through hole.
Wet the thread of the cap screw with sealing compound
(Loctite, Type No. 574)!
Then fasten the planet carrier by means of hexagon screws (4).
Tightening torque (M16/10.9) .................... MA = 280 Nm
Mount screw plugs (1) and (2) with new O-ring.
Tightening torque (M16x1.5) ………. M
A = 40 Nm
Tightening torque (M42x1.5) ………. MA = 150 Nm
Figure 118
Figure 117
