SHOP MANUAL
DRIVE LINE
Ch 3 page 56 Ch 3 page 57
DRIVE LINE

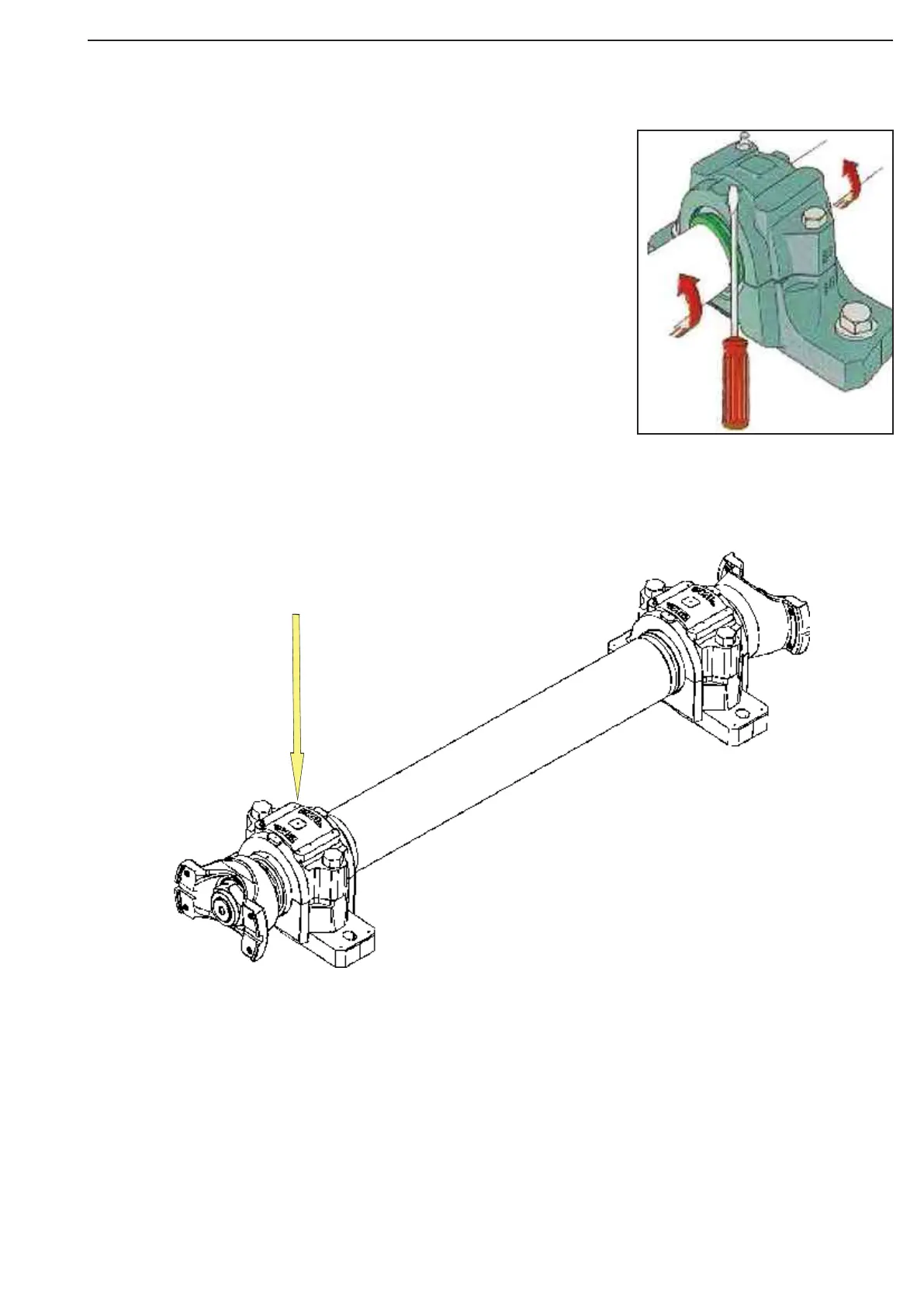

Finally, push the V-rings seal into their correct position.
This can be done using a screwdriver at the same time as the
shaft is turned.
Figure 158
Figure 157
“F”
On intermediate shafts with identical flanges, the bearing housing to the parking brake disc should have lock
ring installed and be marked with “F”.
Parking brake end
Articulation bearing end
