Carefully align the housing base. Vertical markings at the middle
of the side faces and ends of the housing base can facilitate this.
Then lightly tighten the attachment bolts.
The housing cap should be placed over the base and the cap
boltas (to join cap and base) tightened to the torque according to
the torque table. The cap and base of one housing are not inter-
changeable with those of other housings .
The cap and base should be checked to see that they bear the
same identiļ¬cation.
Check the alignment to minimise misalignment and fully tighten the
attachment bolts in the housing base with help of a torque wrench.
Recommended tightening are given in the torque table.
Coat teh V-rings counterfaces on the sealing washers with grease.

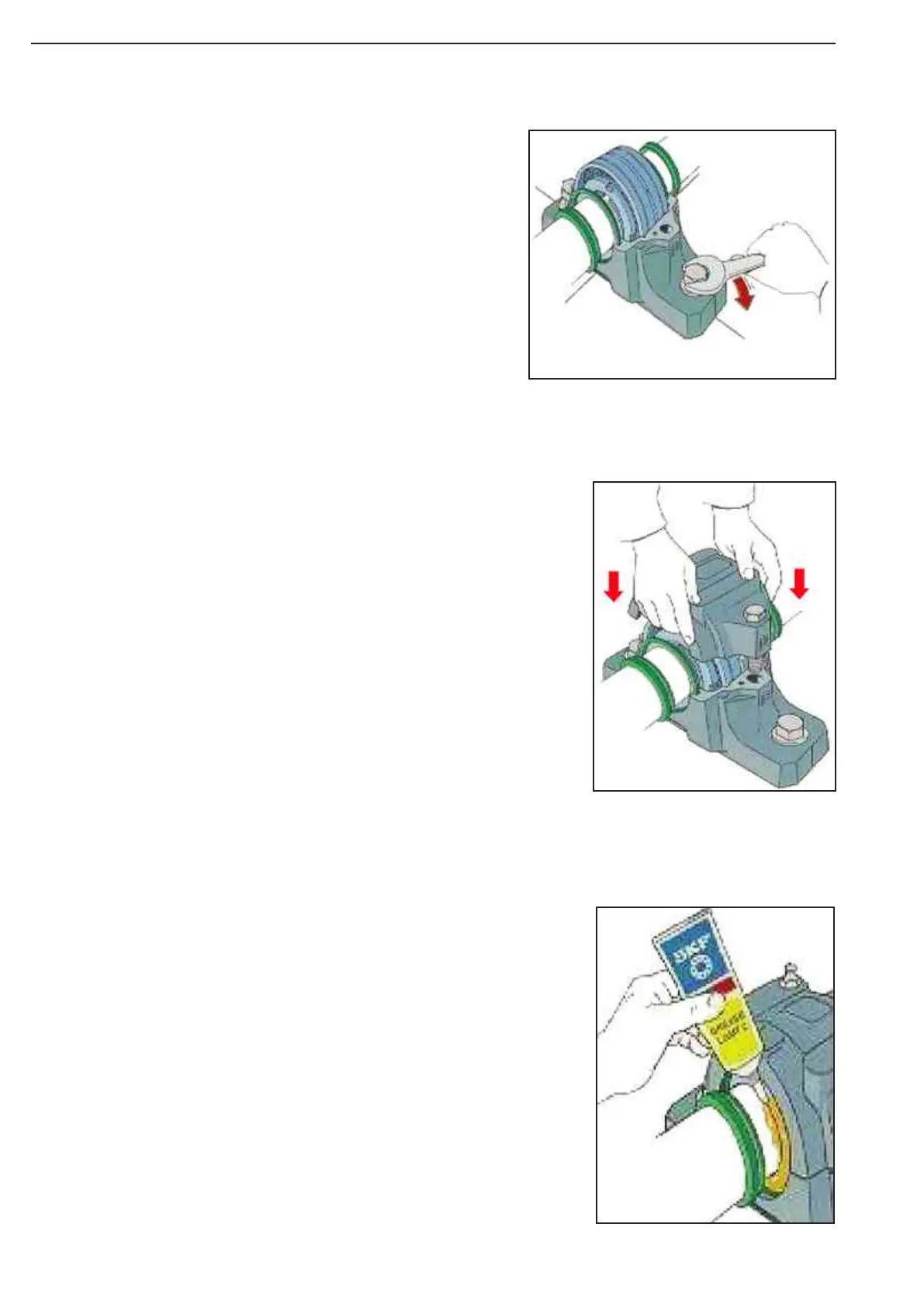

Figure 156
Figure 155
Figure 154
