SHOP MANUAL
DRIVE LINE
Ch 3 page 92 Ch 3 page 93
DRIVE LINE
Line up the disc and tighten castle nut.
Torque limit ............................... 1300 Nm
During the tightening, rotate the drive pinion several
times in both directions !
(S) Clamping yoke 509110
(S) Driver (steel cage) 509259
(S) Handle 504195
Press roller bearing against shoulder.
Check Bearing torque 1 ... 2 Nm !
In case of deviations from the required rolling
moment, correct with corresponding adjusting ring
(Figure 249), according to the following specification:
Torque too low - install thinner ring,
Torque too high - install thicker ring.
Now, loosen the castle nut again and pull off the input flange.
Press shaft seal, with the sealing lip facing the chamber, into the
sealing cap until contact is obtained.
Grease sealing lip !
According to the version different shaft seals can be
applied:
Outer diameter rubber-coated - wet with spirit;
Outer diameter metallic - wet with sealing com-
pound
(Loctite, No. 574)!
(S) Driver (rubber-coated) 509109
(S) Handle 504195

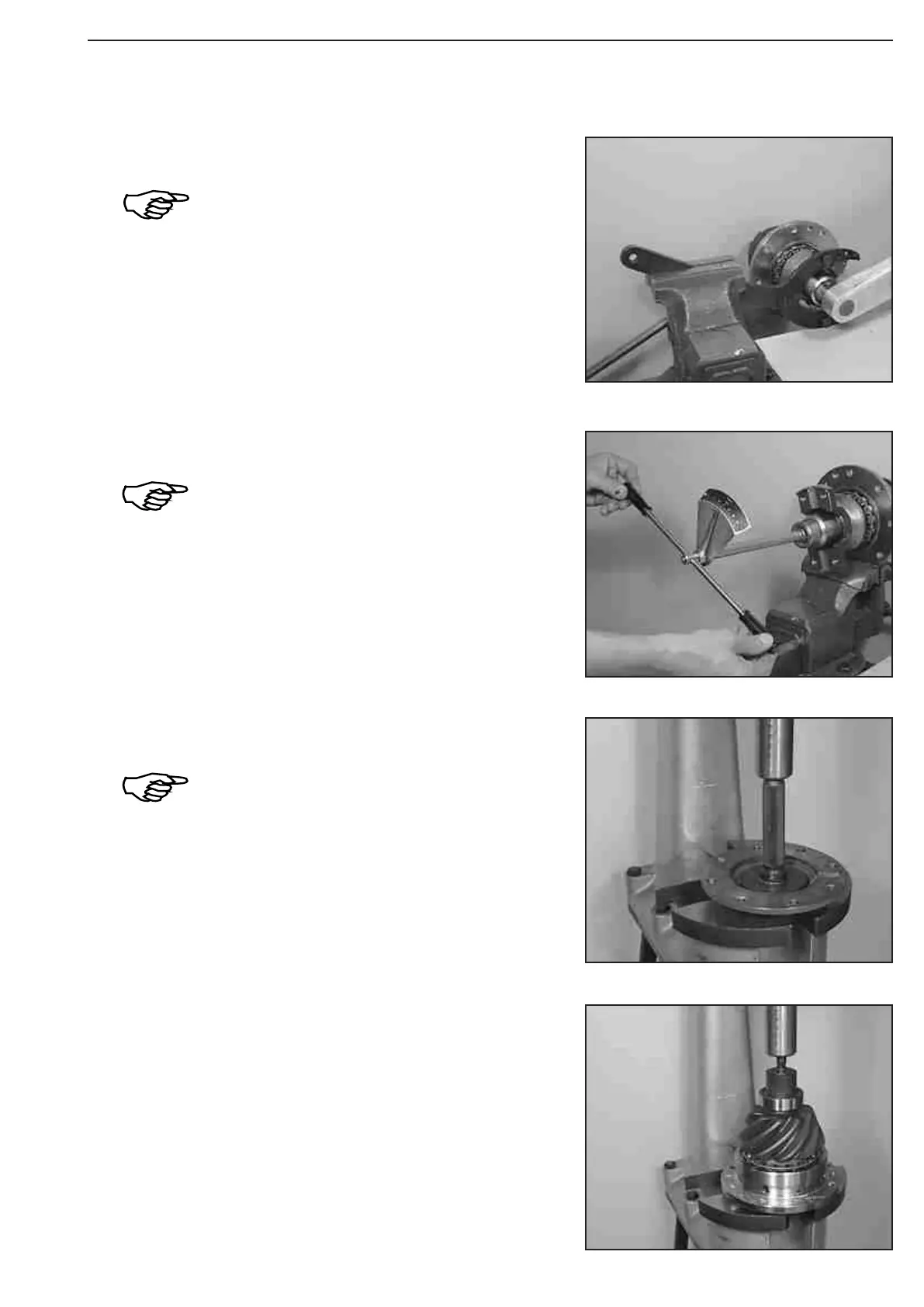

Figure 256
Figure 255
Figure 254
Figure 253
